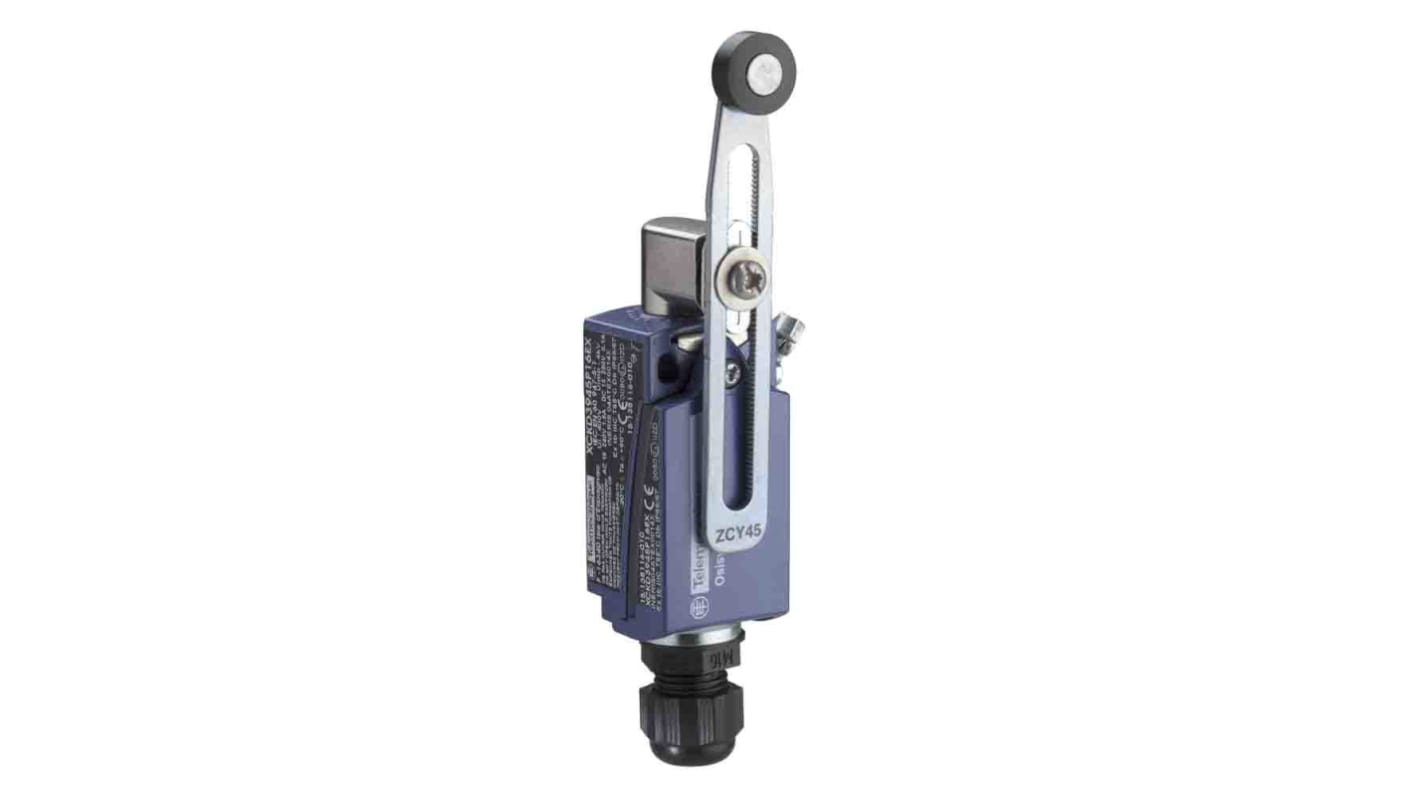

Telemecanique Sensors OsiSense ATEX D Series Roller Lever Limit Switch, IP66, IP67, Zinc Alloy Housing, 240V ac, 1.5A
- RS庫存編號:
- 221-1890
- 製造零件編號:
- XCKD3945P16EX
- 製造商:
- Telemecanique Sensors
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 221-1890
- 製造零件編號:
- XCKD3945P16EX
- 製造商:
- Telemecanique Sensors
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Telemecanique Sensors | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| IP Rating | IP66, IP67 | |
| Housing Material | Zinc Alloy | |
| Contact Type | 2 NC + 1 NO | |
| Switching Current | 1.5A | |
| Series | OsiSense ATEX D | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 65mm | |
| Standards/Approvals | EN/IEC 60079-31 EN/IEC 60079-0 | |
| Width | 31mm | |
| Depth | 30mm | |
| Hazardous Area Certification | INERIS 04ATEX0014X IEC-Ex INE 17.0020X | |
| Mechanical Life | 10000000Cycles | |
| Mounting Orientation | Multi Directional | |
| 選取全部 | ||
|---|---|---|
品牌 Telemecanique Sensors | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
IP Rating IP66, IP67 | ||
Housing Material Zinc Alloy | ||
Contact Type 2 NC + 1 NO | ||
Switching Current 1.5A | ||
Series OsiSense ATEX D | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Length 65mm | ||
Standards/Approvals EN/IEC 60079-31 EN/IEC 60079-0 | ||
Width 31mm | ||
Depth 30mm | ||
Hazardous Area Certification INERIS 04ATEX0014X IEC-Ex INE 17.0020X | ||
Mechanical Life 10000000Cycles | ||
Mounting Orientation Multi Directional | ||
- COO (Country of Origin):
- FR
The Schneider XCKD limit switch, with roller lever plunger, has contacts type and composition of 2 NC + 1 NO. It is used for medium duty applications.
IP degree of protection: IP66 conforming to EN/IEC 60529
IK degree of protection: IK05 conforming to EN 50102
