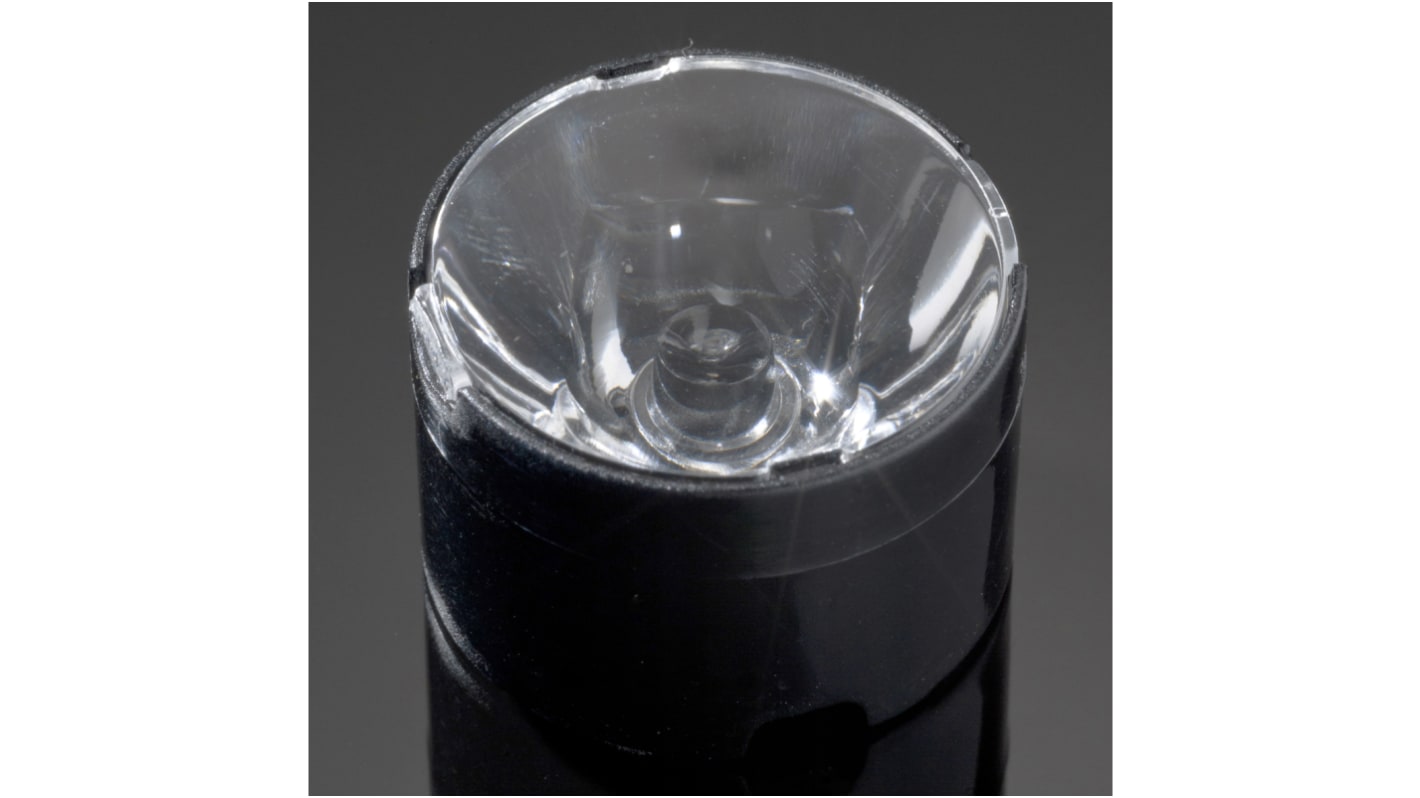

    Ledil FA10653_LC1-RS, Leila Series LED Lens, 6 ° Spot Beam

    RS庫存編號:
    168-6764
    製造零件編號:
    FA10653_LC1-RS
    製造商:
    Ledil
    Ledil

    此圖片僅供參考,請參閲產品詳細資訊及規格

    查看所有LED Lenses & Reflectors
    當前暫無庫存,可於27/09/2022發貨,6 工作日送達。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個 (以毎盒:144)

    TWD85.80

    (不含稅)

    TWD90.09

    (含稅)

    單位Per unitPer Box*
    144 - 144TWD85.80TWD12,355.20
    288 +TWD83.90TWD12,081.60
    * 參考價格
    RS庫存編號:
    168-6764
    製造零件編號:
    FA10653_LC1-RS
    製造商:
    Ledil
    COO (Country of Origin):
    FI

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    FI

    產品詳細資訊

    LEDiL LEILA Series LED Lenses


    The LEILA series from LEDil, are a family of round LED lens assemblies with a black or white PC holder. This range is designed for use with a single LED and come in a wide variety of options including clear or diffused. They also offer a range of round beam angles from a spot to extra wide, and even an oval and rectangular beam option. LEILA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
    Made using an optical grade PMMA, the LEILA lenses offer a high UV and temperature resistance.
    LEILA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.


    Note

    The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.


    LEDiL Single LED Lenses


    規格

    屬性
    SeriesLeila
    Lens ShapeRound
    Number of LEDs Per Lens1
    Emission PatternSpot
    Viewing Angle6 °
    Affixing MethodAdhesive Tape
    For Use WithCree XR-C, Cree XR-E
    Dimensions21.6 (Dia.) x 16.5mm
    Clear or DiffusedClear
    Diameter21.6mm
    Height16.5mm
    Kit ContentsHolder, Lens
