    BK Precision BK878B Handheld LCR Meter 20mF, 10 MΩ, 1000H

    RS庫存編號:
    878-2189
    製造零件編號:
    BK878B
    製造商:
    BK Precision
    BK Precision
    查看所有LCR Meters
    6 "將在 2 工作日發貨 (本地庫存) "
    3 在6 工作日內發貨 (海外庫存)
    4 在6 工作日內發貨 (海外庫存)
    Add to Basket
    單位

    已增加

    單價(不含稅) 個

    TWD10,929.00

    (不含稅)

    TWD11,475.45

    (含稅)

    單位Per unit
    1 +TWD10,929.00
    RS庫存編號:
    878-2189
    製造零件編號:
    BK878B
    製造商:
    BK Precision

    不相容

    COO (Country of Origin):
    CH

    法例與合規

    不相容

    COO (Country of Origin):
    CH

    產品詳細資訊

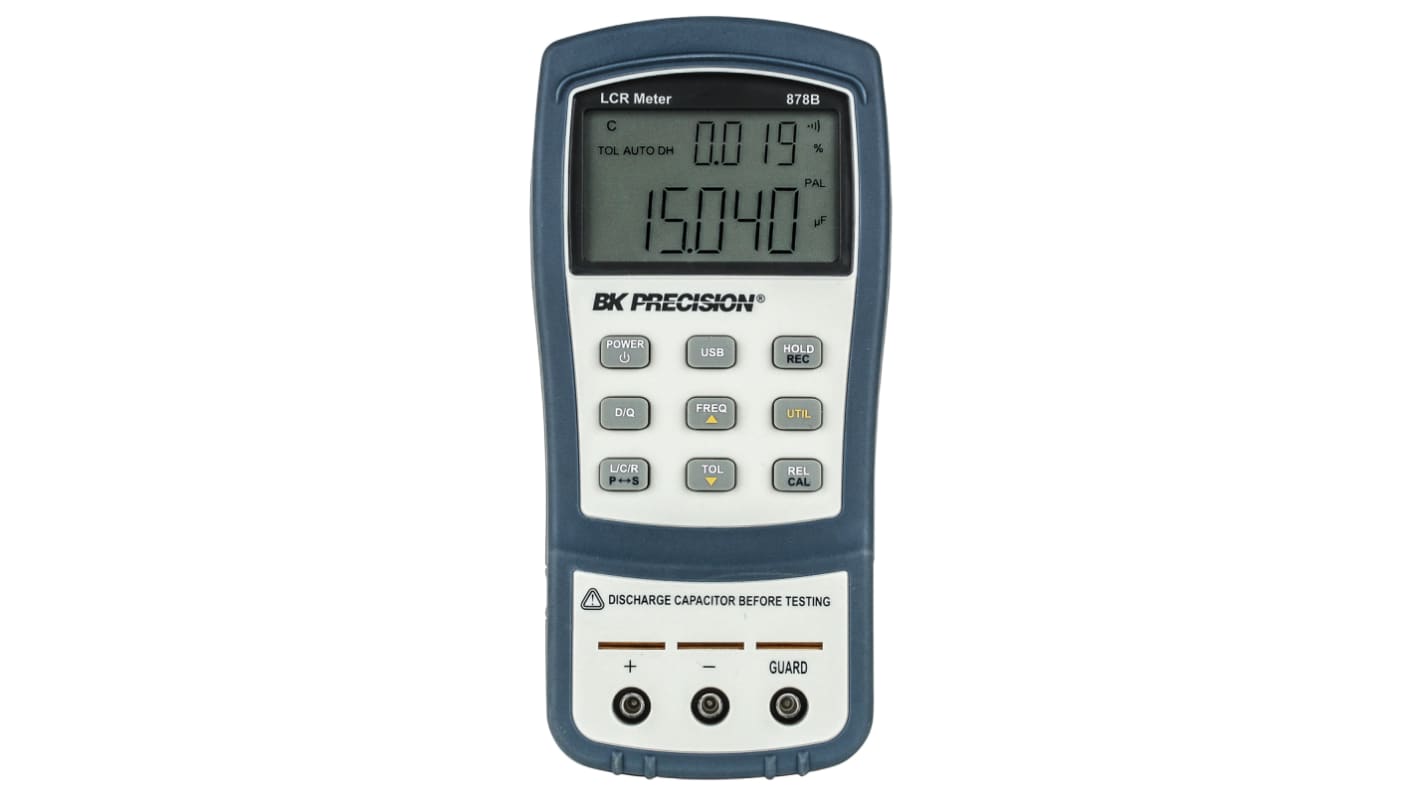

    B&K Precision 878B and 879B 40,000 Count Dual Display Handheld LCR Meters


    B&K Precision meter 878B ( 878-2189 ) and 879B ( 878-2198 ) are handheld LCR meters which measure inductance, capacitance and resistance quickly and precisely. The 879B can also calculate impedance, Theta and ESR. which is a feature typically found in bench LCR meters only. Measurement data can be continuously transferred to a PC using the mini USB interface. Featuring a tilt stand and dual display, it offers flexibility for viewing and operating, while an over-mold rubber case ensures durability in harsh industrial environments. Also includes banana to alligator test leads, 9V battery, mini USB interface cable, manual, and AC adapter.

    Features and Benefits:


    • 40,000 counts resolution on primary and 10,000 counts resolution on secondary display
    • Automatic calculation of secondary parameters D, Q, Ɵ, ESR (Ɵ/ESR for 879B only)
    • 0.5% basic accuracy
    • Fast auto range design for rapid, easy component measurements
    • Relative mode
    • Data Hold and Min/Max/Average recording
    • USB (Virtual COM) interface
    • SCPI compliant commands for remote communication
    • Selectable auto-power-off options

    Supplied with

    Banana to alligator test leads, 9V battery, mini USB interface cable, manual, AC adapter (879B only)

    規格

    屬性
    Maximum Capacitance Measurement20mF
    Maximum Resistance Measurement10 MΩ
    Maximum Inductance Measurement1000H
    Battery Life16 h
    Maximum Test Frequency1kHz
    Battery Type9V
    Bench/HandheldHandheld
    Display TypeLCD
    Power SourceBattery
    Dimensions190 x 90 x 41mm
    Weight330g
    Height41mm
    Length190mm
    Maximum Operating Temperature+40°C
    Minimum Operating Temperature0°C
    Model Number pBK878B
    Width90mm
