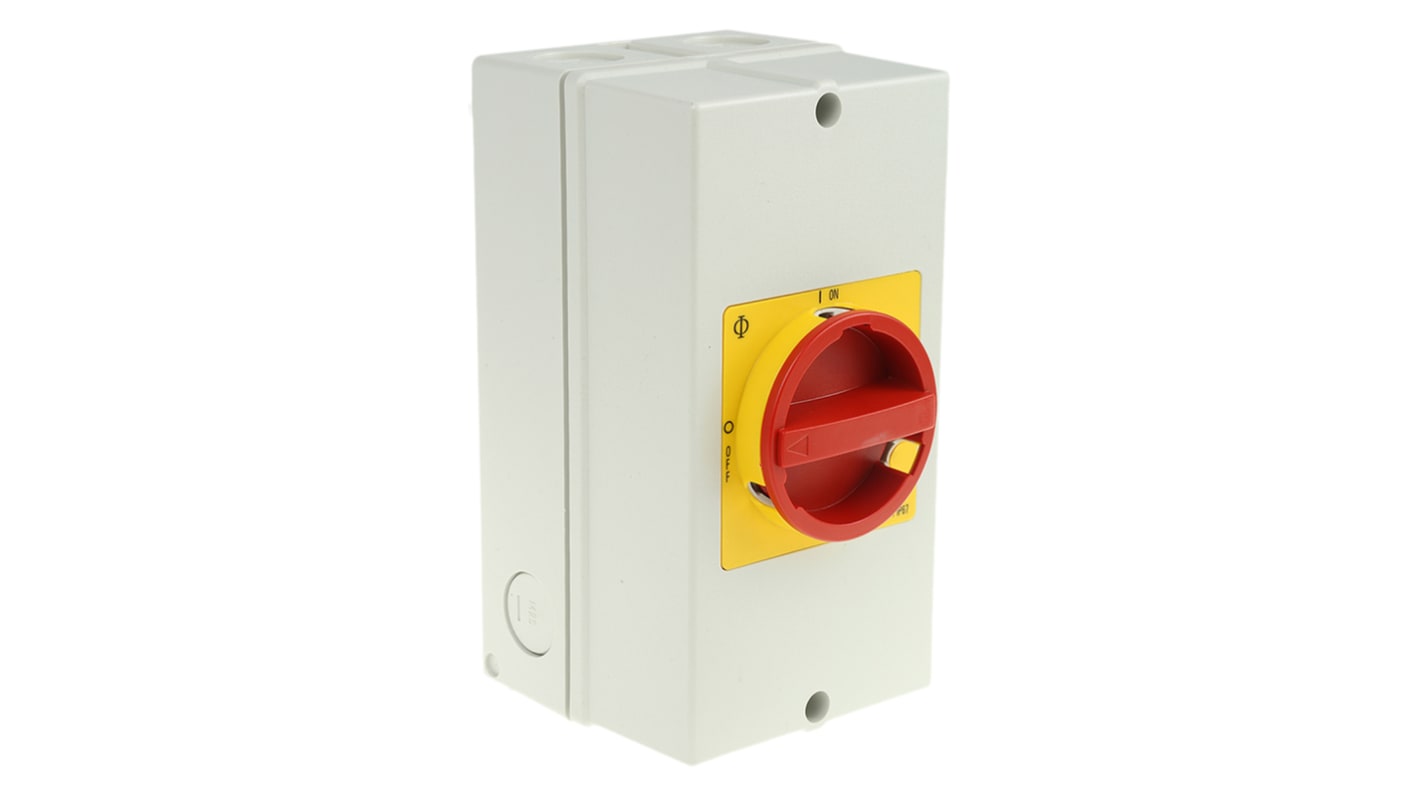

Kraus & Naimer 3-Pole Surface Isolator Switch -, IP66, IP67, 63A, 22 kW
- RS庫存編號:
- 381-3629
- 製造零件編號:
- KG64.T203/GBA283.*KL1V
- 製造商:
- Kraus & Naimer
小計（1 件）*
TWD2,763.00
(不含稅)
TWD2,901.15
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 19 件準備從其他地點送貨
- 加上 21 件從 2026年9月21日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD2,763.00 |
* 參考價格
- RS庫存編號:
- 381-3629
- 製造零件編號:
- KG64.T203/GBA283.*KL1V
- 製造商:
- Kraus & Naimer
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Kraus & Naimer | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Surface | |
| IP Rating | IP66, IP67 | |
| Electrical Phase | 3 | |
| Handle Colour | Yellow, Red | |
| Series | KG | |
| Auxiliary Contacts Available | No | |
| Terminal Type | Wire | |
| Switching Current | 63A | |
| Padlock Compatibility | No | |
| Switching Power | 22kW | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | 55°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CCC, CSA, UR | |
| Hazardous Area Certification | No | |
| Length | 190mm | |
| Depth | 110mm | |
| Width | 100mm | |
| 選取全部 | ||
|---|---|---|
品牌 Kraus & Naimer | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Surface | ||
IP Rating IP66, IP67 | ||
Electrical Phase 3 | ||
Handle Colour Yellow, Red | ||
Series KG | ||
Auxiliary Contacts Available No | ||
Terminal Type Wire | ||
Switching Current 63A | ||
Padlock Compatibility No | ||
Switching Power 22kW | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature 55°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CCC, CSA, UR | ||
Hazardous Area Certification No | ||
Length 190mm | ||
Depth 110mm | ||
Width 100mm | ||
- COO (Country of Origin):
- DE
Polycarbonate Enclosed Starter
High impact grey polycarbonate enclosure, UV stabilised to IP66/67
Low profile red/yellow operating handle integral with enclosure cover
Lockable with up to three padlocks in the OFF position; lid interlocked in the ON position
Earth terminal included
Nominal switching voltage 690 V
Note
Stated motor rating, Util. Cat. AC23A/AC3 is for a 3 phase 380/440 V supply.
Standards
EN60947, VDE 0660, EN 60204
