Megger MIT400 2 Insulation Tester, 10V Min, 1000V Max, 200GΩ Max, CAT IV
- RS庫存編號:
- 921-4517
- Distrelec 貨號:
- 300-50-152
- 製造零件編號:
- 1004-731
- 製造商:
- Megger
小計(1 件)*
TWD21,445.00
(不含稅)
TWD22,517.25
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 15 件從 2026年1月05日 起發貨
- 加上 50 件從 2026年1月08日 起發貨
- 加上 50 件從 2026年1月22日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD21,445.00 |
* 參考價格
- RS庫存編號:
- 921-4517
- Distrelec 貨號:
- 300-50-152
- 製造零件編號:
- 1004-731
- 製造商:
- Megger
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Megger | |
| Model Number p | MIT400 2 | |
| Tester Type | Insulation Tester | |
| Maximum Test Voltage | 1000V | |
| Minimum Test Voltage | 10V | |
| Maximum Insulation Resistance Measurement | 200GΩ | |
| Display Type | Analogue, Dual Digital | |
| Test Current | 205mA | |
| Power Source | Battery | |
| Battery Life | 2200 (OFF) Test @ 55 s, 2200 (ON) Test @ 5 s | |
| Battery Type | Alkaline | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Safety Category | CAT IV 600V | |
| Safety Category Voltage | 600V | |
| Safety Category Level | CAT IV | |
| Width | 50mm | |
| Length | 92mm | |
| Weight | 775g | |
| Height | 220mm | |
| Dimensions | 92 x 50 x 220mm | |
| 選取全部 | ||
|---|---|---|
品牌 Megger | ||
Model Number p MIT400 2 | ||
Tester Type Insulation Tester | ||
Maximum Test Voltage 1000V | ||
Minimum Test Voltage 10V | ||
Maximum Insulation Resistance Measurement 200GΩ | ||
Display Type Analogue, Dual Digital | ||
Test Current 205mA | ||
Power Source Battery | ||
Battery Life 2200 (OFF) Test @ 55 s, 2200 (ON) Test @ 5 s | ||
Battery Type Alkaline | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Safety Category CAT IV 600V | ||
Safety Category Voltage 600V | ||
Safety Category Level CAT IV | ||
Width 50mm | ||
Length 92mm | ||
Weight 775g | ||
Height 220mm | ||
Dimensions 92 x 50 x 220mm | ||
- COO (Country of Origin):
- GB

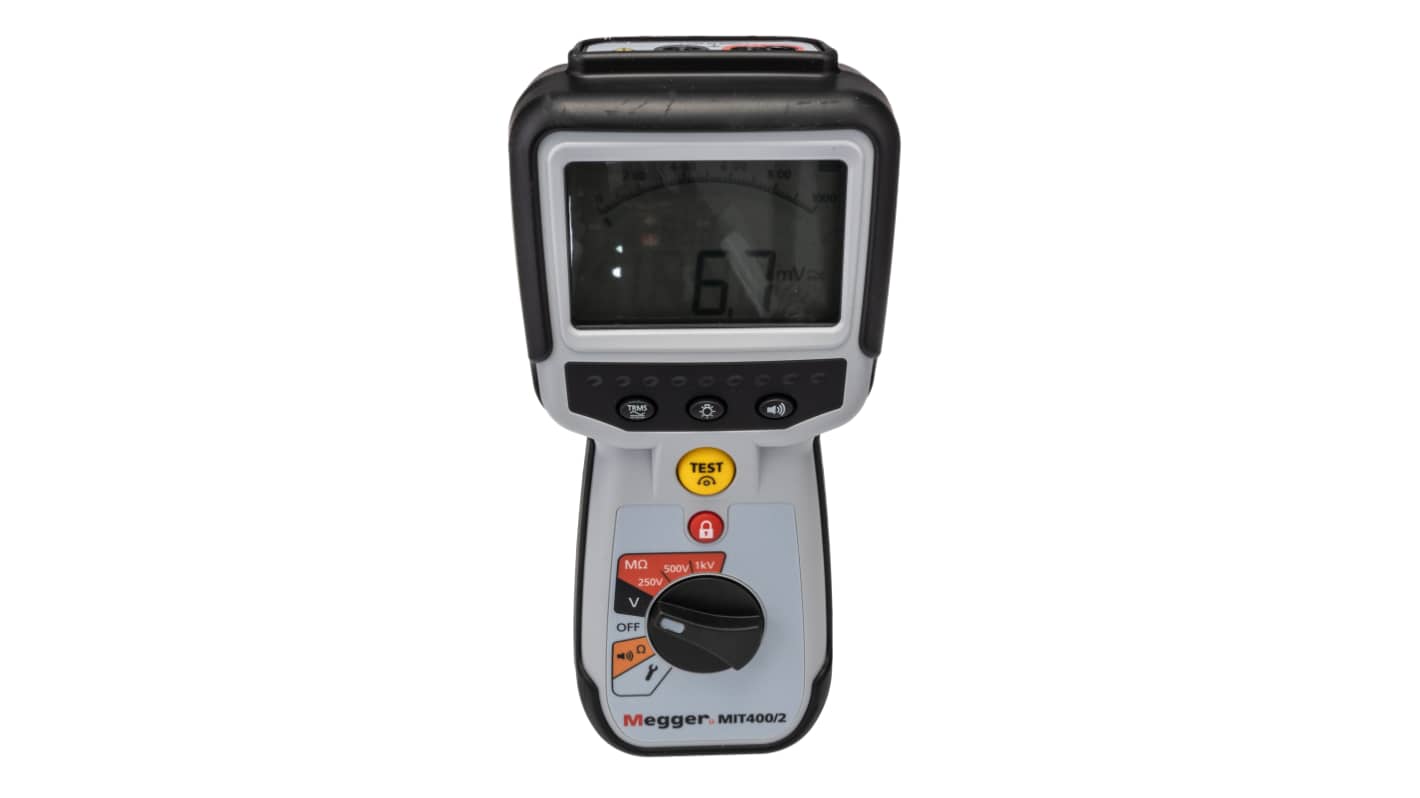

Megger Insulation Tester, Battery-Powered, 600g Weight - MIT400/2 Series - 1004-731
To check for stray currents before your equipment takes a hit, reach for this insulation tester from Megger. The handy instrument is just what you need in your toolbox of tricks to test the integrity of your equipment's insulation and prevent electrical hazards. A wide test voltage range between 10mV and 600V makes this versatile device compatible with commonly used cables and equipment. As it's powered by six AA batteries, there's no need for a mains connection, so it's a practical option when you're on the go.
Features & Benefits
• Compact dimensions of 228 (L) x 108 (W) x 63mm (D) make it easy to handle and carry with you
• Tough modified ABS housing for resistance to impact and wear
• Dual digital display for detailed results
• Test lock function offers continuous insulation testing for added convenience
• Tough modified ABS housing for resistance to impact and wear
• Dual digital display for detailed results
• Test lock function offers continuous insulation testing for added convenience
Applications
• Manufacturing and production lines
• Battery-powered lifting equipment
• Commercial avionics
• Military and marine communications
• Battery-powered lifting equipment
• Commercial avionics
• Military and marine communications
Does this insulation tester come with test leads?
Yes, the instrument is supplied with flexible silicone test leads, including probes and clips. This means you can get to work straight away.
