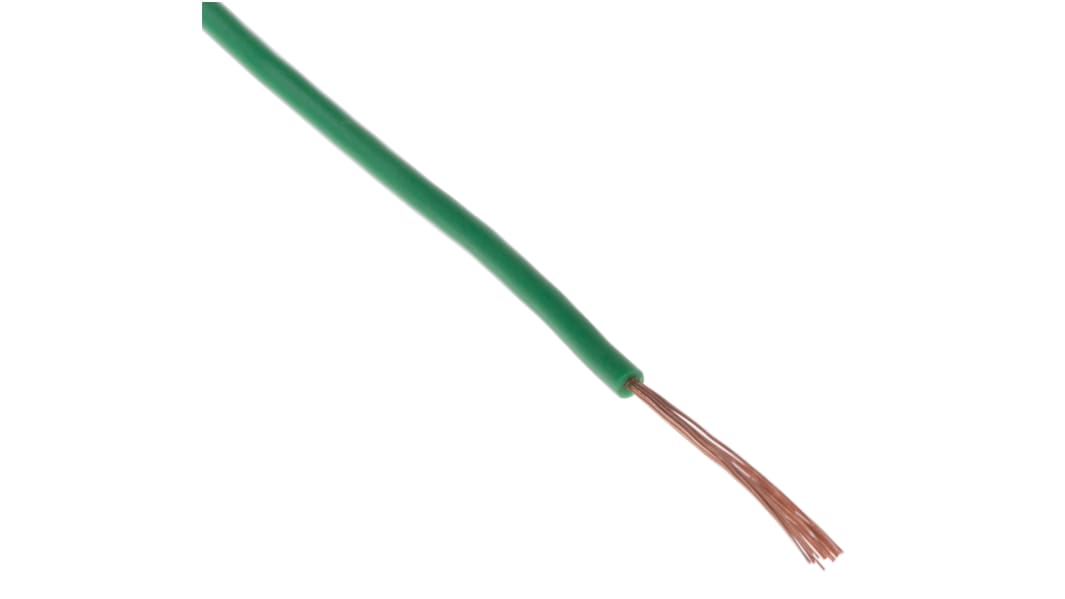

    Staubli Green 0.1 mm² Equipment Wire, 27 AWG, 26/0.07 mm, 100m, PVC Insulation

    Staubli
    RS庫存編號:
    285-7707
    製造商:
    Staubli
    查看所有Hook Up Wire
    4 現貨庫存,可於6工作日發貨。
    Add to Basket
    Reel(s)

    已增加

    單價(不含稅) 毎卷:100 米

    TWD1,975.00

    (不含稅)

    TWD2,073.75

    (含稅)

    Reel(s)Per ReelPer Metre*
    1 - 49TWD1,975.00TWD19.75
    50 +TWD1,878.00TWD18.78
    * 參考價格
    RS庫存編號:
    285-7707
    製造商:
    Staubli

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    DE

    產品詳細資訊

    RS Pro Hookup & Equipment Wire


    Our RS Pro equipment wire is made up from polyvinylchloride, especially designed for electro-technical application, for example internal wiring onto moving parts with average mechanical use, installation and equipment and car construction. This PVC compound shows good mechanical properties. It is completely flexible at temperatures from -10°C to +60°C and suitable for continuous use.

    Features and Benefits


    • PVC sheath material for insulation
    • Various colours to choose from, including red, blue and green
    • Sizes range from 0.5 mm² CSA/27 AWG up to 2.5 mm² CSA/20 AWG
    • Variety of conductors, including - BS6004, Class 5 and Plain annealed
    • Supplied on a 100 m reel

    What is hook up wire?


    Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover (usually PVC) and act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

    What is hook up wire used for?


    This equipment wire can be applied to endless applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

    • Circuit boards
    • Computer internals
    • Mobile phones and other battery operated devices
    • Vehicle lights

    Benefits of a copper conductor


    Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire. There are different variations of copper available, such as:

    • Tinned copper
    • Annealed copper
    • Nickel plated copper


    規格

    屬性
    Cross Sectional Area0.1 mm²
    Sheath ColourGreen
    Cable ShapeSingle Core
    American Wire Gauge27 AWG
    Core Strands26/0.07 mm
    Length100m
    Insulation MaterialPVC
    Outer Diameter1mm
    Voltage Rating150 V
    Maximum Operating Temperature+70°C
    Minimum Operating Temperature-10°C
    Conductor MaterialCopper
    Standards MetRoHS Compliant
    Shield TypeUnshielded
    Insulation Wall Thickness0.3mm
    Number of Strands26
    Size of Strands0.07 mm
