Siemens TP900 Series Touch Screen HMI - 9 in, TFT Display, 800 x 480pixels
- RS庫存編號:
- 864-3973
- 製造零件編號:
- 6AV2124-0JC01-0AX0
- 製造商:
- Siemens
查看所有HMI Displays
27 現貨庫存,可於6工作日發貨。
單價(不含稅) 個
原價 TWD94,769.00
您付款
TWD90,259.00
(不含稅)
TWD94,771.95
(含稅)
單位 | Per unit |
1 + | TWD90,259.00 |
- RS庫存編號:
- 864-3973
- 製造零件編號:
- 6AV2124-0JC01-0AX0
- 製造商:
- Siemens
- COO (Country of Origin):
- DE
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

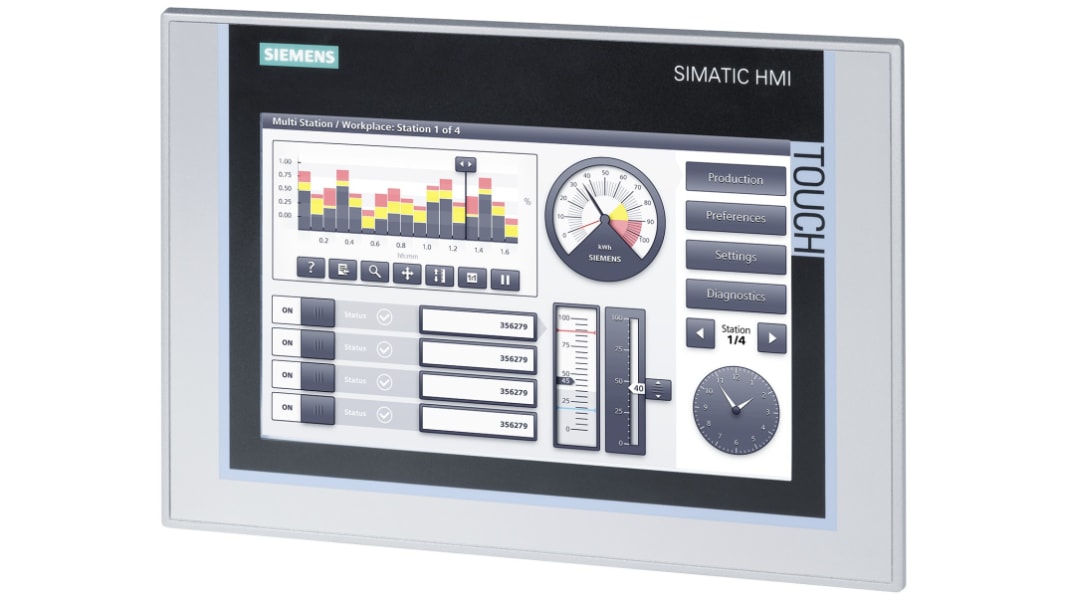

Siemens Touch-Screen HMI, 9-Inch Display, 800 x 480px Resolution - TP900 Series - 6AV2124-0JC01-0AX0
This HMI from Siemens makes it easy to manage your appliances. Its TFT technology gives you an intuitive touch-based interface for simple automated task control, while a large 9-inch display means there's plenty of space to read and compare graphical information. It has an image resolution of 800 by 480px, which gives you a clear picture even with complicated data. This device comes with HMI software that performs all basic programming functions, making it easy to improve the efficiency of your hardware. It has a fully dimmable backlit screen so you can adjust its brightness for maximum clarity in both light and dark workspaces.
12MB built-in memory easily processes your commands for fast machine control
Automatic system diagnostics make it easy to address faults
Supports up to 16 million colours for a detailed picture
Connects to external keyboards and mice via USB for a convenient user interface
Pre-installed operating system for quick and simple startup
Automatic system diagnostics make it easy to address faults
Supports up to 16 million colours for a detailed picture
Connects to external keyboards and mice via USB for a convenient user interface
Pre-installed operating system for quick and simple startup
Which operating system does this HMI use?
This HMI uses a version of Windows CE built specifically for it.
規格
屬性 | 值 |
Manufacturer Series | TP900 |
Display Type | TFT |
Display Size | 9 in |
Display Resolution | 800 x 480pixels |
Display Colour | Colour |
Number of Ports | 3 |
Port Type | Ethernet, MPI, Profibus DP, USB |
Processor Type | X86 |
Onboard Memory | 12 MB |
Backlighting | Yes |
Supply Voltage | 24 V dc |
IP Rating | IP20, IP65 |
Dimensions | 274 x 190 x 63 mm |
Length | 274mm |
Minimum Operating Temperature | 0°C |
Width | 190mm |
Depth | 63mm |
Maximum Operating Temperature | +50°C |
