Vishay Thermal Jumper Chip, RF Amplifiers, Filters, Synthesizers, Power Supplies and Converters, Switch Mode Power
- RS庫存編號:
- 230-1351
- 製造零件編號:
- THJP0805AST1
- 製造商:
- Vishay
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 組，共 10 件）*
TWD192.00
(不含稅)
TWD201.60
(含稅)
訂單超過 $1,300.00 免費送貨
最後的 RS 庫存
- 最終 110 個，準備發貨
單位 | 每單位 | 每膠帶* |
|---|---|---|
| 10 - 90 | TWD19.20 | TWD192.00 |
| 100 - 190 | TWD18.70 | TWD187.00 |
| 200 - 490 | TWD18.30 | TWD183.00 |
| 500 + | TWD17.70 | TWD177.00 |
* 參考價格
- RS庫存編號:
- 230-1351
- 製造零件編號:
- THJP0805AST1
- 製造商:
- Vishay
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Vishay | |
| For Use With | RF Amplifiers, Filters, Synthesizers, Power Supplies and Converters, Switch Mode Power Supplies, Pin and Laser Diodes | |
| Product Type | Thermal Jumper Chip | |
| Length | 2mm | |
| Width | 1.2 mm | |
| Height | 0.8mm | |
| Thermal Resistance | 13°C/W | |
| Fastening | Surface Mount | |
| Standards/Approvals | RoHS | |
| Material | Aluminium | |
| 選取全部 | ||
|---|---|---|
品牌 Vishay | ||
For Use With RF Amplifiers, Filters, Synthesizers, Power Supplies and Converters, Switch Mode Power Supplies, Pin and Laser Diodes | ||
Product Type Thermal Jumper Chip | ||
Length 2mm | ||
Width 1.2 mm | ||
Height 0.8mm | ||
Thermal Resistance 13°C/W | ||
Fastening Surface Mount | ||
Standards/Approvals RoHS | ||
Material Aluminium | ||
- COO (Country of Origin):
- US

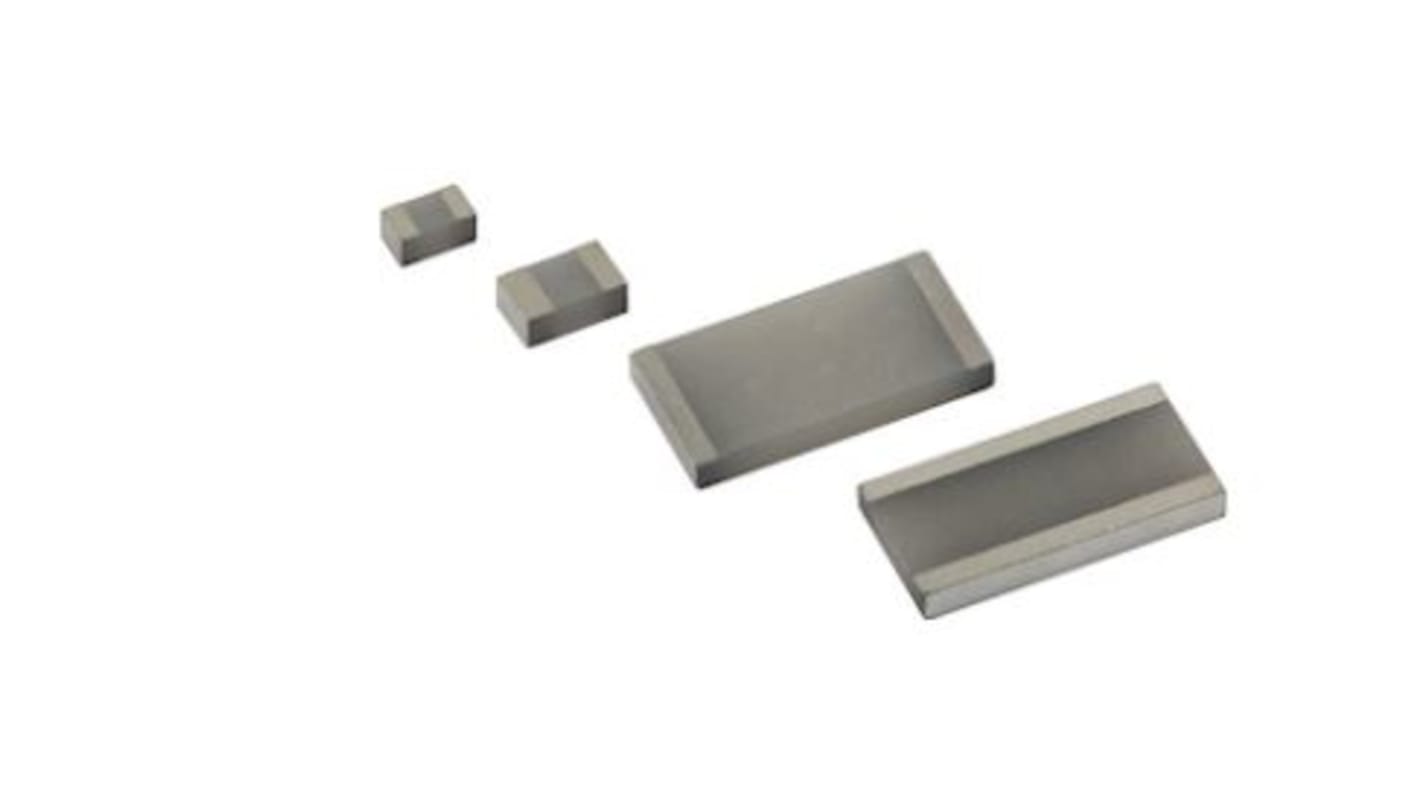

The Vishay THJP surface mount chips are designed to provide an electrically isolated thermal conductive pathway to a ground plane or heat sink while maintaining the electrical isolation of the device. The devices are constructed with aluminium nitride substrates in both SnPb and Pb-free wraparound termination styles. The low capacitance of the device makes them an excellent choice for high frequency and thermal ladder applications. Custom sizes available.
Electrically isolated thermal conductor
High thermal conductivity AlN substrate (170 W/mK)
Electrically isolated terminations (> 999 MΩ)
Low capacitance
Available with SnPb or lead (Pb)-free wrap terminations
