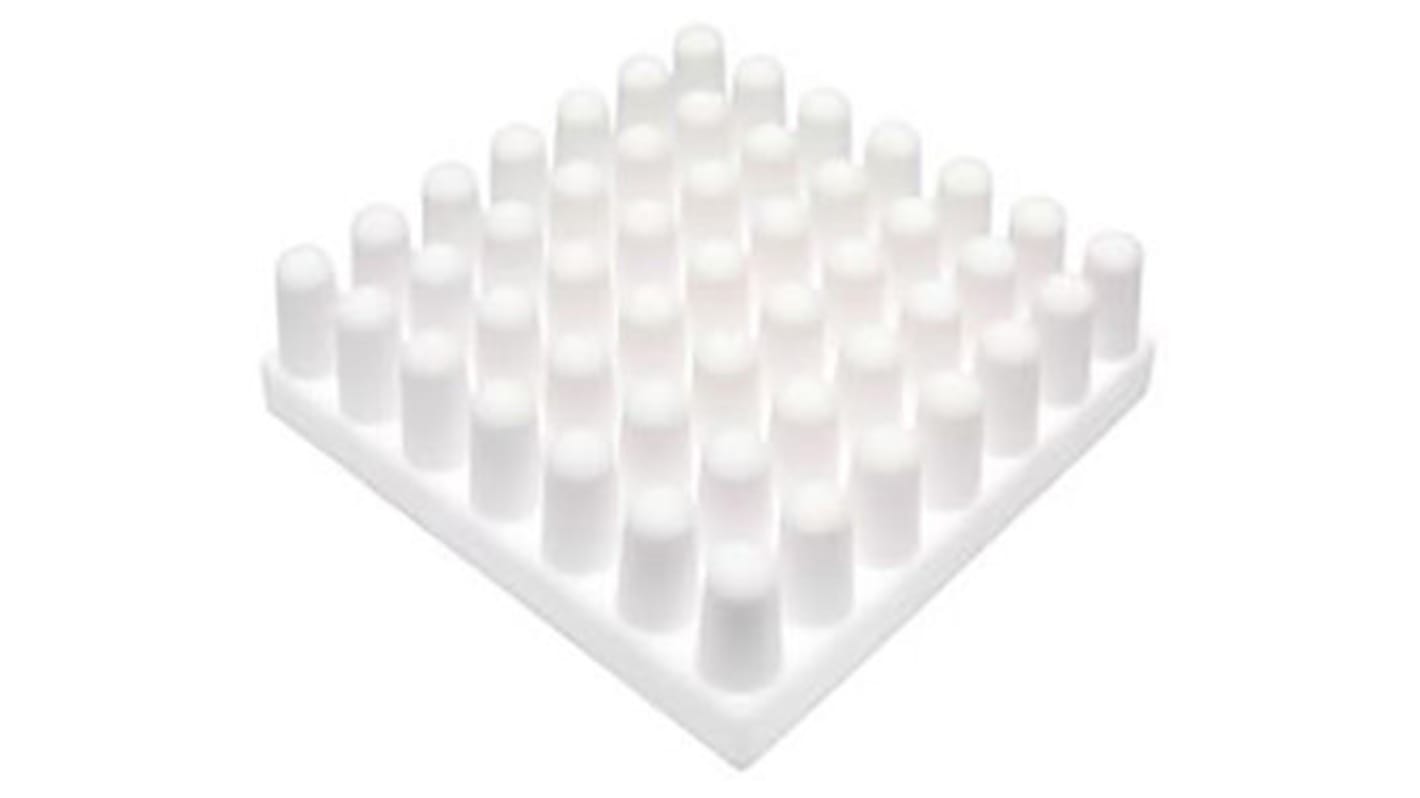

SPREADFAST Heatsink, Universal Square Ceramic, 12.7°C/W, 24 °C/W 10 mm 23 mm 23 mm
- RS庫存編號:
- 123-5633
- 製造零件編號:
- SF-CHS-232310-PC
- 製造商:
- SPREADFAST
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 123-5633
- 製造零件編號:
- SF-CHS-232310-PC
- 製造商:
- SPREADFAST
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | SPREADFAST | |
| Product Type | Heatsink | |
| For Use With | Universal Square Ceramic | |
| Length | 23mm | |
| Width | 23 mm | |
| Height | 10mm | |
| Thermal Resistance | 12.7, 24°C/W | |
| Fastening | Adhesive, Screw | |
| Series | Circular Pin Fin | |
| Colour | White | |
| Standards/Approvals | RoHS | |
| Material | Aluminium Oxide | |
| Special Features | Lower Density (When Compared With Metal Heat Sink Varieties), Good Heat Spreader, High Volume Resistivity, High Breakdown Voltage, Ideal for Direct Metalisation, Good Thermal Cycling Stability, Good EMC | |
| 選取全部 | ||
|---|---|---|
品牌 SPREADFAST | ||
Product Type Heatsink | ||
For Use With Universal Square Ceramic | ||
Length 23mm | ||
Width 23 mm | ||
Height 10mm | ||
Thermal Resistance 12.7, 24°C/W | ||
Fastening Adhesive, Screw | ||
Series Circular Pin Fin | ||
Colour White | ||
Standards/Approvals RoHS | ||
Material Aluminium Oxide | ||
Special Features Lower Density (When Compared With Metal Heat Sink Varieties), Good Heat Spreader, High Volume Resistivity, High Breakdown Voltage, Ideal for Direct Metalisation, Good Thermal Cycling Stability, Good EMC | ||
- COO (Country of Origin):
- CN
Spreadfast SF-CHS Series Round Pin Ceramic Heatsink
Spreadfast SF-CHS series of round pin ceramic heatsinks have been designed as a lower density improvement over traditional metal heatsinks. The innate characteristics of ceramic heatsinks means the SF-CHS series have a high breakdown voltage and heat dissipation. Thanks to the meticulous design of these ceramic heatsinks, the SF-CHS series are ideally suited to applications where thermal cycling stability are required.
Typical Applications
Traditional heatsink replacement.
LED & chipset cooling.
Power modules.
IC cooling.
Ceramic Heatsinks
