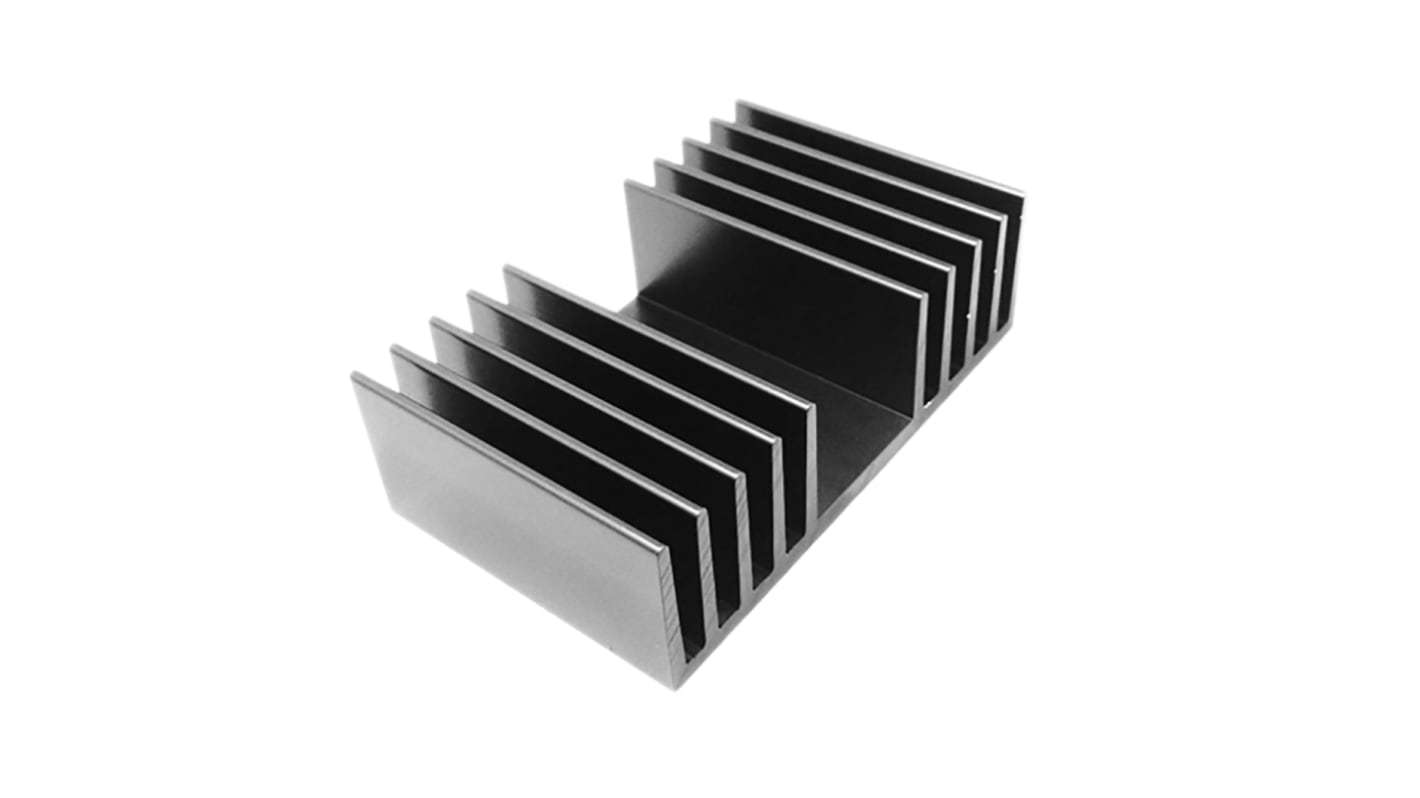

Heatsink, Universal Rectangular Alu, 1K/W, 100 x 120 x 37mm
- RS庫存編號:
- 271-864
- 製造商:
- RS PRO
查看所有Heatsinks
746 現貨庫存，可於6工作日發貨。
單價（不含稅） 個
原價 TWD691.00
您付款
TWD656.00
(不含稅)
TWD688.80
(含稅)
| 單位 | Per unit |
| 1 - 99 | TWD656.00 |
| 100 - 249 | TWD639.00 |
| 250 - 499 | TWD623.00 |
| 500 + | TWD609.00 |
- RS庫存編號:
- 271-864
- 製造商:
- RS PRO
- COO (Country of Origin):
- GB
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Flatback 120mm Wide x 37mm High With Channel
It is recommended that the effectiveness of any heatsink is tested in the specific operating environment in which it will be subjected
Note
Thermal resistance quoted is with fins vertical in free air. Length dimension refers to extrusion length along fins.
規格
| 屬性 | 值 |
| For Use With | Universal Rectangular Alu |
| Length | 100mm |
| Width | 120mm |
| Height | 37mm |
| Dimensions | 100 x 120 x 37mm |
| Thermal Resistance | 1K/W |
| Colour | Black |
| Material | Aluminium |
