    RS PRO 10 ⭢ 25mm x 232 mm HSS Hand Reamer

    RS PRO
    RS庫存編號:
    456-894
    製造商:
    RS PRO
    查看所有Hand Reamers
    159 現貨庫存,可於6工作日發貨。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個

    TWD1,330.00

    (不含稅)

    TWD1,396.50

    (含稅)

    單位Per unit
    1 - 4TWD1,330.00
    5 +TWD1,095.00
    RS庫存編號:
    456-894
    製造商:
    RS PRO

    產品概覽和技術數據資料表


    法例與合規

    不適用

    COO (Country of Origin):
    CN

    產品詳細資訊

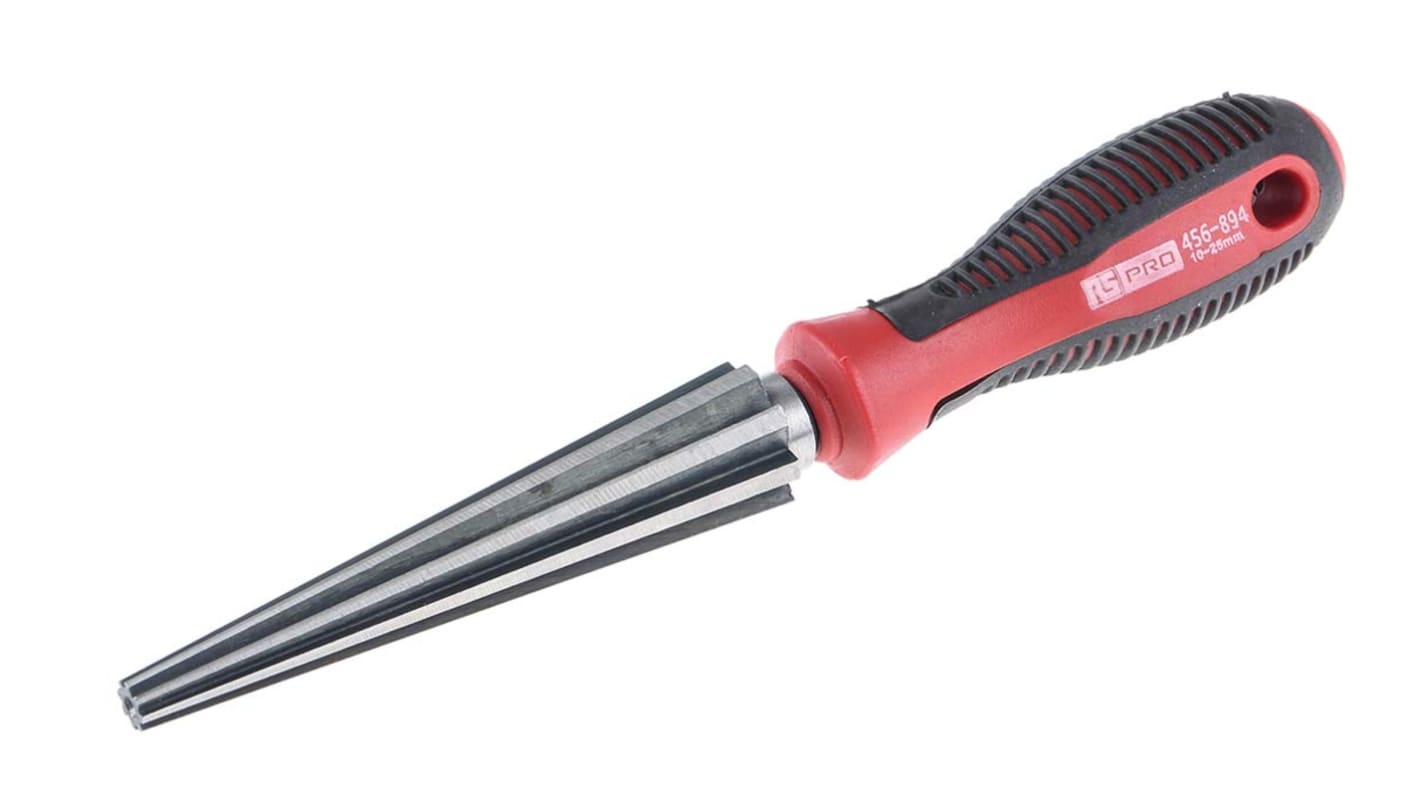

    RS PRO HSS Tapered Hand Reamer


    Introducing the RS PRO range of HSS tapered Hand Reamers. The high-quality engineering hand tools are essential when cleaning burrs from a drilled hole, or to make a hole bigger. The RS PRO range has two different sizes of tapered hand reamers:

    456-894
    • 8 step flutes
    • The diameter of the top/bottom of the reamer head is 9.8mm/25.10mm
    • Twist angle for the top/bottom of the individual flute is 80 degrees
    • The overall length of the reamer head is 122mm (shaft excluded)
    • Overall tool length is 235mm
    • Connection shank size is 8mm (hexagon shank)

    456-917
    • 6 step flutes
    • The diameter of the top/bottom of the reamer head is 0.20mm/12.10mm
    • Twist angle for the top/bottom of the individual flute is 70 degrees
    • The overall length of the reamer head is 85mm (shaft excluded)
    • Overall tool length is 190mm
    • Connection shank size is 6mm (hexagon shank)

    Features and Benefits:


    • The RS PRO hand reamers range are made from heat-treated HSS (High-Speed Steel) for ultra-durability, hardness and premium cutting performance and taper to a narrow point for easy entry into the drilled hole
    • Chemically blackened finish for corrosion resistance
    • Suitable for use with most ferrous and non-ferrous metals

    Applications:


    Reaming is a mechanical process that can aid in creating precision holes and is mainly used after the hole has been drilled using a drill bit. Because of this, reamers need to be very strong and have a high tolerance to ensure that the end result is a smooth-cut hole with no sharp internal surfaces. Reamers can be used by hand or machine and are often used in:
    • Metalworking industry
    • Engineering production
    • Automotive and aircraft industries

    How does a reamer differ from a drill bit?


    A reamer is stiffer and offers a higher tolerance than a drill bit. They are generally made from HSS which means that the reamer also retains much more of its strength and durability even at high temperatures. A reamer also generally comes in pre-determined sizes, just like a drill bit does, but unlike a drill bit, it cannot start a hole, which is the primary function of a drill bit. A drill bit is normally used as the first step in making a hole and a reamer is normally the last step to ensure a clean, burr-free finish with no sharp edges and to ensure the hole is at the correct size.


    規格

    屬性
    TypeTapered
    Flute TypeTapered
    Overall Length232 mm
    Diameter10 ⭢ 25mm
    MaterialHSS
