ROHM BD2320UEFJ-LAE2 2, 4.5 A 8-Pin 100 V, HTSOP-J8

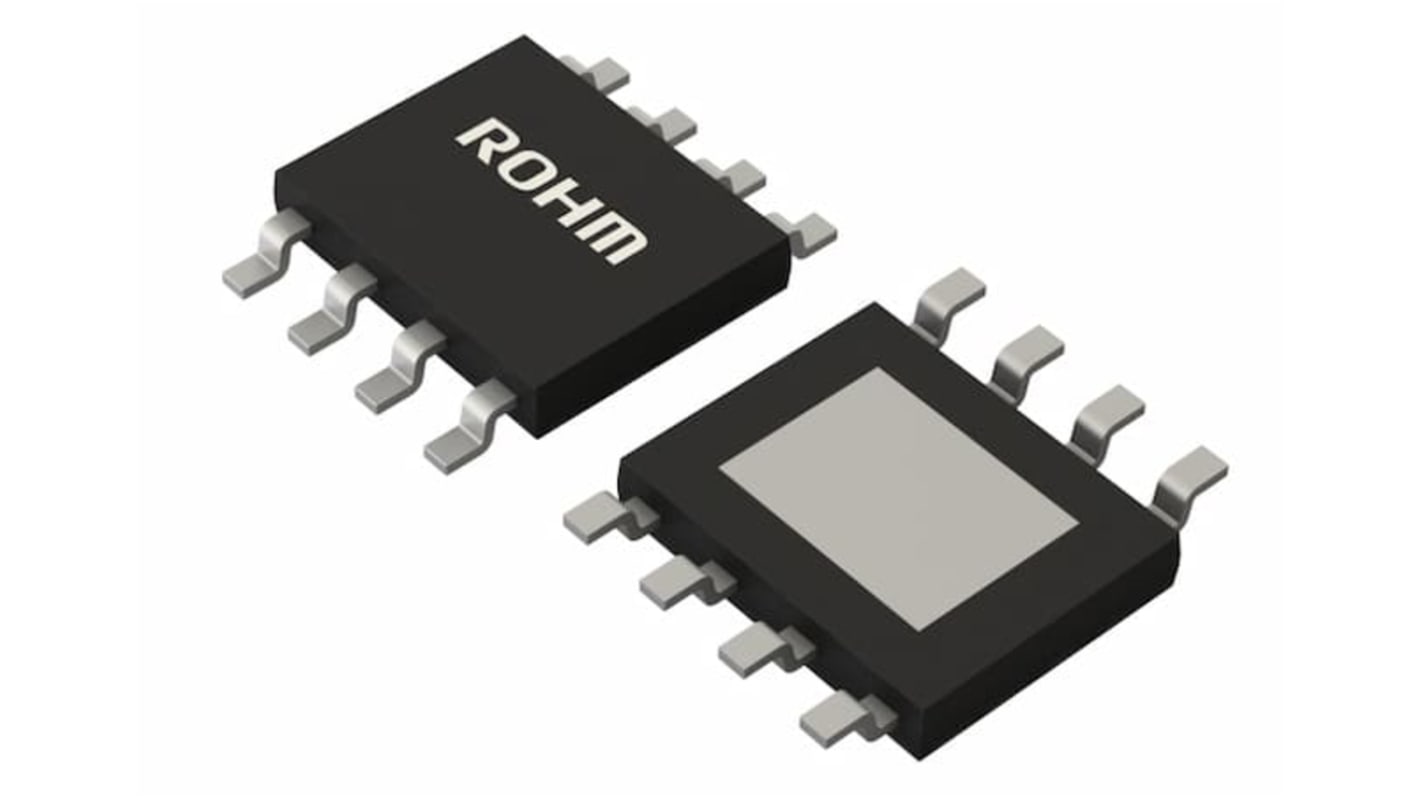

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Gate Drivers
可享批量折扣

小計（1 包，共 5 件）*

TWD319.00

(不含稅)

TWD334.95

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 2,485 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每包*
5 - 45TWD63.80TWD319.00
50 - 95TWD54.00TWD270.00
100 - 245TWD46.00TWD230.00
250 - 995TWD43.60TWD218.00
1000 +TWD42.60TWD213.00

* 參考價格

包裝方式：
RS庫存編號:
267-2271
製造零件編號:
BD2320UEFJ-LAE2
製造商:
ROHM
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

ROHM

Product Type

Gate Driver Module

Output Current

4.5A

Pin Count

8

Package Type

HTSOP-J8

Fall Time

6ns

Rise Time

6ns

Minimum Supply Voltage

100V

Maximum Supply Voltage

100V

Number of Drivers

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Width

6 mm

Length

4.9mm

Height

1mm

Series

BD2320UEFJ-LA

Standards/Approvals

RoHS

Mount Type

Through Hole

Automotive Standard

No

The ROHM BD2320UEFJ-LA is the 100V maximum voltage high-side and low-side gate driver which can drive external Nch-FET using the bootstrap method. The driver includes a 100V bootstrap diode and independent inputs control for high-side and low-side. 3.3V and 5.0V are available for interface voltage. Under voltage lockout circuits are built in for high-side and low-side.

Long time support product for industrial applications

Under voltage lockout for high-side and low-side driver

3.3 V and 5.0 V interface voltage

Output in-phase with input signal
