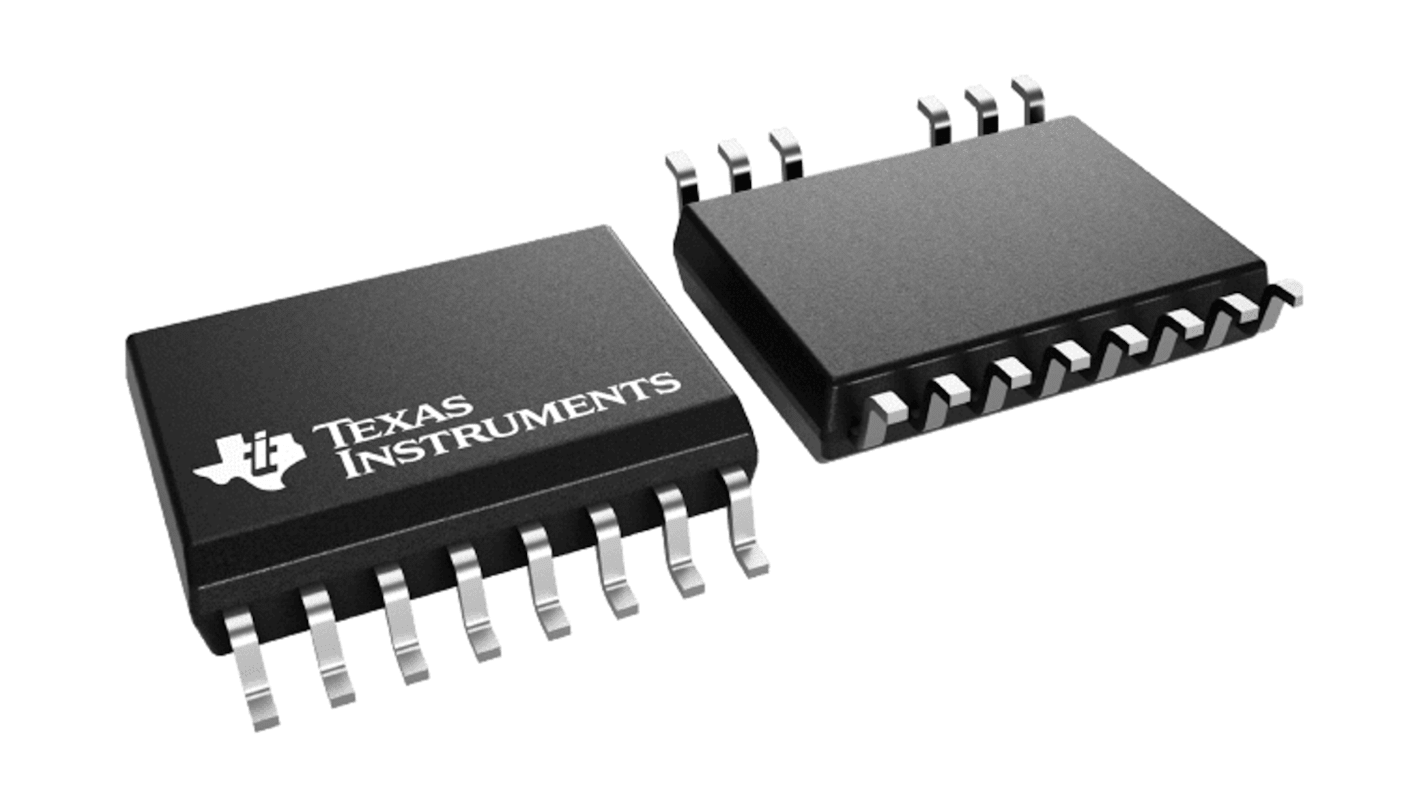

Texas Instruments, Half Bridge 2, 6 A 14-Pin 25 V, SOIC
- RS庫存編號:
- 265-3579
- 製造零件編號:
- UCC21530QDWKQ1
- 製造商:
- Texas Instruments
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 265-3579
- 製造零件編號:
- UCC21530QDWKQ1
- 製造商:
- Texas Instruments
規格
產品概覽和技術數據資料表
法例與合規
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Texas Instruments | |
| Product Type | Gate Driver Module | |
| Output Current | 6A | |
| Pin Count | 14 | |
| Fall Time | 7ns | |
| Package Type | SOIC | |
| Driver Type | Half Bridge | |
| Rise Time | 6ns | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 25V | |
| Number of Drivers | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 10.63mm | |
| Standards/Approvals | No | |
| Series | UCC21530 | |
| Height | 2.65mm | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Texas Instruments | ||
Product Type Gate Driver Module | ||
Output Current 6A | ||
Pin Count 14 | ||
Fall Time 7ns | ||
Package Type SOIC | ||
Driver Type Half Bridge | ||
Rise Time 6ns | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 25V | ||
Number of Drivers 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 10.63mm | ||
Standards/Approvals No | ||
Series UCC21530 | ||
Height 2.65mm | ||
Mount Type Surface | ||
Automotive Standard No | ||
