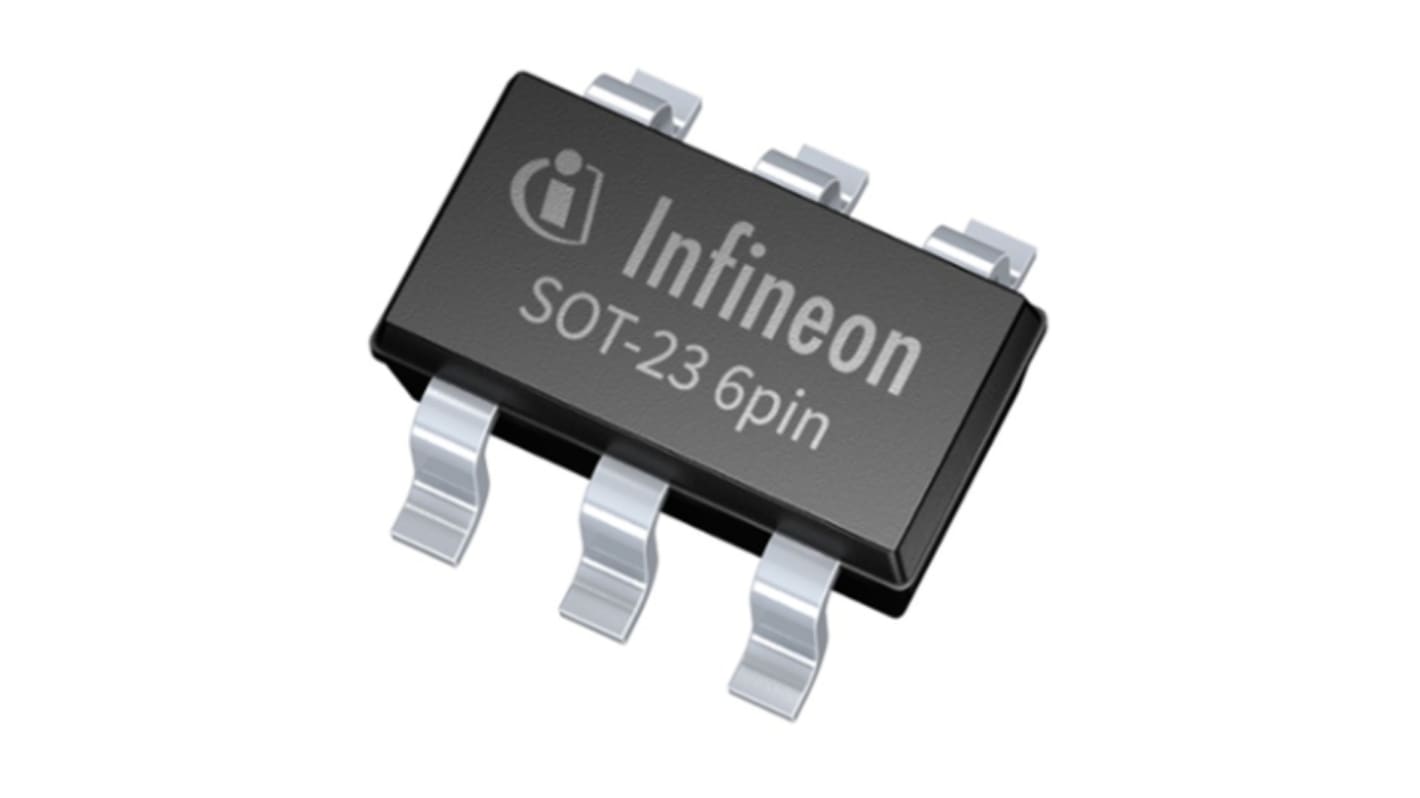

Infineon MOSFET Gate Driver 1, 2.6 A 6-Pin 25 V, SOT-23

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Gate Drivers
可享批量折扣

小計（1 卷，共 3000 件）*

TWD44,100.00

(不含稅)

TWD46,320.00

(含稅)

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年4月22日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每卷*
3000 - 3000TWD14.70TWD44,100.00
6000 +TWD14.20TWD42,600.00

* 參考價格

RS庫存編號:
258-0595
製造零件編號:
1ED44173N01BXTSA1
製造商:
Infineon
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Infineon

Product Type

MOSFET

Output Current

2.6A

Pin Count

6

Package Type

SOT-23

Fall Time

5ns

Driver Type

MOSFET

Rise Time

5ns

Minimum Supply Voltage

8.6V

Number of Drivers

1

Maximum Supply Voltage

25V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Standards/Approvals

JEDEC JESD47/22, J-STD-020

Series

1ED44173N01B

Automotive Standard

No

The Infineon single-channel low-side MOSFET gate driver IC is a low-voltage, power MOSFET non-inverting gate driver. Proprietary latch immune CMOS technologies

enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output driver features a current buffer stage. The single-channel low-side MOSFET gate driver IC has OCP pin for over current protection sense and a FAULT status output. The EN/FLT needs to be outside pulled up to provide normal operation, pulling EN/FLT low disable the driver. Internal circuitry on VCC pin provides an under voltage lockout protection that holds output low until VCC supply voltage is within operating range.

Single pin for fault output and enable

Programmable fault clear time

Under voltage lockout for MOSFETs

CMOS Schmitt-triggered inputs

Output in phase with input
