製造零件編號

DiodesZetex DGD1003FTA-13 MOSFET Gate Driver 2, 290 mA 8-Pin 20 V, VDFN

RS庫存編號:: 213-9145
製造零件編號:: DGD1003FTA-13
製造商:: DiodesZetex

DiodesZetex DGD1003FTA-13 MOSFET Gate Driver 2, 290 mA 8-Pin 20 V, VDFN

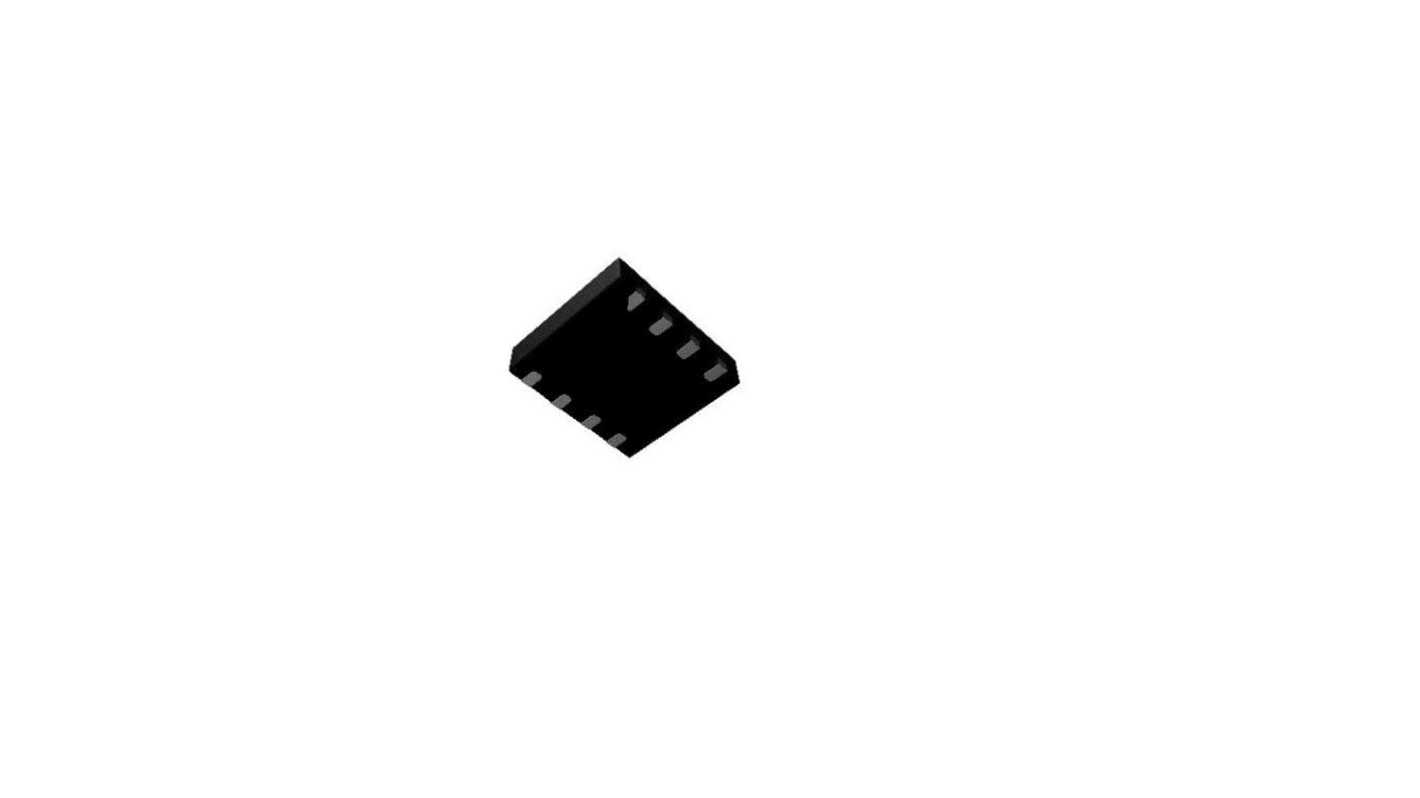

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 包，共 25 件）*

TWD245.00

(不含稅)

TWD257.25

訂單超過 $1,300.00 免費送貨

有庫存

4,575 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
25 - 1225	TWD9.80	TWD245.00
1250 - 2475	TWD9.60	TWD240.00
2500 +	TWD9.40	TWD235.00

* 參考價格

RS庫存編號:: 213-9145
製造零件編號:: DGD1003FTA-13
製造商:: DiodesZetex

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	DiodesZetex
	Product Type	MOSFET
	Output Current	290mA
	Pin Count	8
	Package Type	VDFN
	Fall Time	35ns
	Number of Outputs	4
	Driver Type	MOSFET
	Rise Time	70ns
	Minimum Supply Voltage	10V
	Maximum Supply Voltage	20V
	Number of Drivers	2
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Standards/Approvals	No
	Series	DGD1003
	Length	3.55mm
	Width	3.05 mm
	Height	0.85mm
	Mount Type	Surface
	Automotive Standard	No

	選取全部
	品牌 DiodesZetex
	Product Type MOSFET
	Output Current 290mA
	Pin Count 8
	Package Type VDFN
	Fall Time 35ns
	Number of Outputs 4
	Driver Type MOSFET
	Rise Time 70ns
	Minimum Supply Voltage 10V
	Maximum Supply Voltage 20V
	Number of Drivers 2
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Standards/Approvals No
	Series DGD1003
	Length 3.55mm
	Width 3.05 mm
	Height 0.85mm
	Mount Type Surface
	Automotive Standard No

Datasheet - DGD1003FTA-13

The DiodesZetex DGD1003 series is a high-voltage / high-speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half-bridge configuration.

Schmitt triggered logic inputs

Floating high-side driver in bootstrap operation to 150V

DiodesZetex DGD1003FTA-13 MOSFET Gate Driver 2, 290 mA 8-Pin 20 V, VDFN
