Microchip MOSFET Gate Driver 2, 1.5 A 8-Pin 20 V, SOIC

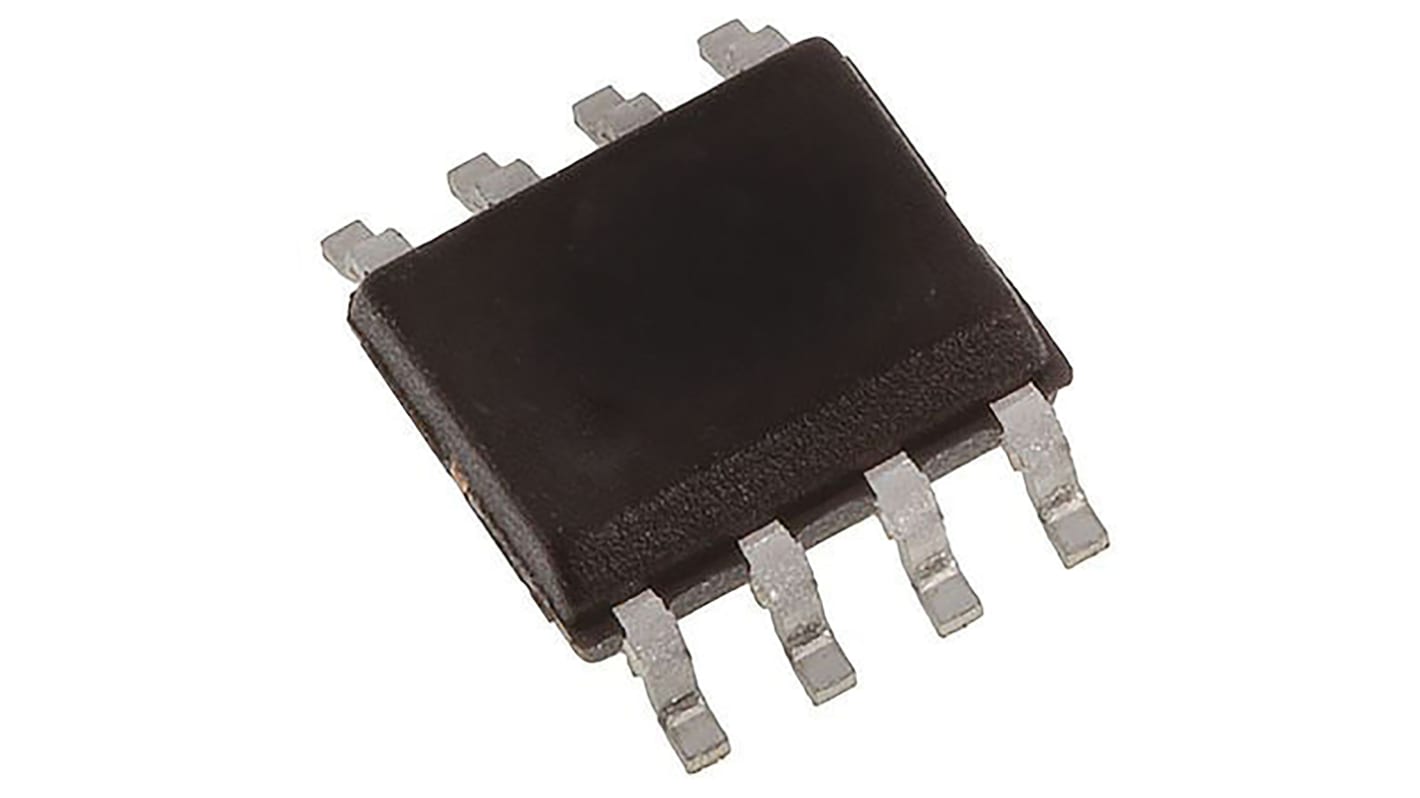

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Gate Drivers
可享批量折扣

小計（1 管，共 100 件）*

TWD3,840.00

(不含稅)

TWD4,032.00

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 200 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每管*
100 - 400TWD38.40TWD3,840.00
500 +TWD34.60TWD3,460.00

* 參考價格

RS庫存編號:
144-9272
製造零件編號:
TC427COA
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Product Type

MOSFET

Output Current

1.5A

Pin Count

8

Package Type

SOIC

Fall Time

30ns

Driver Type

MOSFET

Number of Outputs

2

Rise Time

30ns

Minimum Supply Voltage

18V

Maximum Supply Voltage

20V

Number of Drivers

2

Minimum Operating Temperature

0°C

Maximum Operating Temperature

70°C

Length

4.9mm

Height

1.42mm

Standards/Approvals

No

Width

3.91 mm

Series

TC427

Mount Type

Surface

Automotive Standard

No

TC426/427/428 MOSFET Drivers


The Microchip TC426, TC427 and TC428 devices are a dual Low-Side MOSFET Drivers.

Features


High-Speed Switching (CL = 1000 pF): 30 ns

High Peak Output Current: 1.5A

High Output Voltage Swing: VDD -25 mV, GND +25 mV

Low Input Current (Logic ’0’ or ’1’): 1 μA

TTL/CMOS Input Compatible

Configuration: TC426 - Inverting, TC427 - Non-Inverting, TC428 - Inverting / Non-Inverting

Operating Supply Voltage: 4.5V to 18V

Current Consumption: Inputs Low 0.4 mA, Inputs High 8 mA

Single Supply Operation

Low Output Impedance: 6 Ω

Latch-Up Resistant: Withstands >500 mA Reverse Current

ESD Protected: 2 kV

MOSFET & IGBT Drivers, Microchip
