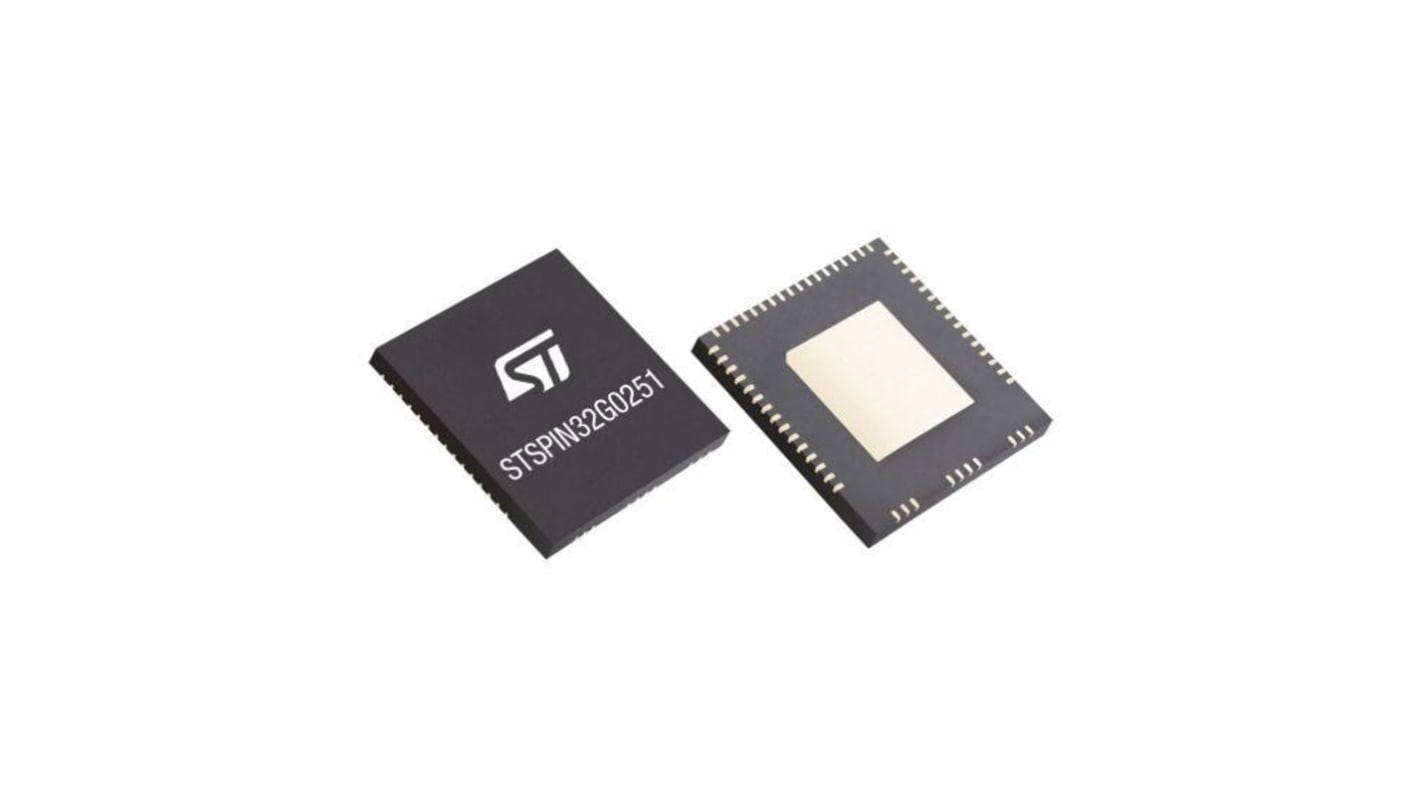

STMicroelectronics, Gate Driver 3, 350 mA 72-Pin 20 V, QFN (10 x 10 mm) 72L
- RS庫存編號:
- 151-777
- 製造零件編號:
- STSPIN32G0251Q
- 製造商:
- STMicroelectronics
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 包，共 2 件）*
TWD230.00
(不含稅)
TWD241.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 168 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 2 - 18 | TWD115.00 | TWD230.00 |
| 20 + | TWD103.50 | TWD207.00 |
* 參考價格
- RS庫存編號:
- 151-777
- 製造零件編號:
- STSPIN32G0251Q
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Product Type | Gate Driver Module | |
| Output Current | 350mA | |
| Pin Count | 72 | |
| Package Type | QFN (10 x 10 mm) 72L | |
| Fall Time | 50ns | |
| Driver Type | Gate Driver | |
| Number of Outputs | 6 | |
| Rise Time | 120ns | |
| Minimum Supply Voltage | 20V | |
| Number of Drivers | 3 | |
| Maximum Supply Voltage | 20V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | STSPIN32G0251 | |
| Width | 1 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Product Type Gate Driver Module | ||
Output Current 350mA | ||
Pin Count 72 | ||
Package Type QFN (10 x 10 mm) 72L | ||
Fall Time 50ns | ||
Driver Type Gate Driver | ||
Number of Outputs 6 | ||
Rise Time 120ns | ||
Minimum Supply Voltage 20V | ||
Number of Drivers 3 | ||
Maximum Supply Voltage 20V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series STSPIN32G0251 | ||
Width 1 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The STMicroelectronics microcontroller, it is represents the perfect choice for Advanced motor control applications thanks to the comprehensive set of features such as the 12-bit ADC, an internal voltage reference buffer, one general-purpose 32-bit timer, one 16-bit PWM timer dedicated to motor control, four general-purpose 16-bit timers, two 16 bit low power timers, a 5-channel DMA that performs data transfers between memory-mapped peripherals and/or memories to offload the CPU.
Matched propagation delay for all channels
Integrated bootstrap diodes
Comparator for fast overcurrent protection
