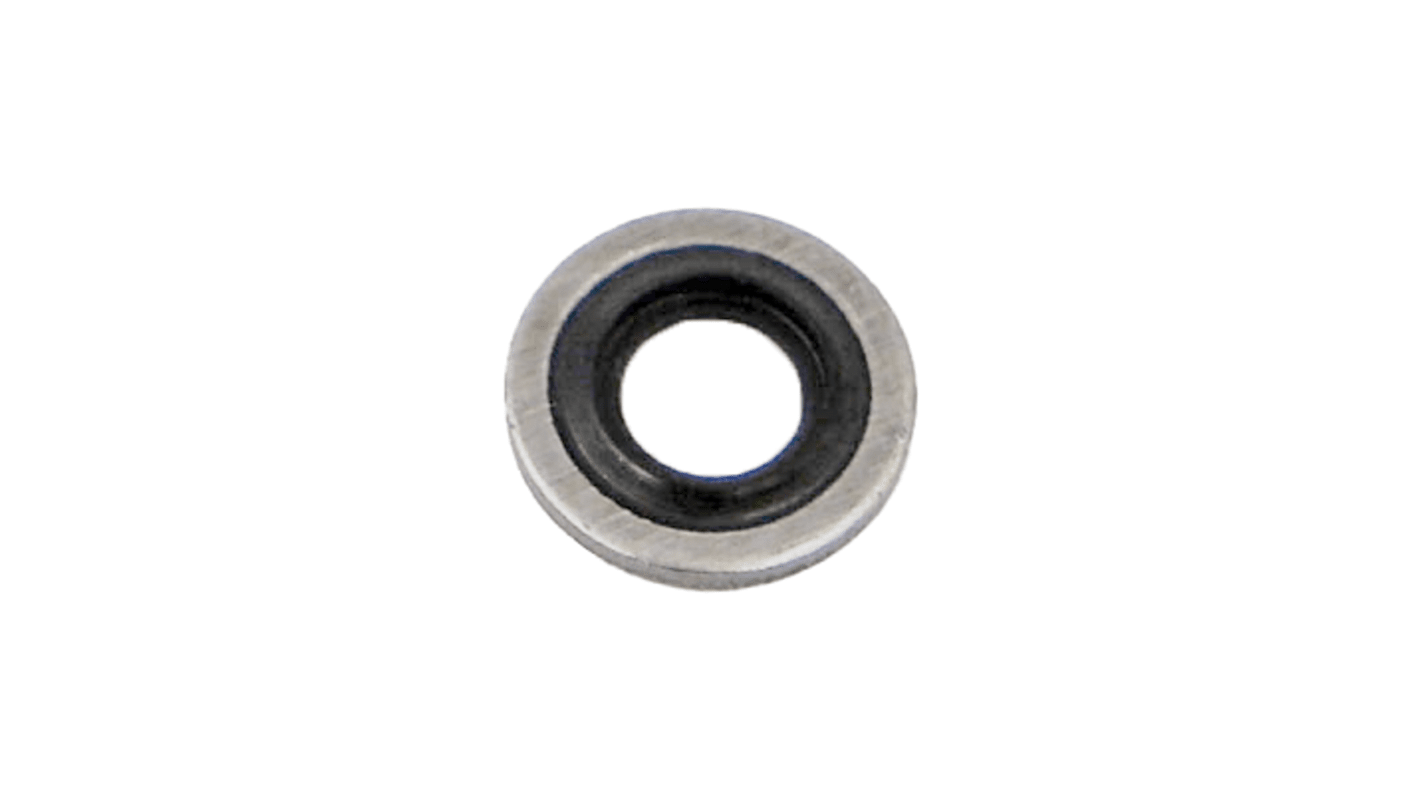

Hutchinson Le Joint Français Rubber : DF851 & washer : Mild Steel Bonded Seals O-Ring, 5.7mm Bore, 10mm Outer Diameter
- RS庫存編號:
- 251-3123
- 製造零件編號:
- 205016
- 製造商:
- Hutchinson Le Joint Français
9 現貨庫存，可於6工作日發貨。
單價（不含稅） 1 袋 50 套
TWD3,051.00
(不含稅)
TWD3,203.55
(含稅)
Bag(s) | Per Bag | 每單位* |
|---|---|---|
| 1 + | TWD3,051.00 | TWD61.02 |
* 參考價格
- RS庫存編號:
- 251-3123
- 製造零件編號:
- 205016
- 製造商:
- Hutchinson Le Joint Français
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- MT
產品詳細資訊
The Hutchinson Le Joint Français bonded seal consist of a metal insert with a profile of vulcanized rubber compound bonded to the inside diameter 5.70 mm, 10 mm external diameter, 1 mm thickness has FKM DF851 rubber family and mild steel metal washer with black rubber color also suitable for sealing under the heads of bolts and screws, for pipe couplings.
Size standard A5
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability
規格
屬性 | 值 |
|---|---|
| Type | Bonded Seals |
| Material | Rubber : DF851 & washer : Mild Steel |
| Inside Diameter | 5.7mm |
| Outside Diameter | 10mm |
| Thickness | 1mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +250°C |
