Bulgin 10A Panel Mount Fuse Holder, 1P-Pole for 5 x 20 mm, 250V ac
- RS庫存編號:
- 359-5719
- Distrelec 貨號:
- 303-99-258
- 製造零件編號:
- FX0455/S
- 製造商:
- Bulgin
享受批量購買折扣
額外添加50件可節省TWD410.00
查看批量定價選項小計（1 包，共 5 件）*
TWD1,339.00
(不含稅)
TWD1,405.95
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 510 件準備從其他地點送貨
- 加上 400 件從 2027年2月08日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* | 節省 |
|---|---|---|---|
| 5 - 45 | TWD267.80 | TWD1,339.00 | - |
| 50 - 245 | TWD259.60 | TWD1,298.00 | TWD410.00 |
| 250 - 495 | TWD250.60 | TWD1,253.00 | TWD4,300.00 |
| 500 - 1245 | TWD245.60 | TWD1,228.00 | TWD11,100.00 |
| 1250 + | TWD240.00 | TWD1,200.00 | TWD34,750.00 |
* 參考價格
- RS庫存編號:
- 359-5719
- Distrelec 貨號:
- 303-99-258
- 製造零件編號:
- FX0455/S
- 製造商:
- Bulgin
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Bulgin | |
| Product Type | Panel Mount Fuse Holder | |
| Number of Poles | 1 | |
| Body Material | Polyester | |
| Compatible Fuse Size | 5 x 20 mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA, VDE, UL | |
| Terminal Type | Solder | |
| Protection Category | PC2 | |
| Contact Material | Silver Plated Brass | |
| Series | FX | |
| Cap Style | Slotted | |
| 選取全部 | ||
|---|---|---|
品牌 Bulgin | ||
Product Type Panel Mount Fuse Holder | ||
Number of Poles 1 | ||
Body Material Polyester | ||
Compatible Fuse Size 5 x 20 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA, VDE, UL | ||
Terminal Type Solder | ||
Protection Category PC2 | ||
Contact Material Silver Plated Brass | ||
Series FX | ||
Cap Style Slotted | ||
- COO (Country of Origin):
- TN

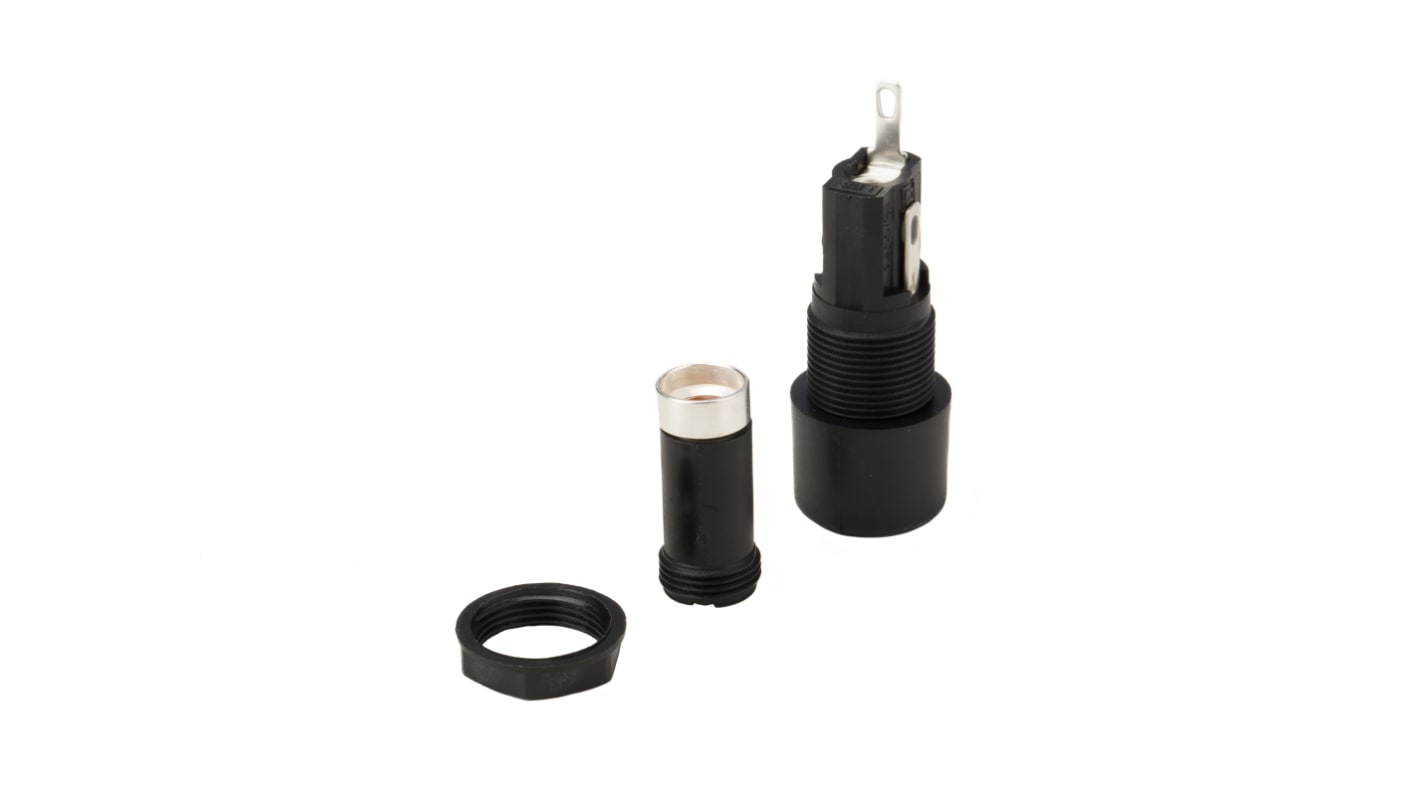

Panel Mount Fuse Holder FX0455/S
From Bulgin these panel mount fuse holders, have been designed to give the required protection for all your electronic equipment and have been manufactured using high grade flame retardant materials.
These fully touch proof panel mount fuse holders are protection category PC2, they have been specifically designed to accommodate 5 x 20mm size fuse and are screw cap/ screwdriver release.
Features and Benefits
• Protection category PC2
• Fuse size 5 x 20mm
• Screw cap/ screw driver release
• High profile bexel
• D panel cutout
• Main body Polyester, nylon cap and glass filled nylon nut
• Contacts brass, silver plated
Screw Cap, BT172D Type
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
Note
D mount, High profile
Approvals
UL, CSA, VDE, SEMKO
