Amphenol Industrial, SLP Plug EV Connector Female, 200A
- RS庫存編號:
- 239-9407
- 製造零件編號:
- SLPPB35BNR
- 製造商:
- Amphenol Industrial
此圖片僅供參考，請參閲產品詳細資訊及規格
- RS庫存編號:
- 239-9407
- 製造零件編號:
- SLPPB35BNR
- 製造商:
- Amphenol Industrial
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | SLP | |
| Current | 200A | |
| Connector Type | Plug | |
| Number of Rows | 1 | |
| Number of Contacts | 1 | |
| Wire Size | 35mm² | |
| Application | Electric Vehicles | |
| Operating Voltage | 1000V | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Connector Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Orientation | Right Angle | |
| Width | 18mm | |
| Standards/Approvals | RoHS Compliant, TUV, UL | |
| Depth | 55.1mm | |
| Height | 22.6mm | |
| Better World Claim | Renewable Energy Solution | |
| Better World Product | Yes | |
| Colour | Red | |
| Mount Type | Panel | |
| Pin Diameter | 8mm | |
| Contact Material | Copper Alloy | |
| Housing Material | Thermoplastic | |
| 選取全部 | ||
|---|---|---|
品牌 Amphenol Industrial | ||
Product Type EV Connector | ||
Series SLP | ||
Current 200A | ||
Connector Type Plug | ||
Number of Rows 1 | ||
Number of Contacts 1 | ||
Wire Size 35mm² | ||
Application Electric Vehicles | ||
Operating Voltage 1000V | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Connector Gender Female | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Orientation Right Angle | ||
Width 18mm | ||
Standards/Approvals RoHS Compliant, TUV, UL | ||
Depth 55.1mm | ||
Height 22.6mm | ||
Better World Claim Renewable Energy Solution | ||
Better World Product Yes | ||
Colour Red | ||
Mount Type Panel | ||
Pin Diameter 8mm | ||
Contact Material Copper Alloy | ||
Housing Material Thermoplastic | ||
- COO (Country of Origin):
- CN

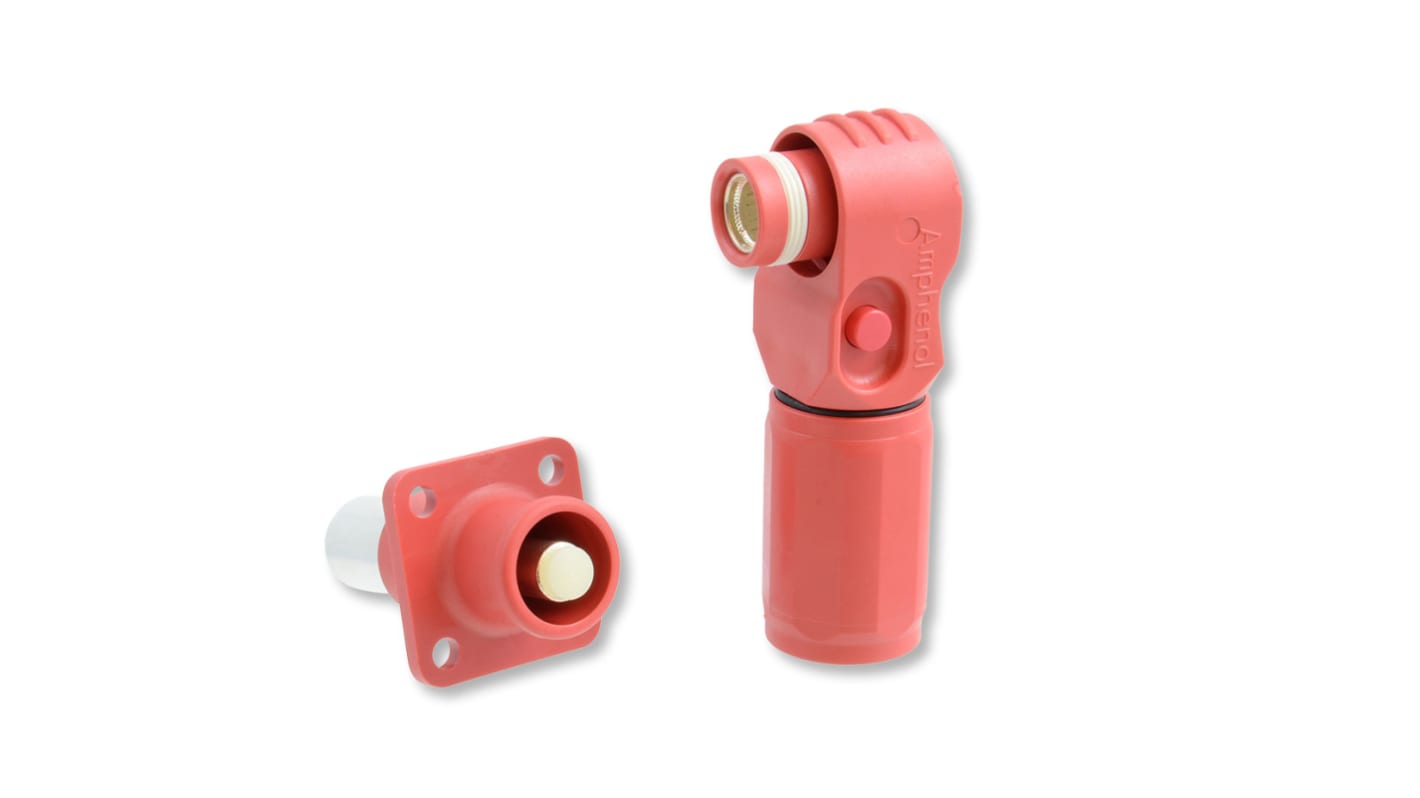

The Amphenol Industrial red right angled 8 mm Surlok Plus cable plug for 35mm² cable Size.
With back shells
