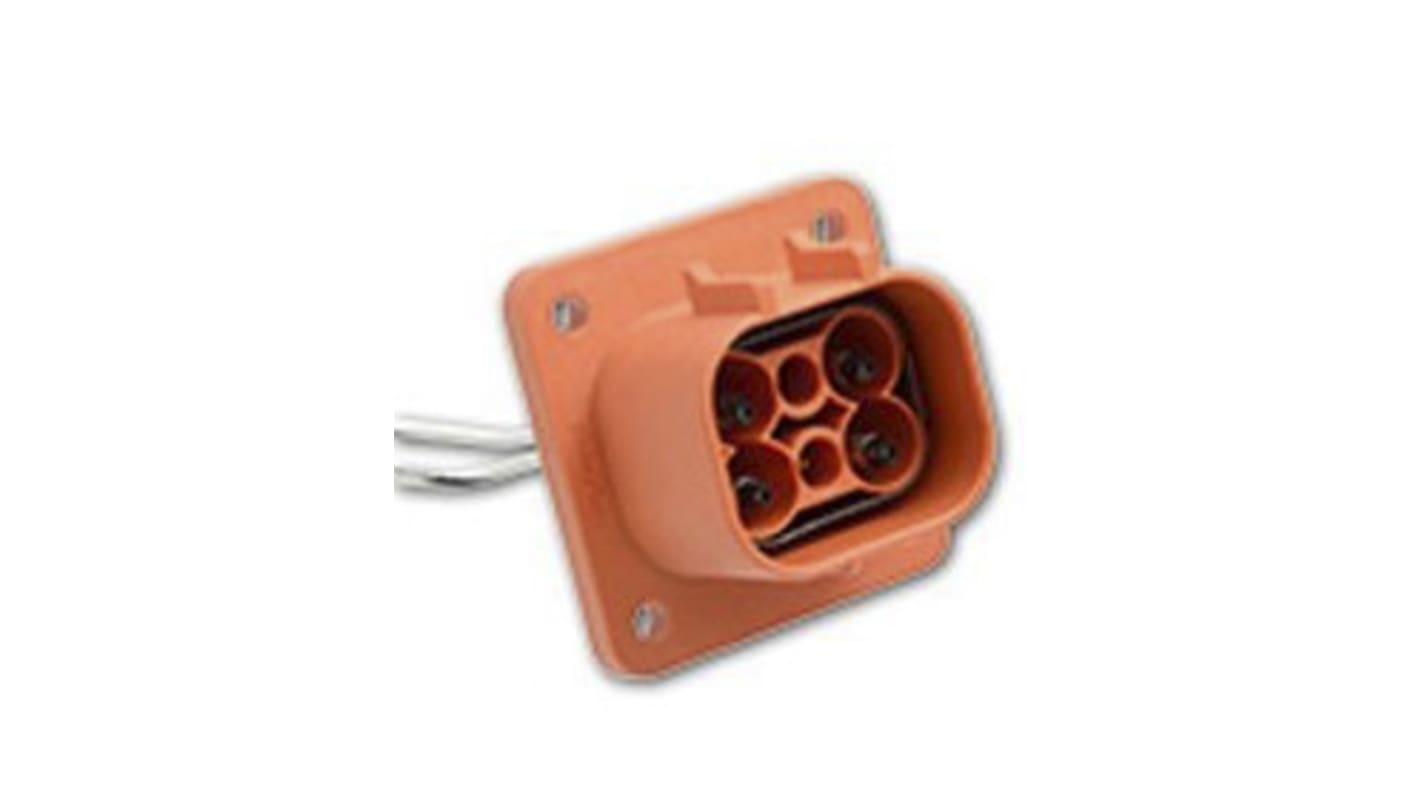

Amphenol Industrial, Epower Lite RADSOK Receptacle with HVIL EV Connector Female, 70A

查看所有EV Connectors
可享批量折扣

小計（1 件）*

TWD820.00

(不含稅)

TWD861.00

(含稅)

Add to Basket
選擇或輸入數量
庫存資訊目前無法存取 - 請稍後再回來查看

單位
每單位
1 - 4TWD820.00
5 - 9TWD779.00
10 +TWD761.00

* 參考價格

Better World

我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。

RS庫存編號:
124-4111
製造零件編號:
ELR4A02 / C10-737487-4AP2
製造商:
Amphenol Industrial
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Amphenol Industrial

Product Type

EV Connector

Series

Epower Lite

Connector Type

RADSOK Receptacle with HVIL

Current

70A

Number of Rows

2

Number of Contacts

4

Wire Size

4mm²

Operating Voltage

800V

Minimum Operating Temperature

-40°C

Connector Gender

Female

Termination Type

Crimp

Contact Gender

Male

Orientation

Straight

Maximum Operating Temperature

125°C

Height

48mm

Depth

44.5mm

Standards/Approvals

IEC 60529, UL 94 V-0

Width

48mm

Key Type

Type A

Better World Product

Yes

Colour

Orange

Mount Type

Panel Mount

Better World Claim

Renewable Energy Solution

IP Rating

IP67

Housing Material

Plastic

For Use With

4 Position ePower-Lite Plug with HVIL

Pin Diameter

3.6mm

ePower-Lite Connector, A Coding


From Amphenol, the ePower-Lite is a compact and lightweight hybrid electric vehicle connector. With a robust temperature resistant shell, dielectric protection for the connector is assured. The connector is field installable and repairable, and features a CPA to prevent mis-mating.

Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications.

Features and Benefits


• Compact and Lightweight Connector

• A-Coding

• Durability of over 100 mating cycles

• Waterproof: IP67

• Touch Proof: IEC 60529

• Flammability: UL 94V-0
