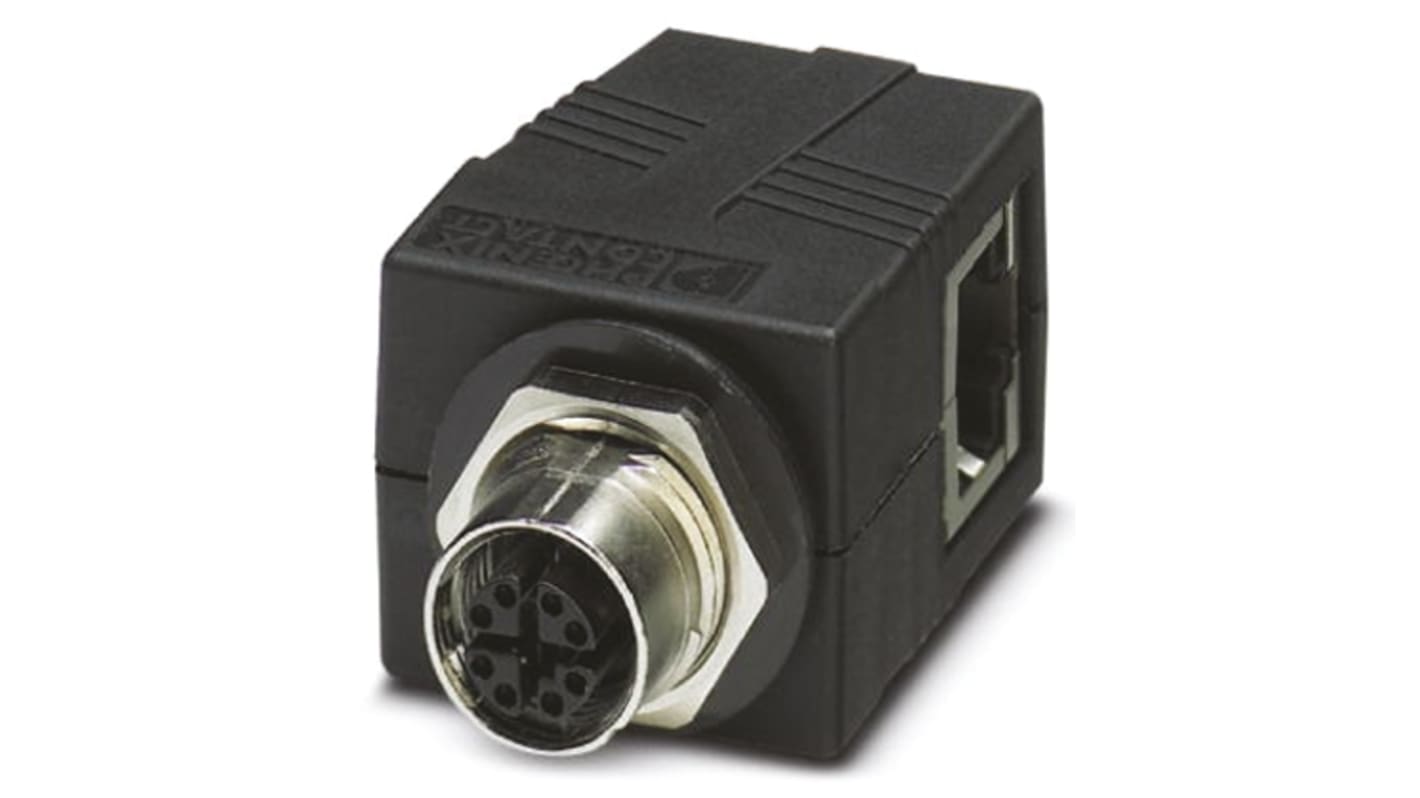

Phoenix Contact VS-BH-M12FSX-10G-RJ45/90 Series RJ45 Connector Female, Rear, Cat6a Unshielded Right Angle 1 Port 8 Way

查看所有Ethernet Connectors

小計（1 件）*

TWD2,039.00

(不含稅)

TWD2,140.95

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 11 件準備從其他地點送貨
  • 加上 9 件從 2026年5月29日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +TWD2,039.00

* 參考價格

RS庫存編號:
802-7441
製造零件編號:
1404548
製造商:
Phoenix Contact
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Phoenix Contact

Ethernet Connector Type

RJ45

Product Type

RJ45 Connector

LAN Category

Cat6a

Number of Ports

1

Mount Type

Rear

Number of Ways

8

Connector Gender

Female

Connector Type

Plug

Shield Type

Unshielded

Orientation

Right Angle

IP Rating

IP67, IP65

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Depth

18.6mm

Length

49.9mm

Hazardous Area Certification

NO

Standards/Approvals

No

Width

24.4mm

Series

VS-BH-M12FSX-10G-RJ45/90

Contact Material

Copper Alloy

COO (Country of Origin):
DE

Phoenix Contact Female Cat6a RJ45 Connector, 1A Current Rating, 60V Nominal Voltage - VS-BH-M12FSX-10G-RJ45/90 - 1404548


Provide a reliable data transmission channel for your industrial systems with this female RJ45 connector from Phoenix Contact. It features M12 connectivity for the termination of control cables, along with an RJ45 Ethernet port that transmits data between computers and other electronic devices. As this port is Cat6a compatible, you can achieve transmission rates up to 10Gbps, enabling you to send and receive large packets of data in a short span of time.

The component offers highly conductive copper alloy contacts to support a stable connection. It's also shielded to prevent electromagnetic interference, giving you clear, noiseless signal transmission. Polyamide housing provides protection from impact, making it suitable for use in harsh environments. You can easily install this connector thanks to QUICKON self-stripping technology, which allows for the simple insertion of the cable into the terminal blade. This adapter is commonly used with automated industrial equipment.

• UL94 V0 certified to show that it's self-extinguishing and stops burning quickly in the event of a fire

• Light weight of 36.52g for easy handling during installation

• IP67 rating indicates it will withstand dust and immersion in up to 1m of water for 30 minutes

Phoenix Contact VARIOSUB RJ45 sockets


The phoenix contact VARIOSUB RJ45 range is the first RJ45 connector that can be used without tools.

These products use QUICKON self-stripping connection technology. The cable is easily inserted into the connector and is held against the terminal blade by a locking nut. This technology is reliable and highly resistant to the impacts and vibration frequently encountered in industrial environments. These components feature a push-pull latching mechanism for handling without the use of tools, which ensures that the coupling is securely held in place.

Features & Benefits


• All components required to create a RJ45 data socket for industrial applications.

• The RJ45 8-channel coupler models are designed for panel feed-through using mounting frames.

• They are available for Category 5 or Category 6.

• The mounting frame receives the coupler module.

• The seal supplied guarantees an IP67 protection index between the frame and the board.

• Features a frame cover for board mounting to ensure sealing when the socket module is not used.
