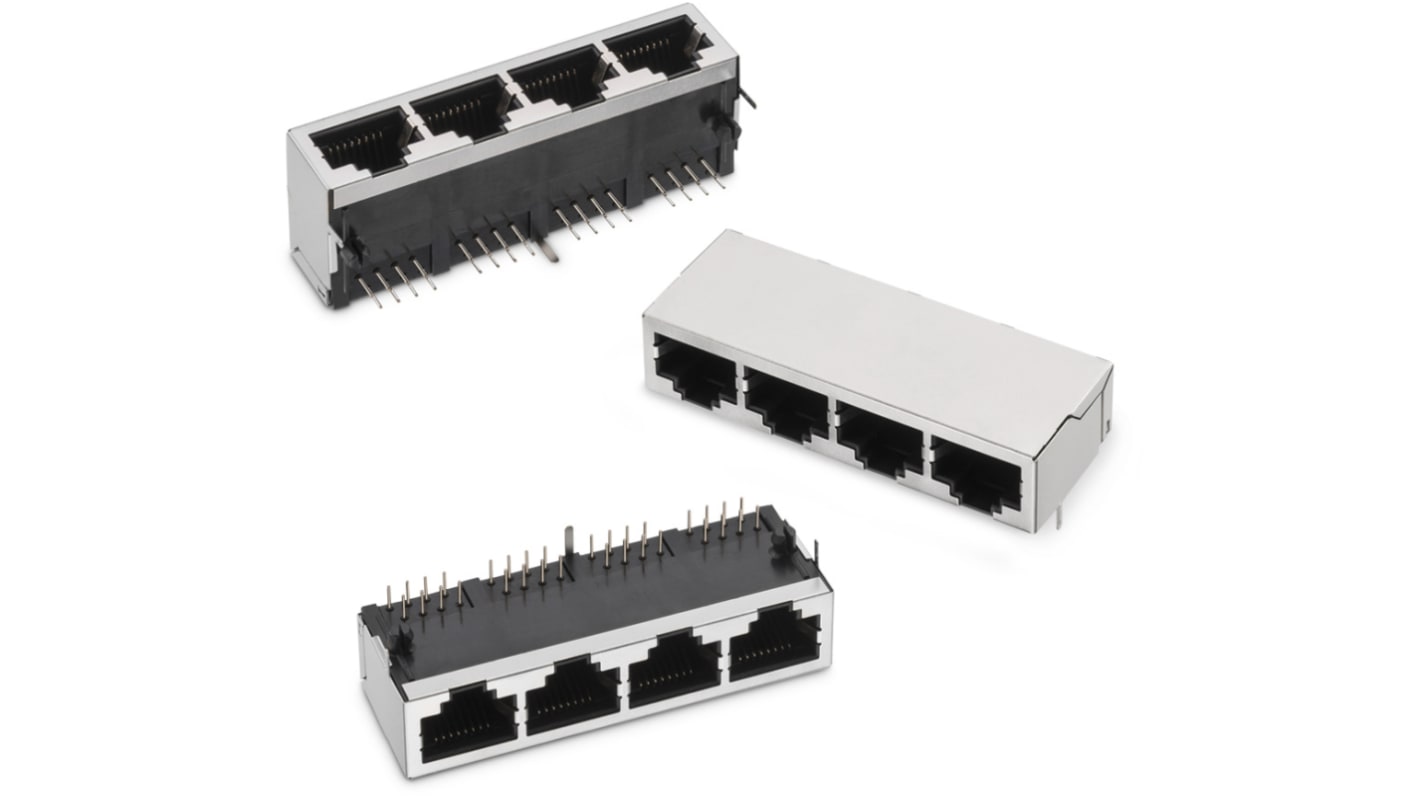

Wurth Elektronik WR-MJ Series RJ45 Connector Female, PCB Nickel Plated Bronze Shield Horizontal 4 Port 8 Way
- RS庫存編號:
- 162-1832
- 製造零件編號:
- 615032137821
- 製造商:
- Wurth Elektronik
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 托盤，共 20 件）*
TWD4,212.00
(不含稅)
TWD4,422.60
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 40 件從 2026年11月23日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每托盤* |
|---|---|---|
| 20 - 20 | TWD210.60 | TWD4,212.00 |
| 40 - 60 | TWD206.00 | TWD4,120.00 |
| 80 + | TWD201.60 | TWD4,032.00 |
* 參考價格
- RS庫存編號:
- 162-1832
- 製造零件編號:
- 615032137821
- 製造商:
- Wurth Elektronik
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| Mount Type | PCB | |
| Number of Ports | 4 | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Female | |
| Shield Type | Nickel Plated Bronze | |
| Orientation | Horizontal | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Depth | 21.14mm | |
| Length | 58.9mm | |
| Standards/Approvals | No | |
| Width | 13.15mm | |
| Series | WR-MJ | |
| Hazardous Area Certification | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| 選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
Mount Type PCB | ||
Number of Ports 4 | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Female | ||
Shield Type Nickel Plated Bronze | ||
Orientation Horizontal | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Depth 21.14mm | ||
Length 58.9mm | ||
Standards/Approvals No | ||
Width 13.15mm | ||
Series WR-MJ | ||
Hazardous Area Certification No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
The Wurth Elektronik WR-MJ is a THT mount modular jack, horizontal type shielded ganged tab down with 4 Ports and 8P8C number of pins and copper alloy contact material.
RoHS compliant
Operating temperature ranging between -40°C up to +85°C
500 mating cycles
