Bel-Stewart SS-39 Series RJ45 Connector Male, Cable, Cat6a Shielded Straight 1 Port 8 Way
- RS庫存編號:
- 413-380
- 製造零件編號:
- SS-39200-011
- 製造商:
- Bel-Stewart
可享批量折扣
小計（1 包，共 5 件）*
TWD350.00
(不含稅)
TWD367.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 8,305 件準備從其他地點送貨
- 加上 5,205 件從 2026年5月27日 起發貨
- 加上 1,400 件從 2026年10月28日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 70 | TWD70.00 | TWD350.00 |
| 75 - 245 | TWD68.60 | TWD343.00 |
| 250 + | TWD67.20 | TWD336.00 |
* 參考價格
- RS庫存編號:
- 413-380
- 製造零件編號:
- SS-39200-011
- 製造商:
- Bel-Stewart
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Bel-Stewart | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6a | |
| Number of Ports | 1 | |
| Mount Type | Cable | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Series | SS-39 | |
| Width | 42.4mm | |
| Standards/Approvals | No | |
| Length | 13.71mm | |
| Hazardous Area Certification | NO | |
| Depth | 42.4mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| 選取全部 | ||
|---|---|---|
品牌 Bel-Stewart | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6a | ||
Number of Ports 1 | ||
Mount Type Cable | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Orientation Straight | ||
Series SS-39 | ||
Width 42.4mm | ||
Standards/Approvals No | ||
Length 13.71mm | ||
Hazardous Area Certification NO | ||
Depth 42.4mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

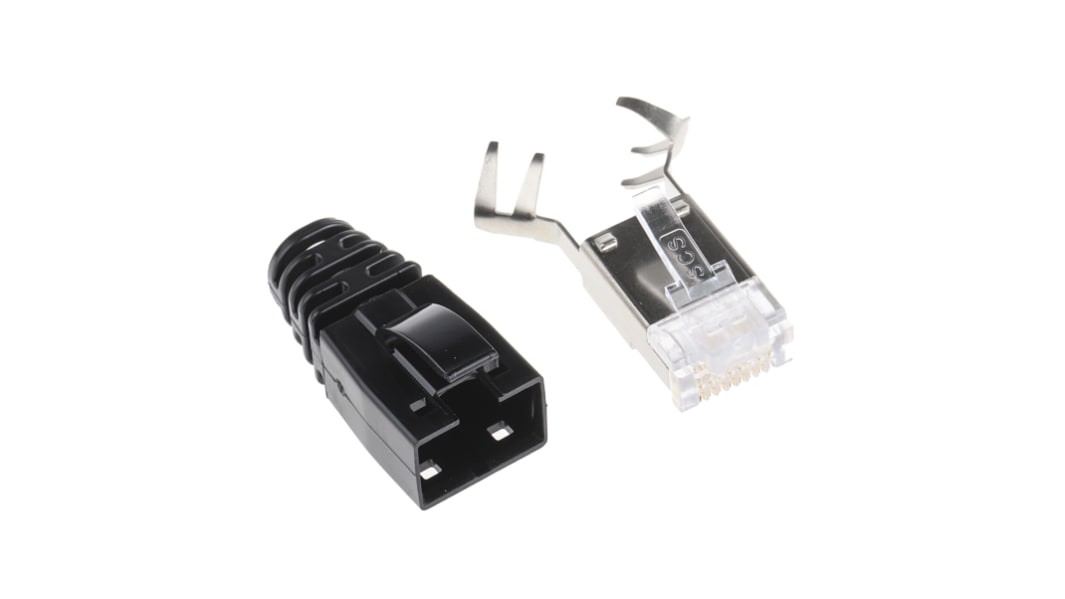

Bel Stewart RJ45 Modular Plug
This Bel Stewart RJ45 modular plug is ideal for Ethernet and telecom applications. It comes with a load bar and anti-snag strain relief boot for additional protection of the RJ45 connector. This connector is designed to fit solid or stranded wires.
Copper alloy, electro-polished contacts ensure reliability for 1000 insertion cycles. The body of the connector is made from UL 94-V0 plastic and the plugs also have a load bar for ease of assembly.
This is an 8P8C connector which is one of the most popular choices for computer networking and telecommunications applications. It stands for 8 position 8 contact.
This RJ45 modular plugs meet EIA/TIA Category 6 (Cat6) component standard when terminated to a Category 6 compliant cable, and are field installable with a Category 6 termination tool.
Versions Available:
413-380 (SS-39200-011) - Cat6a RJ45 plug Shielded with black boot
413-386 (SS-39100-011) - Cat6a RJ45 plug Unshielded with clear boot
413-396 (SS-39100-008) - Cat6 RJ45 plug Unshielded with clear boot
Shielded vs. Unshielded
Shielded RJ45 connectors feature a metal casing inside and, when used with a shielded cable, prevents interference of signal across the length of the cable. Unshielded RJ45 connectors do not have this casing. Shielded version are suitable for applications which may cover a longer distance.
