Festo, 10000N 100 mm, 574111 1330mm/s
- RS庫存編號:
- 281-1103
- 製造零件編號:
- ESBF-BS-80-100-32P
- 製造商:
- Festo
小計（1 件）*
TWD96,860.00
(不含稅)
TWD101,703.00
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年4月17日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD96,860.00 |
* 參考價格
- RS庫存編號:
- 281-1103
- 製造零件編號:
- ESBF-BS-80-100-32P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 100mm | |
| Maximum Load | 10000N | |
| Maximum Speed | 1330mm/s | |
| Series | ESBF-BS | |
| Motor Technology | Servo Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 100mm | ||
Maximum Load 10000N | ||
Maximum Speed 1330mm/s | ||
Series ESBF-BS | ||
Motor Technology Servo Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE

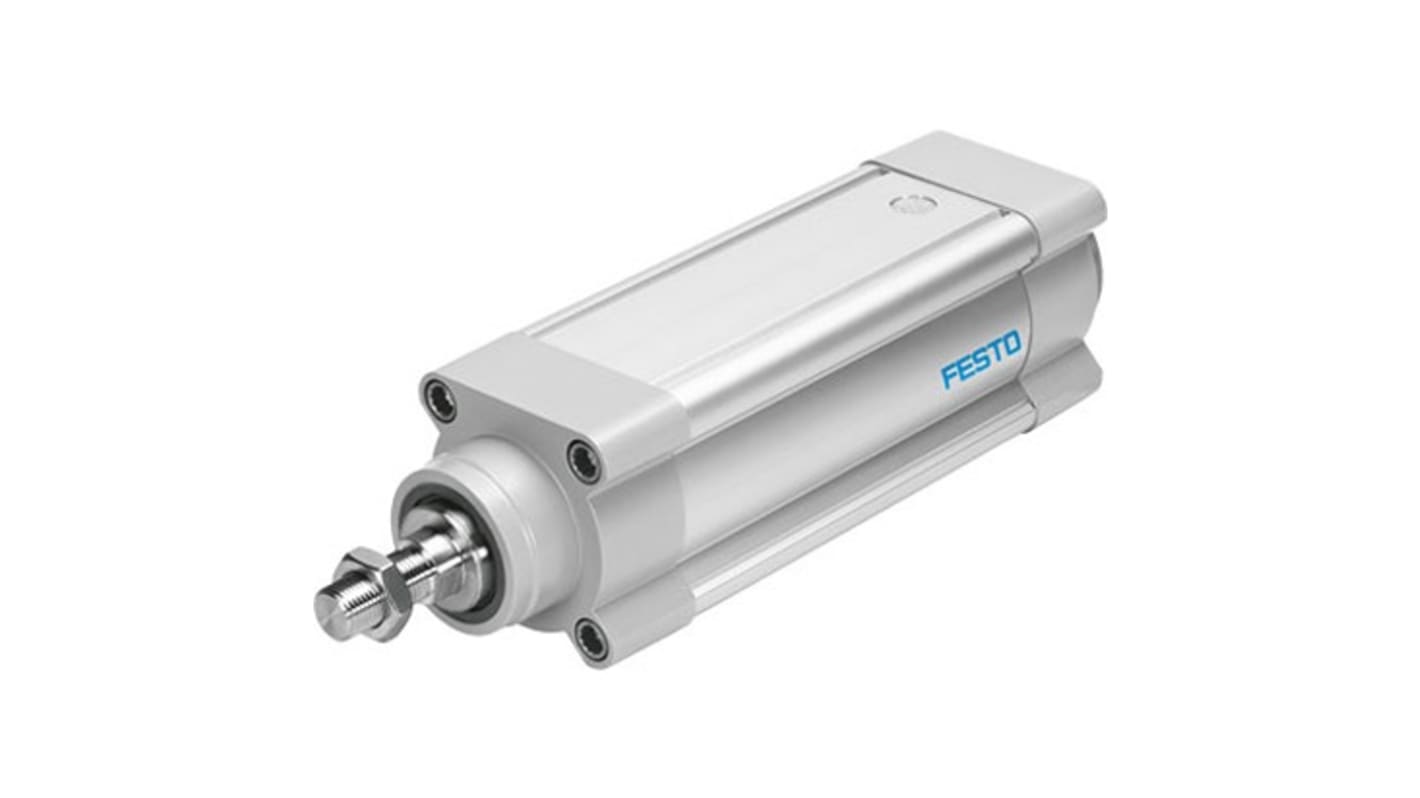

Festo ESBF-BS Series Electrical Linear Actuator, 100mm Stroke Length, 10000N Maximum Load - ESBF-BS-80-100-32P, Numeric Part Number: 574111
This electrical linear actuator converts rotary motion into linear force for automated positioning tasks in industrial systems. It is designed for continuous operation and integrates a servo-driven spindle mechanism to deliver controlled linear movement with a short travel range. The unit is suited to environments where compact, electrically driven linear actuation is required and where ambient temperatures can reach elevated operating levels.
Features & Benefits
• Ball screw drive delivers high positional accuracy and repeatability
• Servo motor enables Rapid response and dynamic motion control
• Rated for continuous operation supporting uninterrupted cycles
• Withstands ambient temperatures up to +50°C for hot environments
• Ingress protection level IP40 protects internal components from solid contact
• Capable of exerting up to 10000N for demanding load applications
• Servo motor enables Rapid response and dynamic motion control
• Rated for continuous operation supporting uninterrupted cycles
• Withstands ambient temperatures up to +50°C for hot environments
• Ingress protection level IP40 protects internal components from solid contact
• Capable of exerting up to 10000N for demanding load applications
Applications
• Suitable for pick-and-place systems in automated assembly lines
• Ideal for linear feed mechanisms in electronics manufacture
• Used with machine tools for precise component displacement
• Can be used for end-of-arm tooling actuation in robotics
• Used for test rigs requiring repeatable force application
• Ideal for linear feed mechanisms in electronics manufacture
• Used with machine tools for precise component displacement
• Can be used for end-of-arm tooling actuation in robotics
• Used for test rigs requiring repeatable force application
What type of spindle mechanism is employed and why does it matter?
A ball screw mechanism is used, providing low backlash and efficient power transmission for accurate positioning and longevity under cyclic loads.
How does the actuator perform in continuous-use scenarios?
It is specified for 100% duty cycle operation, meaning it is engineered to operate continuously without mandated rest periods under rated conditions.
What motor technology drives the unit and what are the operational advantages?
A servo motor provides precise velocity and position control, enabling high-speed operation and tight motion profiles for automation tasks.
What protection and material considerations affect installation environment choices?
The unit has an IP40 rating which limits penetration of solid objects but does not provide protection against liquids, so it should be installed where moisture exposure is minimal.
