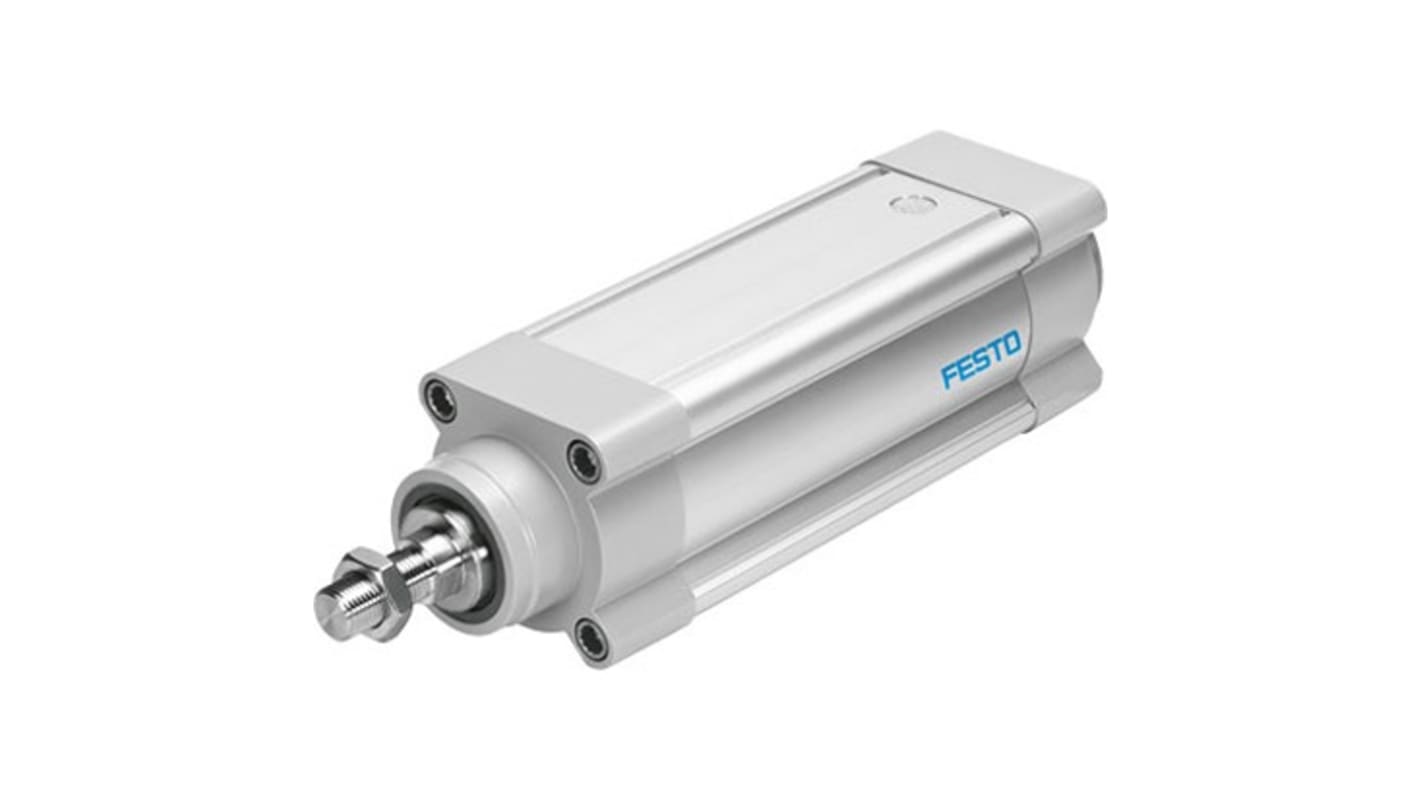

Festo ESBF-BS, 574118 Electrical Linear Actuator, 650mm/s, 100 mm
- RS庫存編號:
- 281-1089
- 製造零件編號:
- ESBF-BS-100-100-20P
- 製造商:
- Festo
小計（1 件）*
TWD102,225.00
(不含稅)
TWD107,336.25
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年5月12日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD102,225.00 |
* 參考價格
- RS庫存編號:
- 281-1089
- 製造零件編號:
- ESBF-BS-100-100-20P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 100mm | |
| Maximum Speed | 650mm/s | |
| Series | ESBF-BS | |
| Motor Technology | Servo Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 100mm | ||
Maximum Speed 650mm/s | ||
Series ESBF-BS | ||
Motor Technology Servo Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo ESBF-BS Series Electric Linear Actuator, 100mm Maximum Stroke Length, 17000N Maximum Force - ESBF-BS-100-100-20P, Numeric Part Number:574118
This electric linear actuator is a high-performance device designed for precise motion control. With a maximum stroke length of 100mm and the ability to withstand loads of up to 1700kg, it is ideal for various industrial applications. The actuator is engineered with a servo motor, allowing for quick operation at speeds of up to 650mm/s, making it a reliable choice for automation tasks.
Features & Benefits
• Ideal for high load applications with a capacity of 1700kg
• Achieves a no-load speed of 650mm/s for efficient operation
• Built with a precision ball screw design for smooth movement
• Maintains 100% duty cycle for continuous operation
• Features IP40 rating for protection against solid objects
• Compact design compatible with optional mounting positions
Applications
• Utilised in automated assembly lines for precise component placement
• Employed in robotics for accurate positioning and movement
• Used in food processing equipment where corrosion resistance is crucial
• Applied in packaging machinery for reliable material handling
What is the maximum speed and how does it impact operational efficiency?
The actuator operates at a maximum speed of 650mm/s without load, significantly enhancing operational efficiency in applications that require rapid movement and responsiveness.
What type of motor technology is integrated into this actuator?
This actuator uses servo motor technology, which allows for precise control and high performance during operation, catering to applications that demand accuracy.
What is the significance of the IP40 rating for this actuator?
The IP40 rating indicates protection against solid objects larger than 1mm, ensuring the actuator remains functional in environments where dust accumulation might occur.
How does the actuator handle varying load conditions?
The robust design supports a maximum load of 1700kg and is equipped to maintain performance under these conditions, making it suitable for both vertical and horisontal applications.
