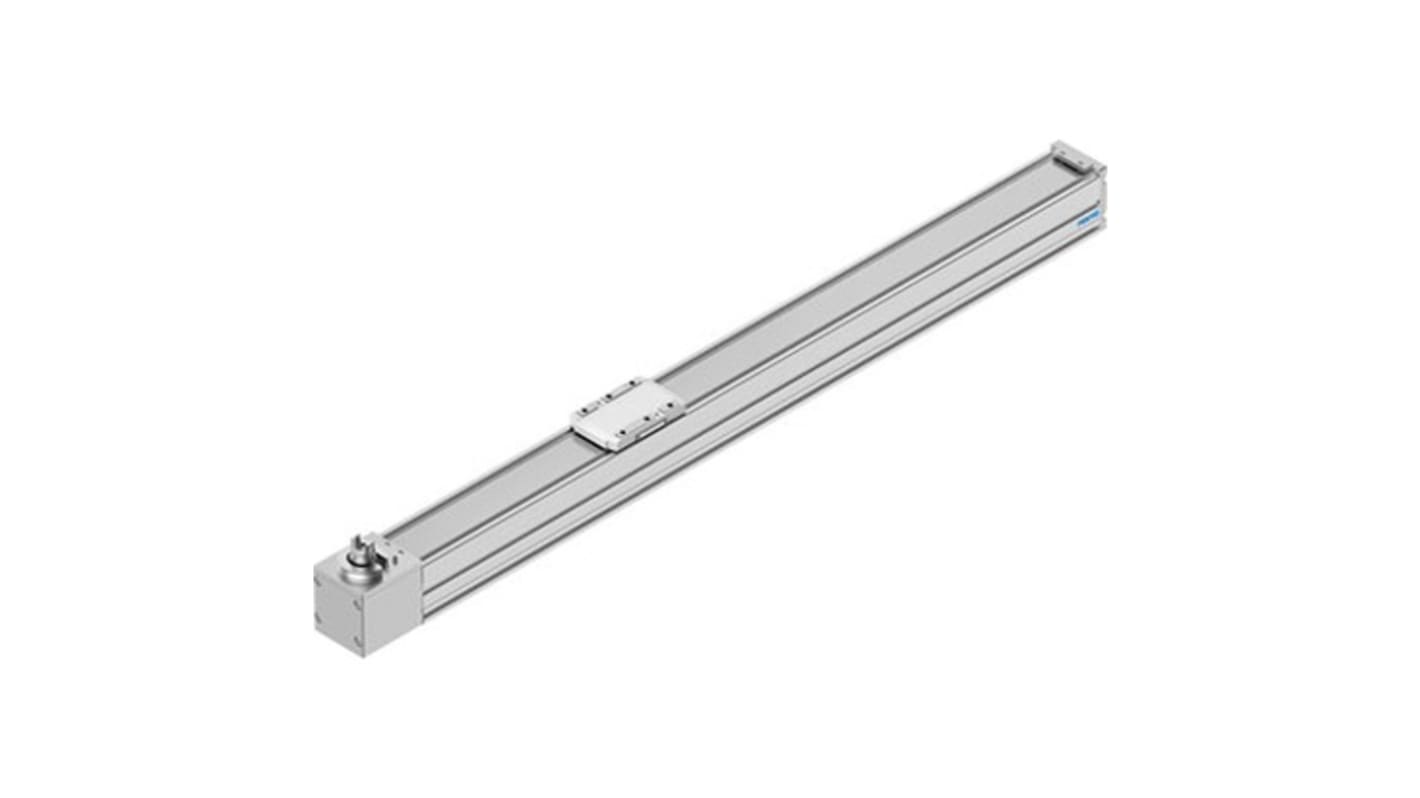

Festo ELGC, 8062773 Electrical Linear Actuator, 1200mm/s, 1000 mm
- RS庫存編號:
- 281-1072
- 製造零件編號:
- ELGC-TB-KF-45-1000
- 製造商:
- Festo
小計（1 件）*
TWD25,170.00
(不含稅)
TWD26,428.50
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年10月08日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD25,170.00 |
* 參考價格
- RS庫存編號:
- 281-1072
- 製造零件編號:
- ELGC-TB-KF-45-1000
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 1000mm | |
| Maximum Speed | 1200mm/s | |
| Series | ELGC | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Standards/Approvals | No | |
| Model Number | 8062773 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 1000mm | ||
Maximum Speed 1200mm/s | ||
Series ELGC | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Standards/Approvals No | ||
Model Number 8062773 | ||
- COO (Country of Origin):
- CN
Festo ELGC Series Electric Linear Actuator, 1000mm Maximum Stroke Length, 600N Maximum Load - ELGC-TB-KF-45-1000, Numeric Part Number: 8062773
This electric linear actuator is a belt-driven linear actuator expertly designed for precision and reliability. With a maximum stroke length of 1000mm, this actuator is capable of handling loads up to 600N. The unit combines advanced servo and stepper motor technologies, making it suitable for various automation applications.
Features & Benefits
• High-performance motor options provide versatility in operation
• Designed for a maximum speed of 1200 mm/s without load
• Recirculating ball bearing guide ensures smooth movement
• Capable of handling a maximum force of 880 N in lifting tasks
• IP40 rated actuator, providing protection against dust ingress
• Outstanding repetition accuracy of ±0.1mm enhances operational efficiency
Applications
• Ideal for automated manufacturing processes
• Used in systems requiring precise positioning in robotics
• Employed in assembly lines for efficient workflows
• Suitable for involving battery production
What is the importance of the maximum stroke length?
Having a maximum stroke length of 1000mm allows for extensive reach in applications, enabling users to cover larger areas without needing multiple actuators.
How do the motor technologies improve performance?
The combination of servo and stepper motors allows for both high precision and adaptability, helping to meet the diverse needs of different automation tasks with reliability.
What kind of maintenance is required for this actuator?
This actuator comes with lifetime lubrication, meaning minimal maintenance is needed, which results in lower operational costs over time.
How does the unit's IP rating affect its usability?
With an IP40 rating, the actuator is adequately protected against dust, making it suitable for a variety of environments, including industrial settings.
