Festo ELGA-BS, 8041839 Ball Screw Assembly, 600mm/s, 400 mm
- RS庫存編號:
- 281-0451
- 製造零件編號:
- ELGA-BS-KF-120-400-0H-10P-ML
- 製造商:
- Festo
小計（1 件）*
TWD115,958.00
(不含稅)
TWD121,755.90
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年10月01日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD115,958.00 |
* 參考價格
- RS庫存編號:
- 281-0451
- 製造零件編號:
- ELGA-BS-KF-120-400-0H-10P-ML
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Ball Screw Assembly | |
| Stroke Length | 400mm | |
| Maximum Speed | 600mm/s | |
| Series | ELGA-BS | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Guide Type | Ball Bearing | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Model Number | 8041839 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Ball Screw Assembly | ||
Stroke Length 400mm | ||
Maximum Speed 600mm/s | ||
Series ELGA-BS | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Guide Type Ball Bearing | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Model Number 8041839 | ||
- COO (Country of Origin):
- DE

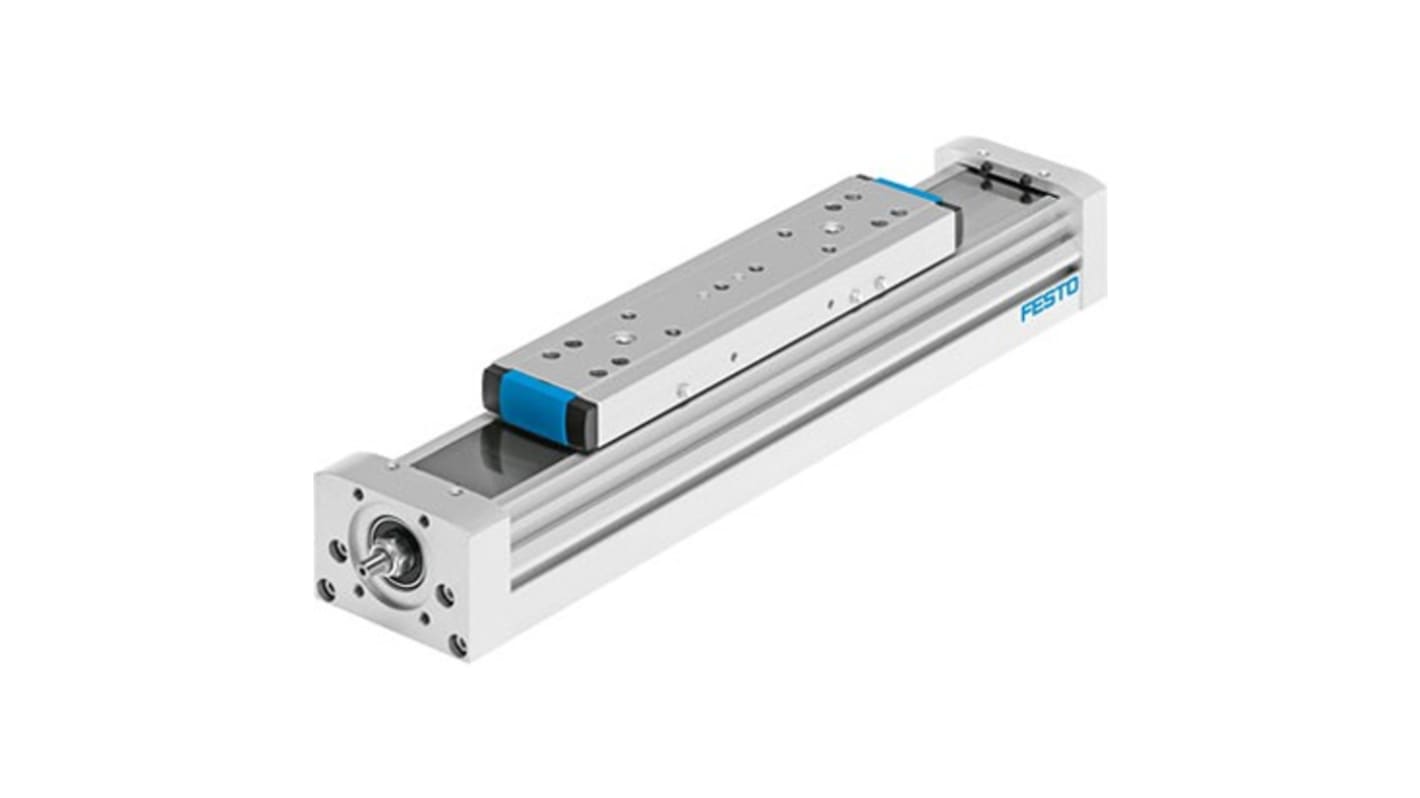

Festo ELGA-BS Series Electric Linear Actuator, 400mm Stroke Length, 600mm/s Maximum Speed - ELGA-BS-KF-120-400-0H-10P-ML, Numeric Part Number: 8041839
This electric linear actuator is designed to provide high-speed and precise motion control in various automation applications. With a maximum stroke length of 400mm, this screw-driven actuator boasts an impressive no-load speed of 600mm/s, making it suitable for demanding tasks. Its Durable construction and IP40 rating ensure it can withstand standard industrial environments while delivering consistent performance.
Features & Benefits
• Screw-driven design enables precise positioning and control
• Versatile motor technology options include servo and stepper motors
• 100% duty cycle allows continuous operation for demanding tasks
• Compact dimensions make it Ideal for space-constrained installations
• Versatile motor technology options include servo and stepper motors
• 100% duty cycle allows continuous operation for demanding tasks
• Compact dimensions make it Ideal for space-constrained installations
Applications
• Used in automated assembly lines for improved efficiency
• Ideal for robotics where precision motion is essential
• Applicable in material handling systems for effective load movement
• Utilised in testing equipment for accurate measurements and adjustments
• Suitable for packaging machinery requiring Rapid linear movement
• Ideal for robotics where precision motion is essential
• Applicable in material handling systems for effective load movement
• Utilised in testing equipment for accurate measurements and adjustments
• Suitable for packaging machinery requiring Rapid linear movement
What type of motor technology does this actuator support?
The actuator supports both servo and stepper motor technologies, providing flexibility for specific application requirements. This allows users to select the technology that best fits their control precision and speed needs.
What is the maximum load capacity at the specified speed?
While the speed of 600mm/s is achievable without load, the actuator's load capacity depends on additional factors including stroke length and installation context. Users should consider application-specific requirements to determine suitable load limits.
How does the IP40 rating benefit the actuator's performance?
The IP40 rating indicates that the actuator is protected against solid objects larger than 1mm, which helps to prevent dust accumulation. This ensures sustained performance in environments where minor particulates are present, contributing to reliable operation.
