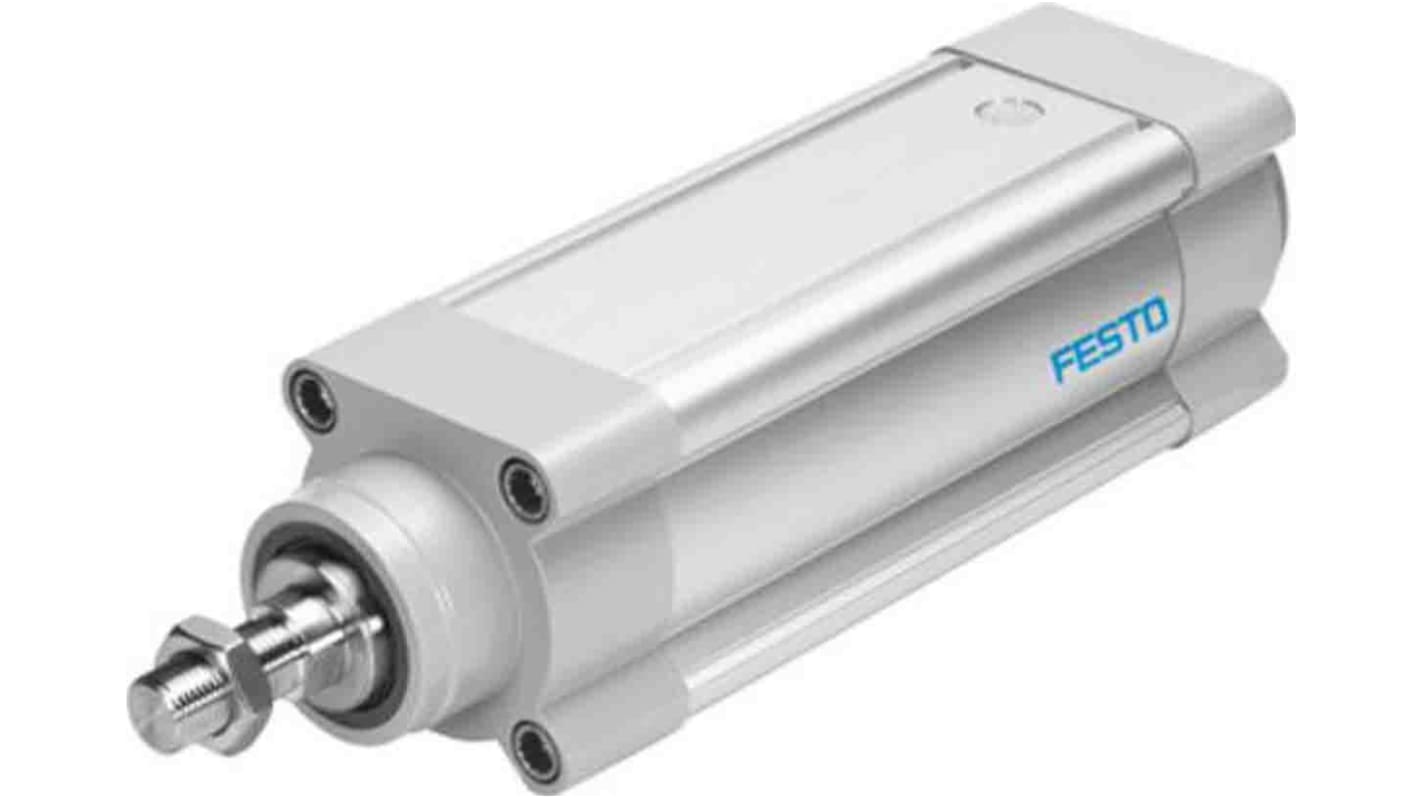

Festo, 500kg 400 mm, 8022592 300mm/s
- RS庫存編號:
- 202-9686
- 製造零件編號:
- ESBF-BS-50-400-5P
- 製造商:
- Festo
小計（1 件）*
TWD55,888.00
(不含稅)
TWD58,682.40
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年5月25日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD55,888.00 |
* 參考價格
- RS庫存編號:
- 202-9686
- 製造零件編號:
- ESBF-BS-50-400-5P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Maximum Load | 500kg | |
| Stroke Length | 400mm | |
| Maximum Speed | 300mm/s | |
| Series | ESBF | |
| Motor Technology | Stepper Motor, Servo Motor | |
| Maximum Force | 300N | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw | |
| Piston Rod Thread | M16 x 1.5 | |
| Overall Length Closed | 50mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Maximum Load 500kg | ||
Stroke Length 400mm | ||
Maximum Speed 300mm/s | ||
Series ESBF | ||
Motor Technology Stepper Motor, Servo Motor | ||
Maximum Force 300N | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Spindle Type Ball Screw | ||
Piston Rod Thread M16 x 1.5 | ||
Overall Length Closed 50mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo ESBF Series Electric Linear Actuator, 400mm Maximum Stroke Length, 500kg Maximum Load - ESBF-BS-50-400-5P, Numeric Part Number:8022592
This electric linear actuator is a high-performance rod linear actuator designed to deliver exceptional reliability and efficiency. With a maximum stroke length of 400mm and capable of handling loads up to 500kg, it is an indispensable component for various automated systems. The actuator features robust construction compliant with ISO 15552 standards, ensuring versatility in different mounting positions.
Features & Benefits
• High maximum speed of 330mm/s enhances operational efficiency
• Capable of lifting forces up to 5000N for demanding applications
• 100% duty cycle allows continuous operation without overheating
• Fitted with a ball screw for precise and smooth motion
• Offers excellent repeatability with accuracy of ±0.01mm
• IP40 rating ensures protection against solid objects, ideal for clean environments
Applications
• Used for automated material handling systems
• Applied in packaging machinery for precise movement
• Utilised in assembly lines for high load tasks
• Ideal for robotics requiring accurate linear motion control
How does the construction of this actuator contribute to its performance?
The actuator's design utilises a high-alloy stainless steel piston rod and smooth-anodised aluminium alloy cover, providing durability and resistance to corrosion. This construction supports consistent performance even in demanding conditions, allowing for operation in a range of environments.
What type of motors are compatible with this actuator, and how do they benefit its functionality?
This actuator can be equipped with either servo motors or stepper motors, offering flexibility based on specific application needs. Servo motors provide precise control over speed and position, while stepper motors enable reliable incremental movements, catering to different operational requirements.
What is the significance of the actuator’s maximum acceleration value?
The maximum acceleration of 5 m/s² allows for swift transitions between positions, improving overall cycle times and productivity in applications that require rapid movement and response. This feature is crucial for systems that depend on high-speed automation.
How is position detection achieved in this actuator?
Position detection is accomplished using a proximity switch, allowing for accurate feedback on the actuator's position. This feature is essential for ensuring precise operations in automated systems where exact positioning is critical for functionality.
