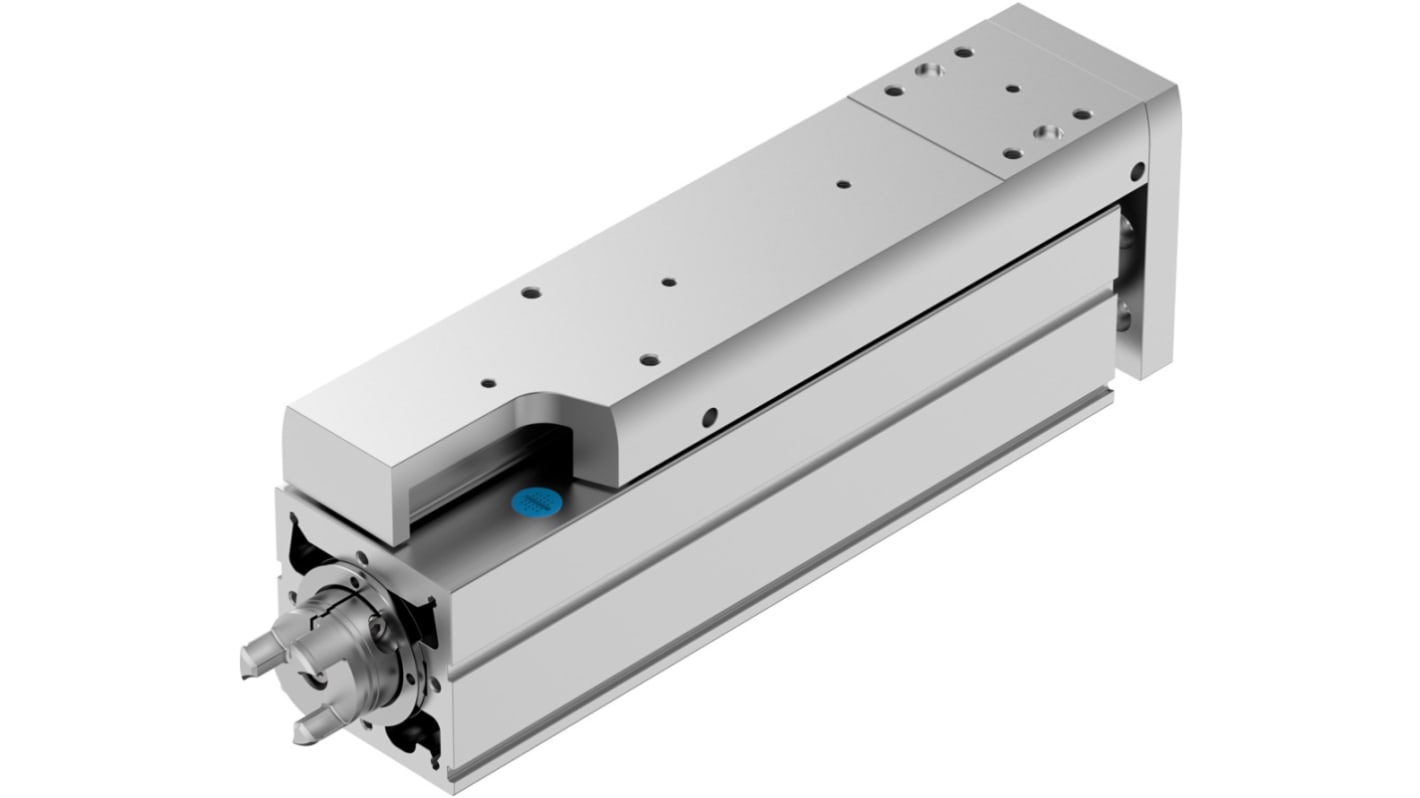

Festo Electrical Linear Actuator 200 mm 13321N 8048366 600mm/s
- RS庫存編號:
- 181-6728
- 製造零件編號:
- EGSC-BS-KF-60-200-12P
- 製造商:
- Festo
可享批量折扣
查看批量定價選項小計（1 件）*
TWD29,617.00
(不含稅)
TWD31,097.85
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年9月25日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | TWD29,617.00 |
| 5 + | TWD28,433.00 |
* 參考價格
- RS庫存編號:
- 181-6728
- 製造零件編號:
- EGSC-BS-KF-60-200-12P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 200mm | |
| Maximum Load | 13321N | |
| Maximum Speed | 600mm/s | |
| Series | EGSC-BS | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Maximum Force | 4937N | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | 0°C | |
| Overall Length Closed | 60mm | |
| Spindle Type | Ball Screw | |
| Maximum Operating Temperature | 50°C | |
| Weight | 3.46kg | |
| Standards/Approvals | RoHS | |
| Model Number | 8048366 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 200mm | ||
Maximum Load 13321N | ||
Maximum Speed 600mm/s | ||
Series EGSC-BS | ||
Motor Technology Servo Motor, Stepper Motor | ||
Maximum Force 4937N | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Minimum Operating Temperature 0°C | ||
Overall Length Closed 60mm | ||
Spindle Type Ball Screw | ||
Maximum Operating Temperature 50°C | ||
Weight 3.46kg | ||
Standards/Approvals RoHS | ||
Model Number 8048366 | ||
- COO (Country of Origin):
- CN
Festo EGSC-BS Series Electric Linear Actuator, IP40, 100% Duty Cycle - EGSC-BS-KF-60-200-12P, Numeric Part Number:8048366
This electric linear actuator provides efficient linear motion solutions for automation and industrial applications. With a stroke length of 200mm and a no-load speed of 600mm/s, it functions as a compact and powerful micro linear actuator suitable for rapid positioning tasks.
Features & Benefits
• High operational speed of 600mm/s enhances productivity
• Integrated ball screw drive improves load handling capabilities
• Supports 100% duty cycle for continuous operation
• Flexible with optional mounting positions
• Includes a proximity switch for precise position detection
• Constructed from corrosion-resistant materials to ensure longevity
Applications
• Ideal for automation in manufacturing and assembly lines
• Suitable for precise positioning in testing environments
• Used in handling systems for delicate components
• Effective for adhering to cleanroom standards
What is the maximum acceleration this actuator can achieve?
The actuator can achieve a maximum acceleration of 15m/s².
How does the position detection work?
Position detection is facilitated by an integrated proximity switch for accuracy.
Can it operate in various environmental conditions?
Yes, it operates within an ambient temperature range of 0°C to 50°C.
Is it suitable for applications with weight restrictions?
It has effective load ratings of up to 25kg in both horizontal and vertical orientations.
