- RS庫存編號:
- 178-6827
- 製造零件編號:
- MAX10-B300495A252M0-000
- 製造商:
- Ewellix Makers in Motion
當前暫無庫存,可於28/05/2024發貨,6 工作日送達。
已增加
單價(不含稅) 個
TWD18,179.00
(不含稅)
TWD19,087.95
(含稅)
單位 | Per unit |
1 + | TWD18,179.00 |
- RS庫存編號:
- 178-6827
- 製造零件編號:
- MAX10-B300495A252M0-000
- 製造商:
- Ewellix Makers in Motion
法例與合規
- COO (Country of Origin):
- CH
產品詳細資訊

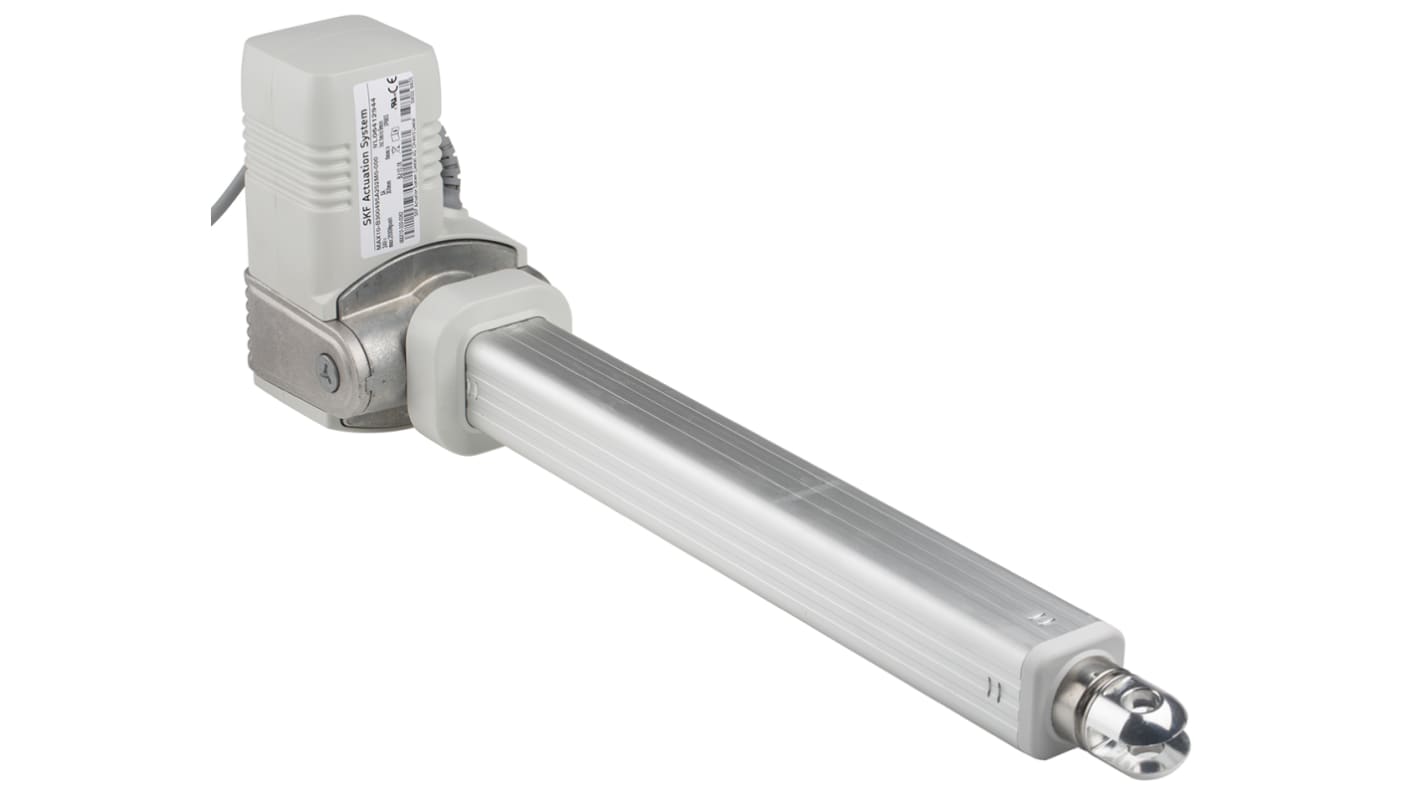

SKF Electric Linear Actuator
The SKF linear actuator is a compact designed electric actuator from the MAX10 series. It has a control unit operating switch and accessories. This actuator has a 120W motor powered with synchronous motor technology. The speed of the motor is 9mm/s. It requires 24VDC input voltage.
Features and Benefits
• 300mm stroke length
• Back up nut as standard
• Can handle maximum load up to 2000N
• Low noise level
• Back up nut as standard
• Can handle maximum load up to 2000N
• Low noise level
Applications
• Automation applications
• Industrial applications
• IT application
• Industrial applications
• IT application
規格
屬性 | 值 |
---|---|
Actuator Type | Micro Linear Actuator |
Maximum Stroke Length | 300mm |
Maximum Load | 2000N |
Input Voltage | 24V dc |
Series | MAX10 |
Maximum Speed No Load | 9mm/s |
Motor Technology | Synchronous Motor |
