Festo, 10kg 30 mm, 8102168 600mm/s
- RS庫存編號:
- 195-382
- 製造零件編號:
- EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA
- 製造商:
- Festo
小計（1 件）*
TWD28,392.00
(不含稅)
TWD29,811.60
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年9月28日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD28,392.00 |
* 參考價格
- RS庫存編號:
- 195-382
- 製造零件編號:
- EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Maximum Load | 10kg | |
| Stroke Length | 30mm | |
| Maximum Speed | 600mm/s | |
| Series | EPCE | |
| Motor Technology | Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Piston Rod Thread | M10 x 1.25 | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RCM trademark KC mark KCEMV CE mark (see ) To EU EMC In accordance with EU RoHS CE (see ) To UK instructions for EMC To UK RoHS instructions | |
| Model Number | 8102168 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Maximum Load 10kg | ||
Stroke Length 30mm | ||
Maximum Speed 600mm/s | ||
Series EPCE | ||
Motor Technology Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Piston Rod Thread M10 x 1.25 | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RCM trademark KC mark KCEMV CE mark (see ) To EU EMC In accordance with EU RoHS CE (see ) To UK instructions for EMC To UK RoHS instructions | ||
Model Number 8102168 | ||
- COO (Country of Origin):
- HU

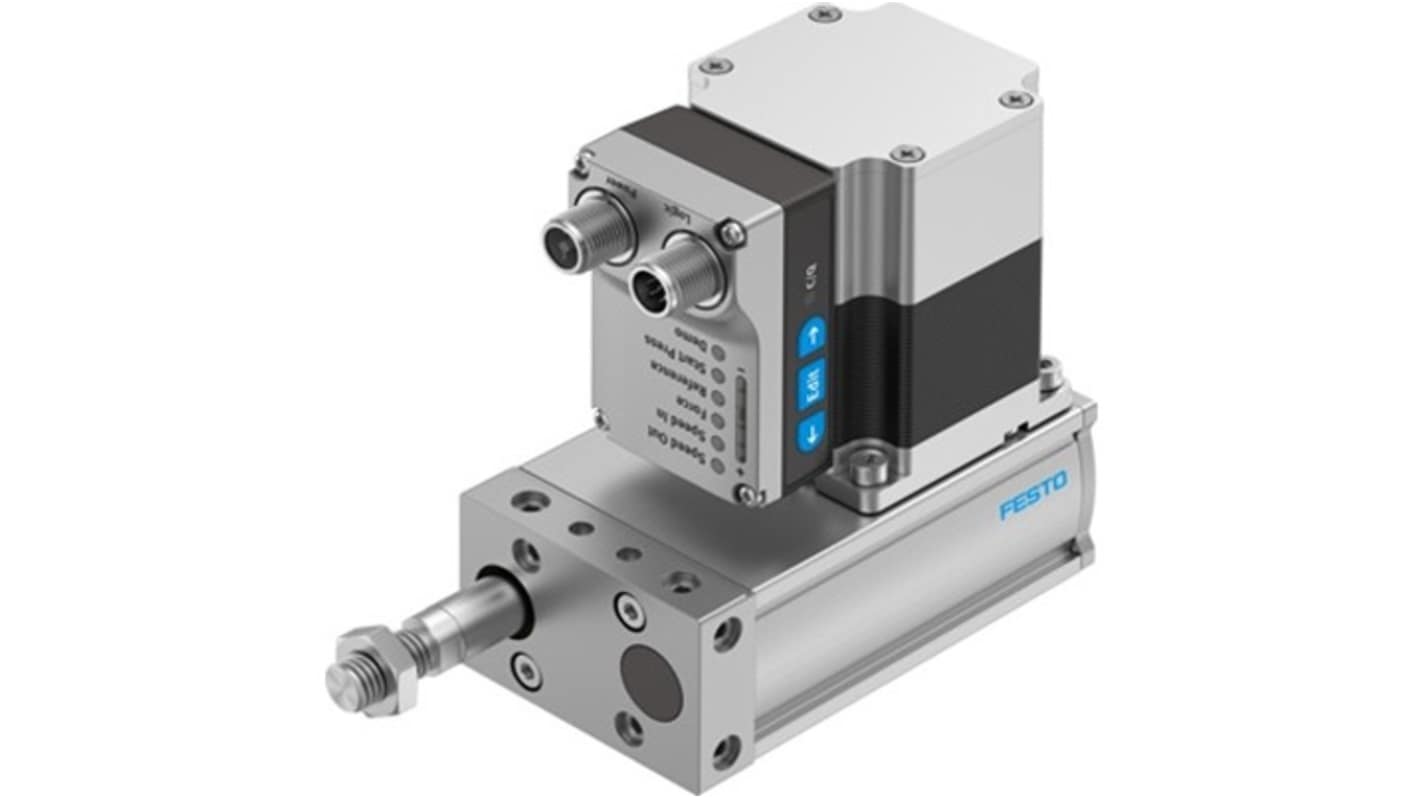

The Festo Electric Cylinder Unit delivers precision and reliability, making it an essential component for modern automation applications. Designed with an integrated drive and toothed belt mechanism, this unit provides seamless motion control, enabling smooth operation in various settings. Its compact design is not just about aesthetics; it ensures efficient performance and space saving installation. The unit combines advanced features like a stepper motor with motor encoder for exact position detection, ensuring optimal functionality.
Includes user friendly interfaces for straightforward operation
Built for easy configuration through IO Link technology
Allows for a broad operating range with high repetition accuracy
Employs a lifetime lubrication system reducing maintenance needs
