Festo ELGT, 8124452 Electrical Linear Actuator, 0.5m/s, 350 mm
- RS庫存編號:
- 194-614
- 製造零件編號:
- ELGT-BS-120-350-10P
- 製造商:
- Festo
小計（1 件）*
TWD97,112.00
(不含稅)
TWD101,967.60
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年10月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD97,112.00 |
* 參考價格
- RS庫存編號:
- 194-614
- 製造零件編號:
- ELGT-BS-120-350-10P
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 350mm | |
| Maximum Speed | 0.5m/s | |
| Series | ELGT | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP20 | |
| Guide Type | Ball Bearing | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS, ISO 146441, VDMA464 | |
| Model Number | 8124452 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 350mm | ||
Maximum Speed 0.5m/s | ||
Series ELGT | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP20 | ||
Guide Type Ball Bearing | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS, ISO 146441, VDMA464 | ||
Model Number 8124452 | ||
- COO (Country of Origin):
- CN

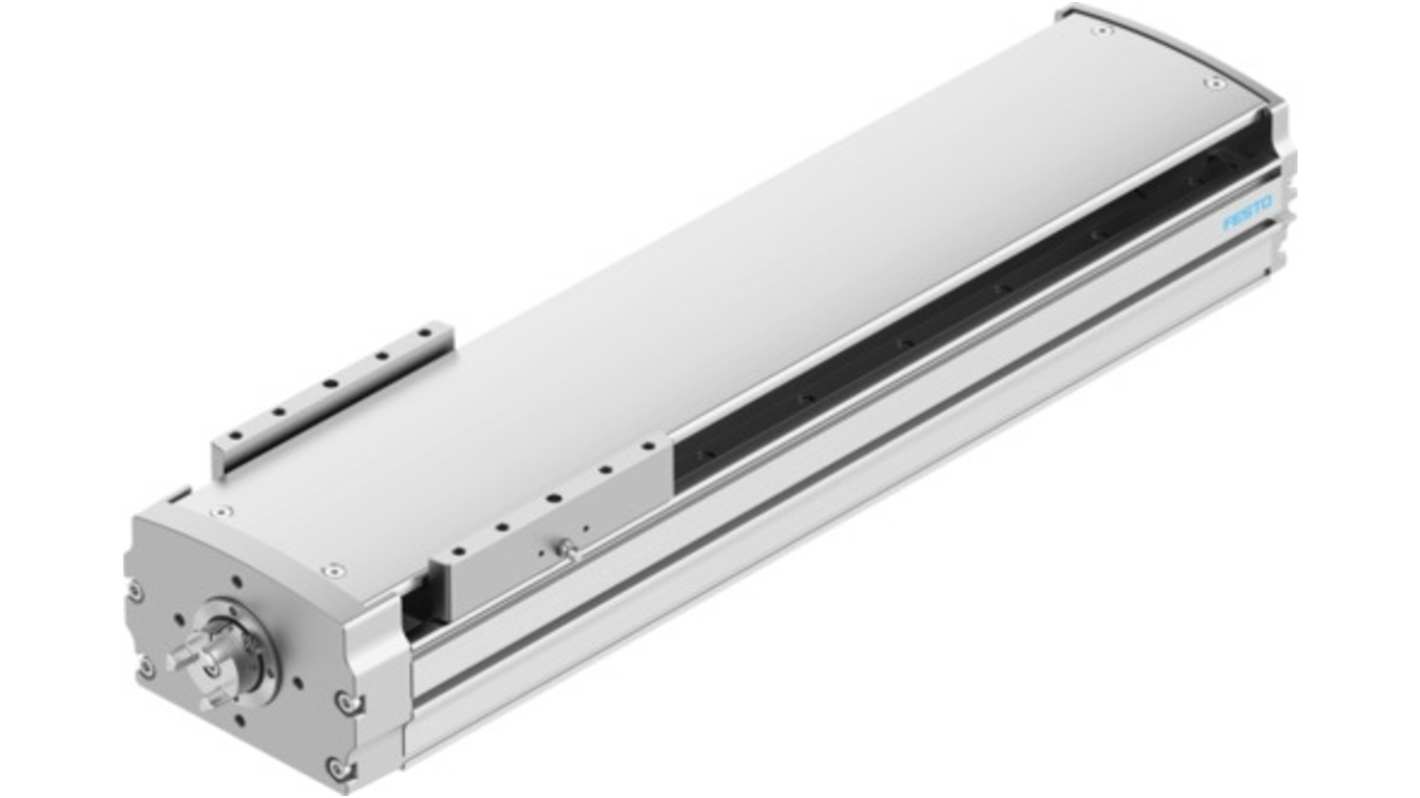

Festo ELGT Series Electrical Linear Actuator, 350mm Stroke Length, 100% Duty Cycle - ELGT-BS-120-350-10P, Numeric Part Number:8124452
This electrical linear actuator provides precise linear motion control for automation and mechanical systems. Designed for continuous operation in industrial settings, it combines guided carriage movement with selectable motor types to drive repeatable strokes up to a medium travel length. The device is intended for integration where controlled, high-frequency actuation is required within temperature-limited environments.
Features and Benefits:
• 100% duty cycle for continuous operation under load
• Ball bearing guidance reduces friction and improves positional stability
• Maximum speed 0.5m/s enables Rapid cycle response
• Stroke length 350mm permits medium-range linear travel
• IP20 protection suitable for clean, indoor installations
• Compatible with servo and stepper motors for control flexibility
• Ball bearing guidance reduces friction and improves positional stability
• Maximum speed 0.5m/s enables Rapid cycle response
• Stroke length 350mm permits medium-range linear travel
• IP20 protection suitable for clean, indoor installations
• Compatible with servo and stepper motors for control flexibility
Applications
• Suitable for pick-and-place modules in assembly automation
• Ideal for indexing tables requiring frequent linear shifts
• Used for valve actuation in electrical control systems
• Can be used for positioning stages in test and measurement rigs
• Used with robotic end-effectors for linear offset movements
• Ideal for indexing tables requiring frequent linear shifts
• Used for valve actuation in electrical control systems
• Can be used for positioning stages in test and measurement rigs
• Used with robotic end-effectors for linear offset movements
What ambient temperature range can it operate within?
It is rated for continuous use up to a maximum ambient temperature of 50°C, making it suitable for typical production‑floor environments.
Which guide mechanism ensures repeatable motion accuracy?
A ball bearing guide system provides low‑friction linear guidance, enhancing repeatability and reducing wear on the carriage.
What motor options are available for motion control?
It accepts both servo and stepper drive technologies, allowing either closed‑loop precision or open‑loop stepwise control depending on system needs.
Are there design standards relevant to its manufacture?
The unit is produced in accordance with recognised standards including RoHS and industry‑specific guidelines for cleanroom and mechanical systems.
