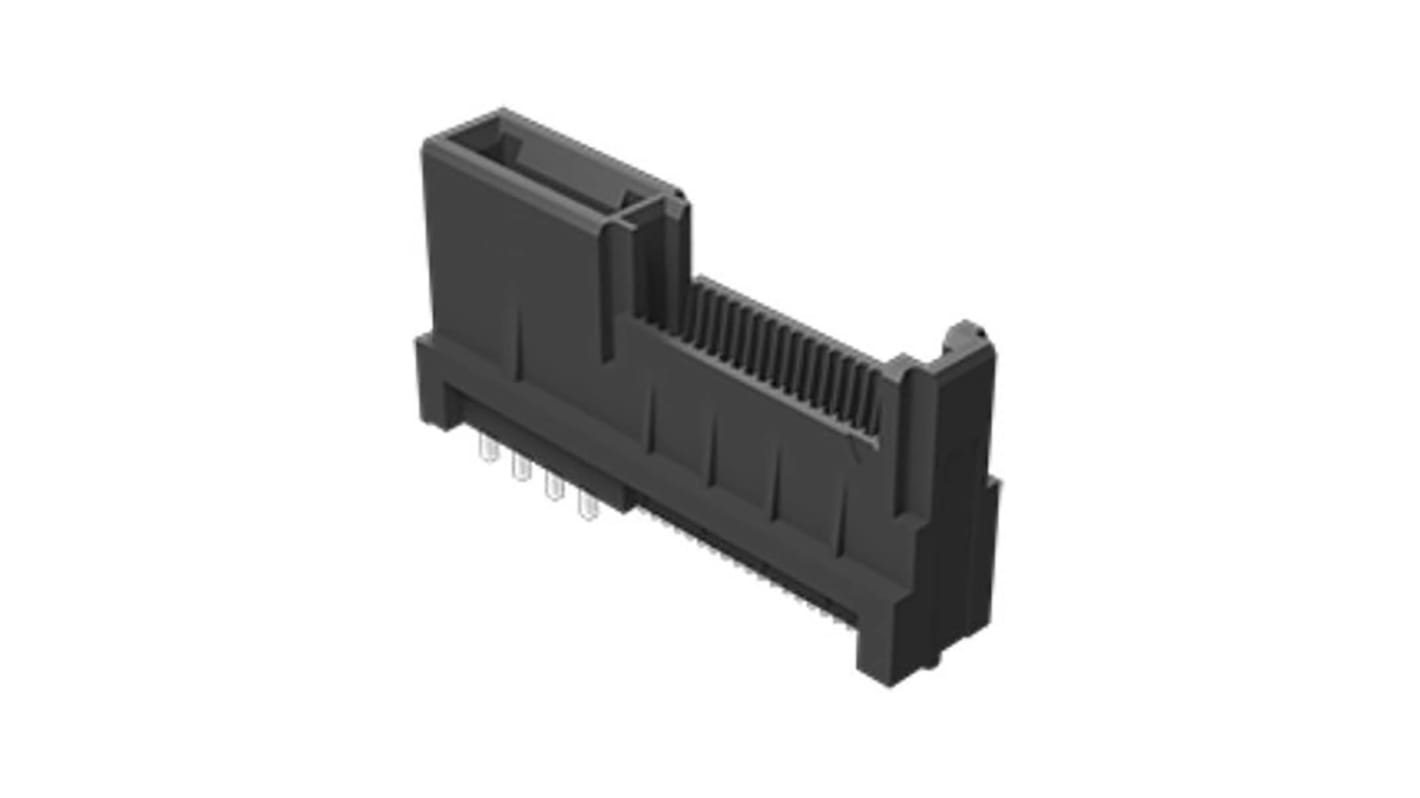

Samtec HSEC8-140-01-S-RA Series Right Angle Edge Connector Female, Surface, 80-Contacts, 800 μm Pitch, 2 Row, Solder
- RS庫存編號:
- 208-8694
- 製造零件編號:
- HSEC8-140-01-S-RA
- 製造商:
- Samtec
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 托盤，共 40 件）*
TWD13,568.00
(不含稅)
TWD14,246.40
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年11月20日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每托盤* |
|---|---|---|
| 40 - 160 | TWD339.20 | TWD13,568.00 |
| 200 + | TWD305.30 | TWD12,212.00 |
* 參考價格
- RS庫存編號:
- 208-8694
- 製造零件編號:
- HSEC8-140-01-S-RA
- 製造商:
- Samtec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Samtec | |
| Orientation | Right Angle | |
| Product Type | Edge Connector | |
| Current | 2.6A | |
| Number of Contacts | 80 | |
| Number of Rows | 2 | |
| Pitch | 800μm | |
| Connector Gender | Female | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Card Thickness | 1.6mm | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Voltage | 240V | |
| Housing Material | Liquid Crystal Polymer | |
| Standards/Approvals | No | |
| Series | HSEC8-140-01-S-RA | |
| Card Type | PCIe | |
| 選取全部 | ||
|---|---|---|
品牌 Samtec | ||
Orientation Right Angle | ||
Product Type Edge Connector | ||
Current 2.6A | ||
Number of Contacts 80 | ||
Number of Rows 2 | ||
Pitch 800μm | ||
Connector Gender Female | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Card Thickness 1.6mm | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Voltage 240V | ||
Housing Material Liquid Crystal Polymer | ||
Standards/Approvals No | ||
Series HSEC8-140-01-S-RA | ||
Card Type PCIe | ||
The Samtec Edge Connector Optional weld tab for mechanical strength. It has samtec 28+ Gbps Solution and extended life product™ (E.L.P.™).
Rugged Edge Rate® contact
Single-ended and differential pairs
Card slot: .062" (1.60 mm)
Pass-through option available (HSEC8-PE)
Optional board locks and cable latching features
