Samtec HSEC8-DV Series Vertical Edge Connector Female, Surface, 60-Contacts, 800 μm Pitch, 2 Row, Solder
- RS庫存編號:
- 179-8778
- 製造零件編號:
- HSEC8-130-01-SM-DV-A
- 製造商:
- Samtec

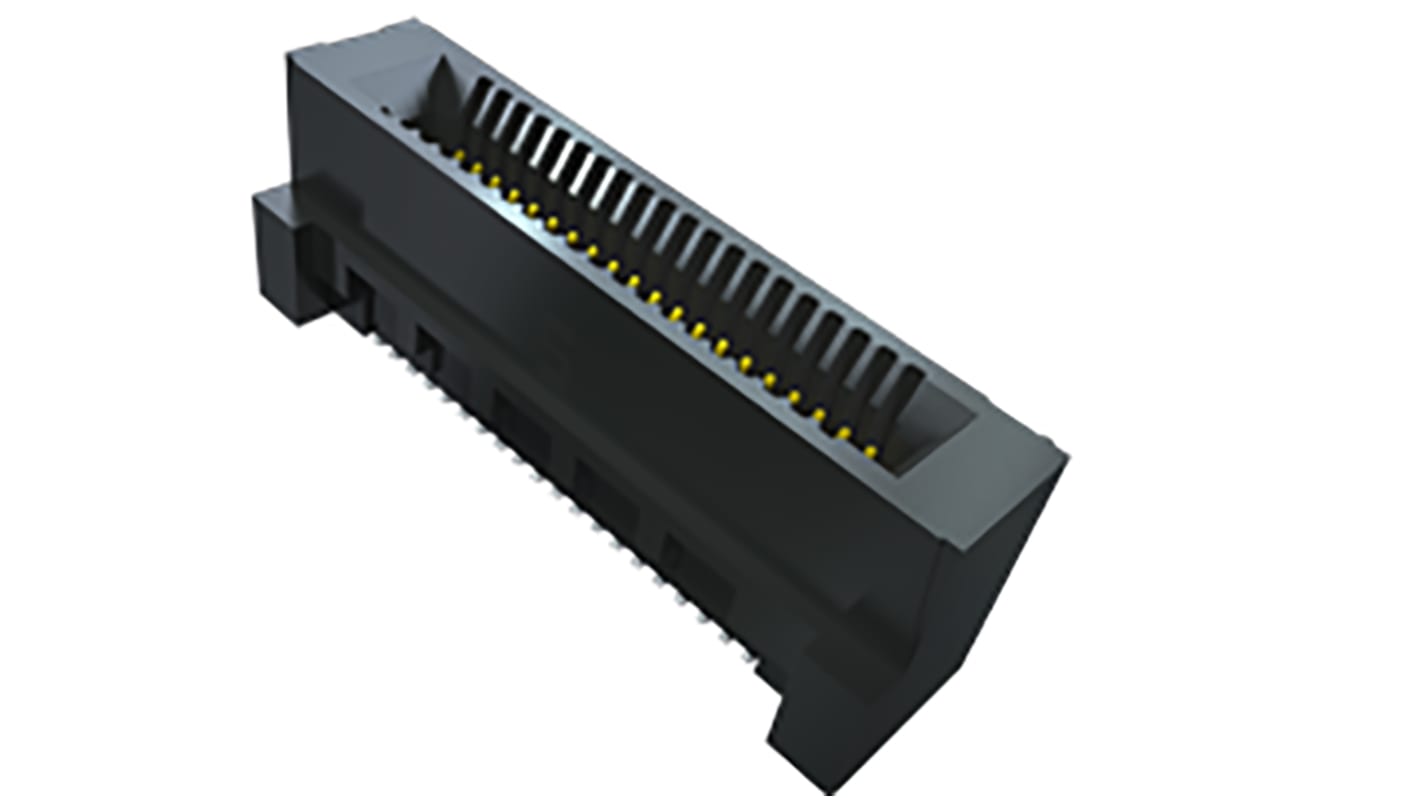

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 托盤，共 70 件）*
TWD8,848.00
(不含稅)
TWD9,290.40
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年11月19日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每托盤* |
|---|---|---|
| 70 - 70 | TWD126.40 | TWD8,848.00 |
| 140 - 210 | TWD123.60 | TWD8,652.00 |
| 280 + | TWD121.00 | TWD8,470.00 |
* 參考價格
- RS庫存編號:
- 179-8778
- 製造零件編號:
- HSEC8-130-01-SM-DV-A
- 製造商:
- Samtec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Samtec | |
| Product Type | Edge Connector | |
| Orientation | Vertical | |
| Current | 2.8A | |
| Number of Contacts | 60 | |
| Number of Rows | 2 | |
| Connector Gender | Female | |
| Pitch | 800μm | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Card Thickness | 1.6mm | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Voltage | 240V | |
| Standards/Approvals | No | |
| Housing Material | Liquid Crystal Polymer | |
| Series | HSEC8-DV | |
| Card Type | Edge | |
| 選取全部 | ||
|---|---|---|
品牌 Samtec | ||
Product Type Edge Connector | ||
Orientation Vertical | ||
Current 2.8A | ||
Number of Contacts 60 | ||
Number of Rows 2 | ||
Connector Gender Female | ||
Pitch 800μm | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Card Thickness 1.6mm | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Voltage 240V | ||
Standards/Approvals No | ||
Housing Material Liquid Crystal Polymer | ||
Series HSEC8-DV | ||
Card Type Edge | ||
- COO (Country of Origin):
- US
The Samtec, HSEC8-DV series, 0. 80mm pitch, two row, 30 positions, 2. 8A, female vertical high speed edge card socket connector has 1. 60mm card thickness, 240AC voltage rating and gold contact plating.
56 Gbps PAM4 performance
PCI Express® 3.0, 4.0 and 5.0
Edge Rate® contacts optimized for signal integrity performance and cycle life
Up to 200 positions available
Power/signal combo, press-fit tails, rugged weld tabs, locks and latches
Mating cable assemblies available
Beryllium copper contact material
Liquid crystal polymer housing material
Operating temperature ranges between -55°C to +125°C
12.6mm length
