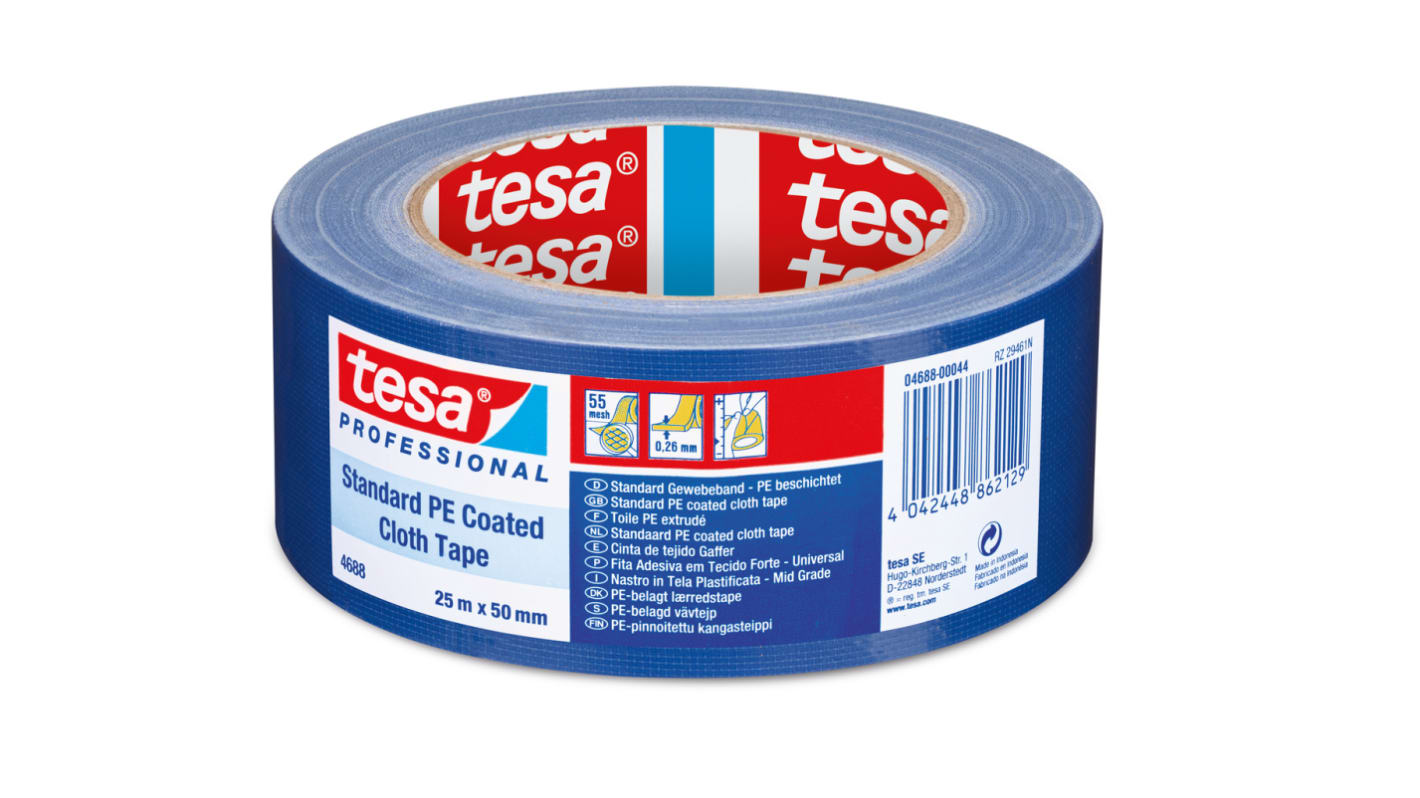

Tesa 4688 Tesa 4688 Cloth Tape, 25 m x 50mm, Blue, PE Coated Finish
- RS庫存編號:
- 282-4524
- Distrelec 貨號:
- 110-52-042
- 製造零件編號:
- 04688-00044-01
- 製造商:
- Tesa
小計(1 件)*
TWD435.00
(不含稅)
TWD456.75
(含稅)
訂單超過 $1,300.00 免費送貨
有限的庫存
- 212 件準備從其他地點送貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD435.00 |
* 參考價格
- RS庫存編號:
- 282-4524
- Distrelec 貨號:
- 110-52-042
- 製造零件編號:
- 04688-00044-01
- 製造商:
- Tesa
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Tesa | |
| Product Type | Cloth Tape | |
| Colour | Blue | |
| Tape Type | Cloth Tape | |
| Width | 50mm | |
| Length | 25m | |
| Backing Material | Polyethylene Cloth | |
| Thickness | 260μm | |
| Adhesive Material | Natural Rubber | |
| Adhesion Strength | 4.50N/cm | |
| Elongation at Break | 9% | |
| Tensile Strength | 52MPa | |
| Minimum Operating Temperature | 0°C | |
| Finish | PE Coated | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | LV 312-1, TLV 9027/01/06 | |
| Trade Name | 4688 | |
| Model Number | Tesa 4688 | |
| 選取全部 | ||
|---|---|---|
品牌 Tesa | ||
Product Type Cloth Tape | ||
Colour Blue | ||
Tape Type Cloth Tape | ||
Width 50mm | ||
Length 25m | ||
Backing Material Polyethylene Cloth | ||
Thickness 260μm | ||
Adhesive Material Natural Rubber | ||
Adhesion Strength 4.50N/cm | ||
Elongation at Break 9% | ||
Tensile Strength 52MPa | ||
Minimum Operating Temperature 0°C | ||
Finish PE Coated | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals LV 312-1, TLV 9027/01/06 | ||
Trade Name 4688 | ||
Model Number Tesa 4688 | ||
豁免
- COO (Country of Origin):
- ID
TESA Cloth Tape, 50mm Width, Blue - 04688-00044-01
This cloth tape is a PE-coated, woven backing adhesive tape designed for demanding industrial and maintenance tasks. It combines a natural rubber adhesive with a polyethylene cloth backing to provide a balance of tack and substrate conformity. The product is intended for general-purpose joining, sealing and repair where moderate flexibility and surface protection are required. Operational performance accommodates elevated temperatures encountered in many production and workshop environments.
Features and Benefits:
• 4.50N/cm adhesion strength delivers secure immediate bond
• 52MPa tensile strength gives high tear resistance under load
• 0.26mm thickness provides robust surface protection during handling
• 9% elongation at break allows controlled stretch for shaping
• 110°C maximum operating temperature tolerates short-term heat exposure
• 52MPa tensile strength gives high tear resistance under load
• 0.26mm thickness provides robust surface protection during handling
• 9% elongation at break allows controlled stretch for shaping
• 110°C maximum operating temperature tolerates short-term heat exposure
Applications
• Suitable for bundling and holding components during assembly
• Ideal for temporary surface protection in manufacturing
• Used for general cloth repair and seam reinforcement
• Can be used for masking on curved or irregular surfaces
• Used with cable runs for mechanical protection and identification
• Ideal for temporary surface protection in manufacturing
• Used for general cloth repair and seam reinforcement
• Can be used for masking on curved or irregular surfaces
• Used with cable runs for mechanical protection and identification
What type of adhesive is used and what does it imply for substrates?
A natural rubber adhesive is used, offering strong initial tack and good adhesion to many common substrates including metals and plastics.
How does the backing material affect durability in abrasion situations?
The polyethylene cloth backing resists abrasion and distributes load, reducing the likelihood of premature wear in mechanical contact areas.
What roll length and handling characteristics should I expect?
The product is supplied as a 25m roll that permits extended use between replacements and easy manual application.
How will temperature affect the tapes performance in thermal processes?
The tape can operate up to 110°C, which allows short-term exposure to elevated temperatures without immediate loss of adhesive function.
