HARWIN, D2 7.62 mm Pitch Vertical 42 Way, Through Hole Standard Pin Open Frame DIL Socket, 1A
- RS庫存編號:
- 161-3658
- 製造零件編號:
- D2928-42
- 製造商:
- HARWIN

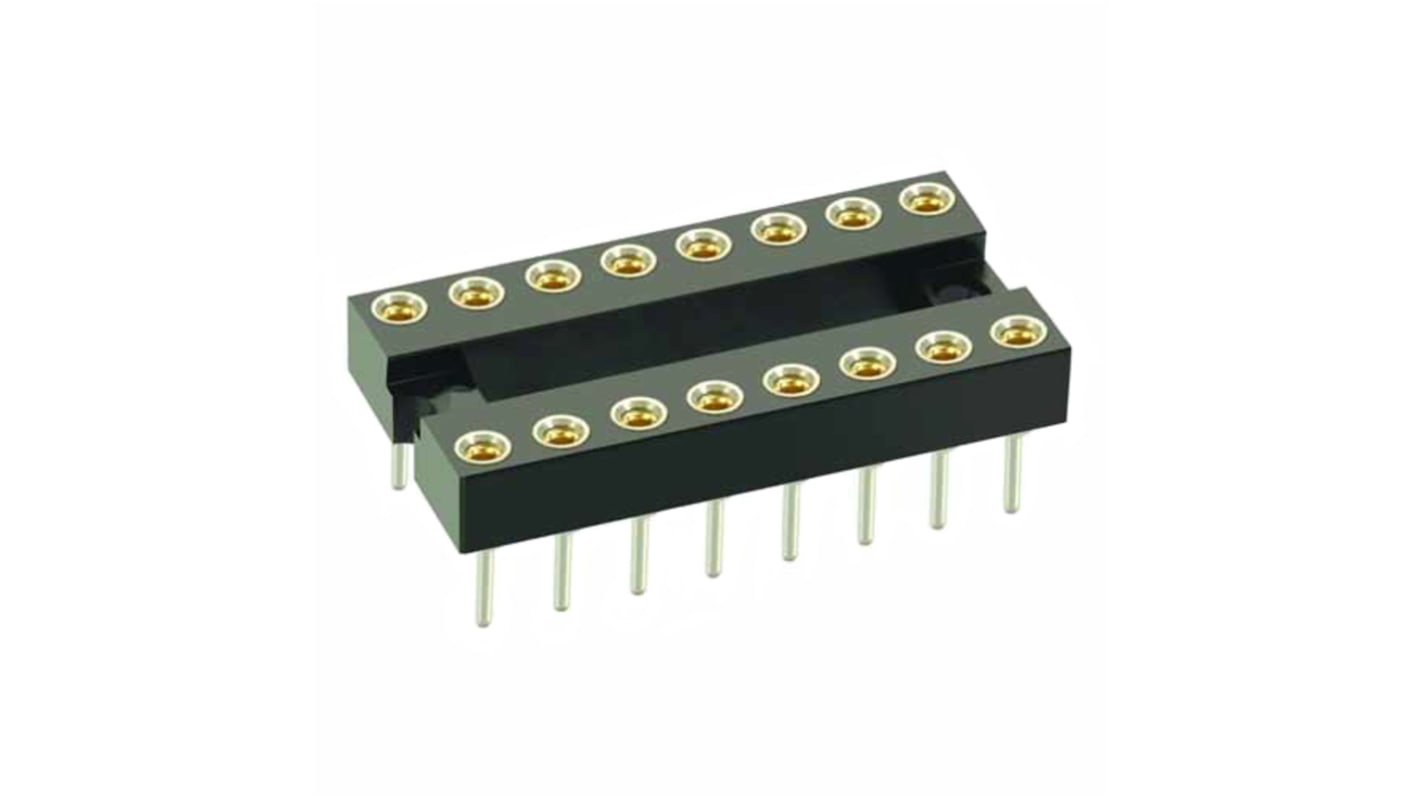

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 包，共 1 件）*
TWD103.00
(不含稅)
TWD108.15
(含稅)
添加 14 包 件可免費送貨
最後的 RS 庫存
- 最終 3 個，準備發貨
包 | 每包 |
|---|---|
| 1 - 3 | TWD103.00 |
| 4 - 6 | TWD100.00 |
| 7 + | TWD99.00 |
* 參考價格
- RS庫存編號:
- 161-3658
- 製造零件編號:
- D2928-42
- 製造商:
- HARWIN
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | HARWIN | |
| Product Type | DIL Socket | |
| Number of Contacts | 42 | |
| Mount Type | Through Hole | |
| Current | 1A | |
| Pin Type | Standard | |
| Pitch | 7.62mm | |
| Voltage | 100 V ac, 150 V dc | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Contact Plating | Gold, Tin over Nickel | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Length | 35.5mm | |
| Width | 10.02 mm | |
| Depth | 2.8mm | |
| Standards/Approvals | No | |
| Housing Material | Plastic | |
| Contact Material | Beryllium Copper Alloy | |
| Series | D2 | |
| 選取全部 | ||
|---|---|---|
品牌 HARWIN | ||
Product Type DIL Socket | ||
Number of Contacts 42 | ||
Mount Type Through Hole | ||
Current 1A | ||
Pin Type Standard | ||
Pitch 7.62mm | ||
Voltage 100 V ac, 150 V dc | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Contact Plating Gold, Tin over Nickel | ||
Orientation Vertical | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Length 35.5mm | ||
Width 10.02 mm | ||
Depth 2.8mm | ||
Standards/Approvals No | ||
Housing Material Plastic | ||
Contact Material Beryllium Copper Alloy | ||
Series D2 | ||
- COO (Country of Origin):
- GB
PC Tail IC Socket Assembly - 28 x contacts (Gold clip, Tin shell).
0.3" (7.62mm) row spacing.
Suitable for a Ø0.40-0.56mm mating pin.
