XP Power IEQ DC-DC Converter, 12V dc/ 417mA Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp -40°C

RS庫存編號:: 167-2468
製造零件編號:: IEQ0512S12
製造商:: XP Power

XP Power IEQ DC-DC Converter, 12V dc/ 417mA Output, 4.5 → 18 V dc Input, 5W, Through Hole, +90°C Max Temp -40°C

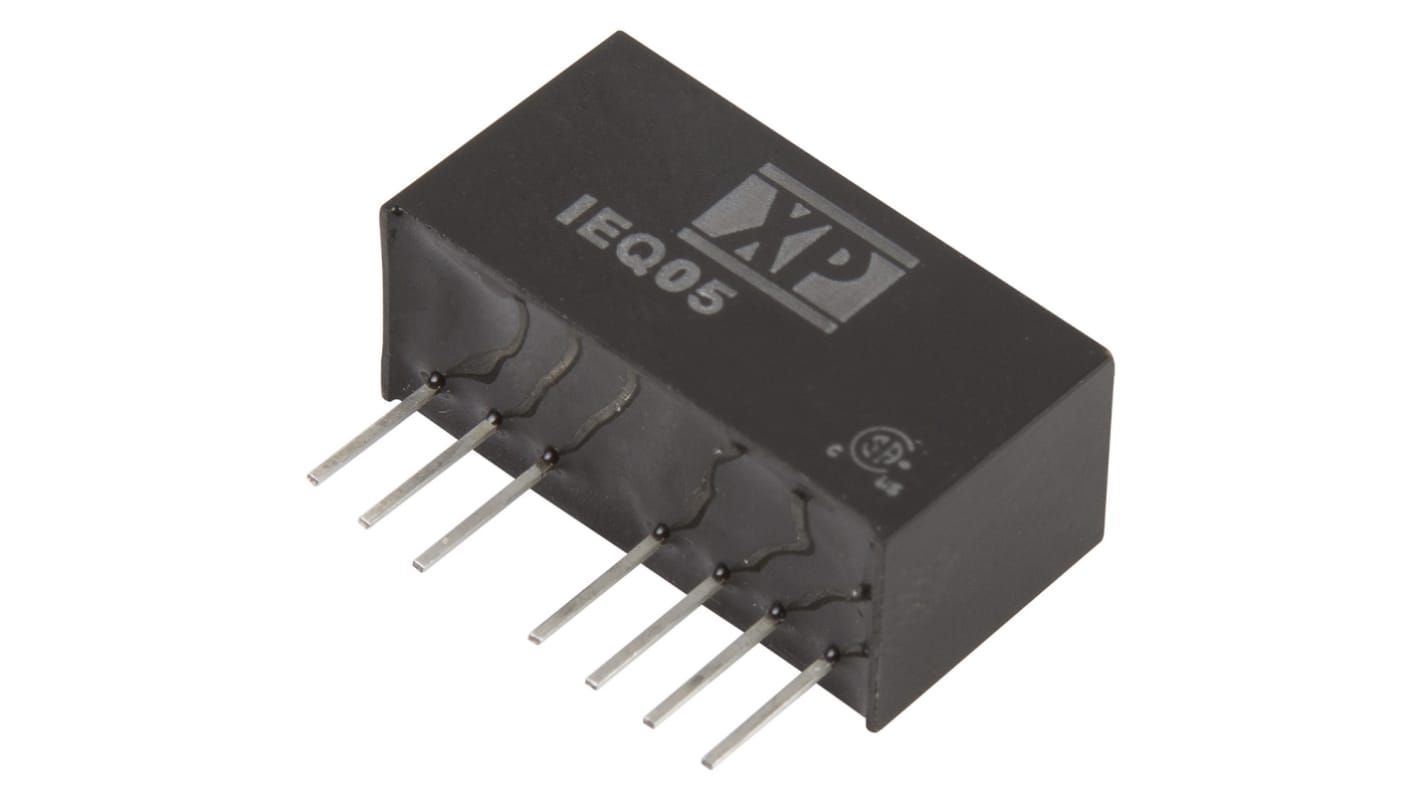

此圖片僅供參考，請參閲產品詳細資訊及規格

4 現貨庫存，可於6工作日發貨。

單價（不含稅）毎管：10 個

TWD7,212.00

(不含稅)

TWD7,572.60

Tube(s)	Per Tube	Per unit*
1 - 1	TWD7,212.00	TWD721.20
2 - 3	TWD7,053.00	TWD705.30
4 +	TWD6,904.00	TWD690.40
* 參考價格

RS庫存編號:: 167-2468
製造零件編號:: IEQ0512S12
製造商:: XP Power

產品概覽和技術數據資料表

Datasheet

Build or Request PCB Symbol & Footprint

法例與合規

COO (Country of Origin):: TW

產品詳細資訊

XP Power - IEQ05 Series of Isolated DC-DC Converters

The IEQ05 series from XP Power offers a highly reliable range of regulated single and dual output, 5 W, isolated DC-DC converters. The series has been designed in a compact SIP8 package, features 1500 VDC in isolation and an efficiency of up to 83%. These compact DC-DC converters have a wide 4:1 input range, feature remote on/off settings and have an operating temperature from -40 °C to +90 °C.

5 W isolated DC-DC converters
1500 VDC isolation
Regulated single and dual outputs
Remote on/off settings
Wide 4:1 input range
-40 °C to +90 °C Operating temperature
Efficiency up to 83%
Compact SIP8 package
Board mount

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

XP Power - DC-DC Converters

規格

屬性	值
Output Voltage	12V dc
Input Voltage Range	4.5 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	417mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP
Isolation Voltage	1.5kV dc
Width	9.3mm
Depth	11.2mm
Length	21.8mm
Series	IEQ
Load Regulation	±1%
Minimum Temperature	-40°C
Standards Met	CB, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, MIL-HDBK-217F, UL, UL 94 V-0, UL/cUL 60950-1
Maximum Temperature	+90°C
Efficiency	83%
