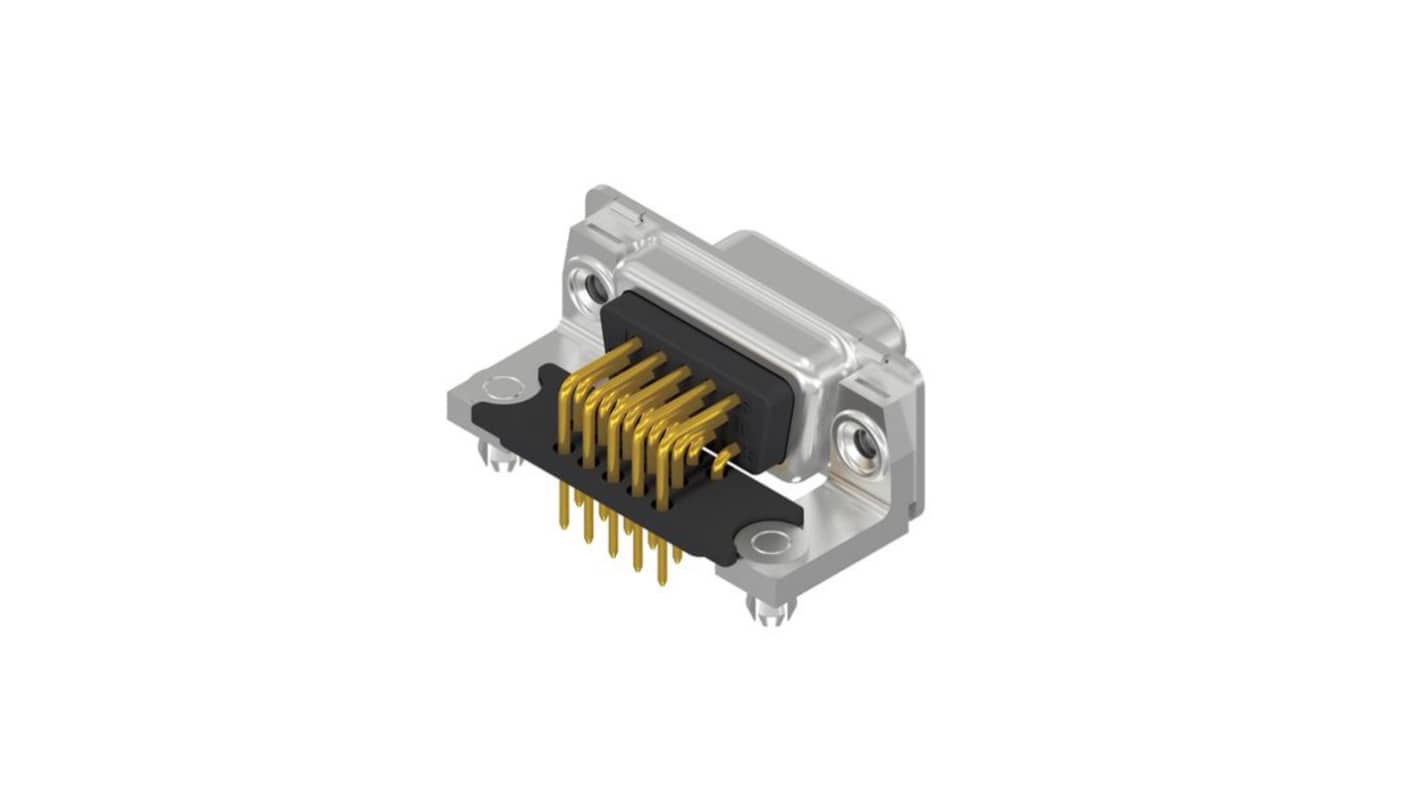

CONEC 164A181 15 Way Angled Threaded Mount D-Sub Connector, with Plug Female
- RS庫存編號:
- 300-304
- 製造零件編號:
- 164A18179X
- 製造商:
- CONEC
可享批量折扣
查看批量定價選項小計（1 件）*
TWD346.00
(不含稅)
TWD363.30
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 240 件從 2026年9月17日 起裝運發貨
- 加上 240 件從 2026年12月03日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD346.00 |
| 10 + | TWD318.00 |
* 參考價格
- RS庫存編號:
- 300-304
- 製造零件編號:
- 164A18179X
- 製造商:
- CONEC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | CONEC | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Orientation | Angled | |
| Current | 3A | |
| Mount Type | Threaded Mount | |
| Connector Gender | Female | |
| Connector Type D | Female | |
| Mounting Hardware | Plug | |
| Housing Material | Steel | |
| Voltage | 60V | |
| Termination Type | Solder Pin | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Series | 164A181 | |
| Contact Size | D-Sub | |
| 選取全部 | ||
|---|---|---|
品牌 CONEC | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Orientation Angled | ||
Current 3A | ||
Mount Type Threaded Mount | ||
Connector Gender Female | ||
Connector Type D Female | ||
Mounting Hardware Plug | ||
Housing Material Steel | ||
Voltage 60V | ||
Termination Type Solder Pin | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Series 164A181 | ||
Contact Size D-Sub | ||
豁免
The CONEC D-SUB HD Female 90° 15pos. 0.350inch features contacts made of copper alloy with plating of 8μin hard gold over a minimum of 50μin nickel. The metal brackets are made of zinc die-cast, with 300μin copper, 40 to 120μin nickel, and 120-200μin tin. The threaded inserts are made from copper alloy with a minimum of 200μin tin over 80μin nickel. The PCB snaps are also made of copper alloy with a minimum of 200μin tin over 80μin nickel. The PCB hole has a diameter of 3.1±0.1mm, with a PCB thickness of 1.6mm. The fixing plate is made of PBT GF UL 94 V-0 in black.
Metal shells of Steel minimum. 315μin tin over 40 to 80μin nickel
Black insulators of PBT GF UL 94 V-0
