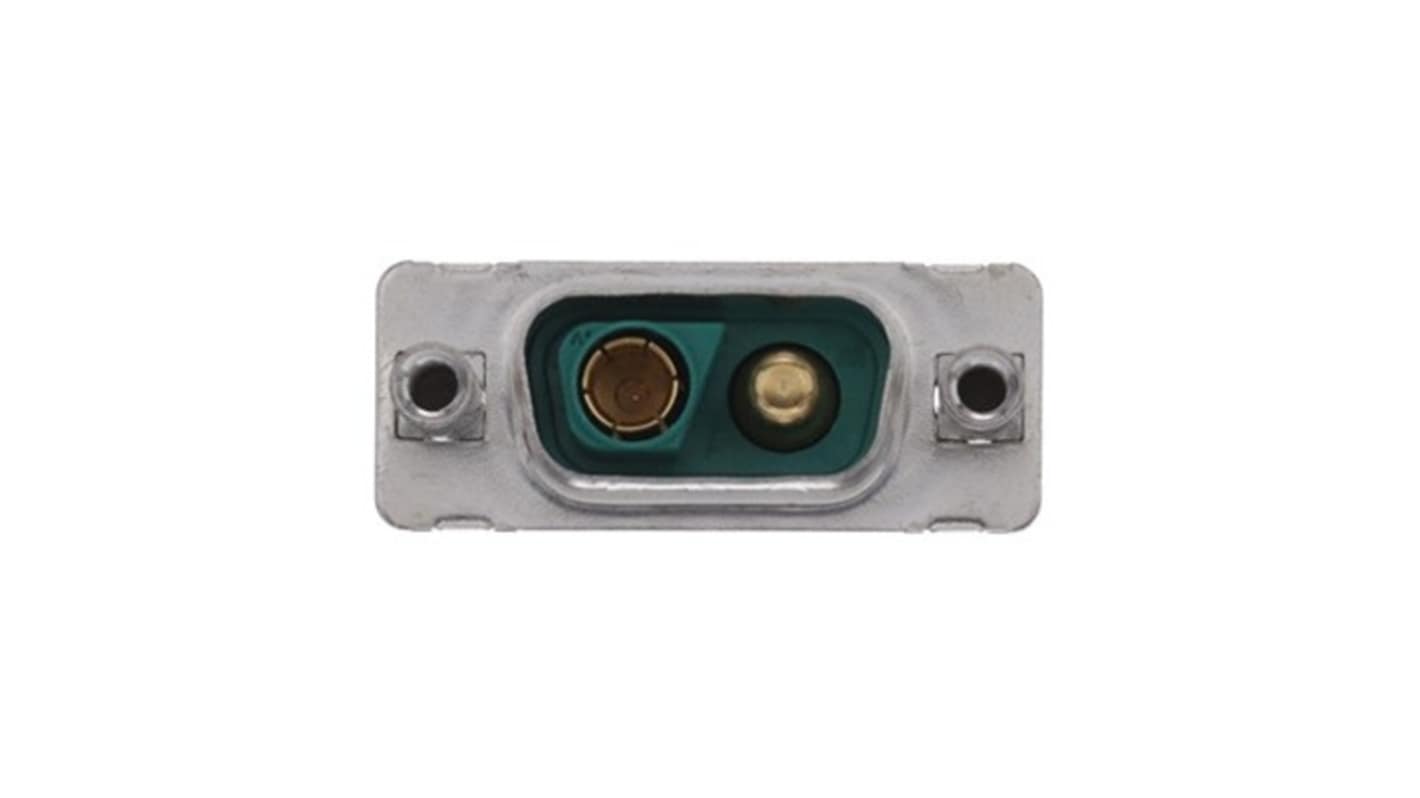

CONEC 302W2CPXX 2 Way Straight Threaded D-Sub Connector Male, with Threaded Insert
- RS庫存編號:
- 300-251
- 製造零件編號:
- 302W2CPXX52F40X
- 製造商:
- CONEC
可享批量折扣
查看批量定價選項小計（1 件）*
TWD256.00
(不含稅)
TWD268.80
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 85 件準備從其他地點送貨
- 加上 100 件從 2026年11月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | TWD256.00 |
| 10 - 24 | TWD234.00 |
| 25 + | TWD208.00 |
* 參考價格
- RS庫存編號:
- 300-251
- 製造零件編號:
- 302W2CPXX52F40X
- 製造商:
- CONEC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | CONEC | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 2 | |
| Orientation | Straight | |
| Current | 40A | |
| Mount Type | Threaded | |
| Connector Gender | Male | |
| Mounting Hardware | Threaded Insert | |
| Mixed Contact Layout | 2W2CP | |
| Housing Material | Steel | |
| Contact Gender | Male/Female | |
| Standards/Approvals | Directive 2002/95/EC RoHS compliant | |
| Contact Plating | Nickel, Gold | |
| Series | 302W2CPXX | |
| Contact Material | Copper Alloy | |
| 選取全部 | ||
|---|---|---|
品牌 CONEC | ||
Product Type D-Sub Connector | ||
Number of Contacts 2 | ||
Orientation Straight | ||
Current 40A | ||
Mount Type Threaded | ||
Connector Gender Male | ||
Mounting Hardware Threaded Insert | ||
Mixed Contact Layout 2W2CP | ||
Housing Material Steel | ||
Contact Gender Male/Female | ||
Standards/Approvals Directive 2002/95/EC RoHS compliant | ||
Contact Plating Nickel, Gold | ||
Series 302W2CPXX | ||
Contact Material Copper Alloy | ||
豁免
The CONEC D-Sub combination male features high-power contacts rated for 40A, made from copper alloy with 30μin hard gold plating over a minimum of 50μin nickel on the mating area. The termination side has 160-240μin tin plating over 80μin nickel. The female contact is positioned at A1, and the male contact is at A2. Threaded locks and spacer clips are made from copper alloy with a minimum of 200μin tin plating over 80μin nickel. The PCB hole is sized for a 3.1 x 0.1mm pitch with a PCB thickness of 2.3mm. Collars are also made from copper alloy with a minimum of 200μin tin plating over 80μin nickel.
Metal shells made of steel with a minimum 315μin tin plating over 40-80μin nickel
Insulator made of green PBT GF UL 94 V-0
