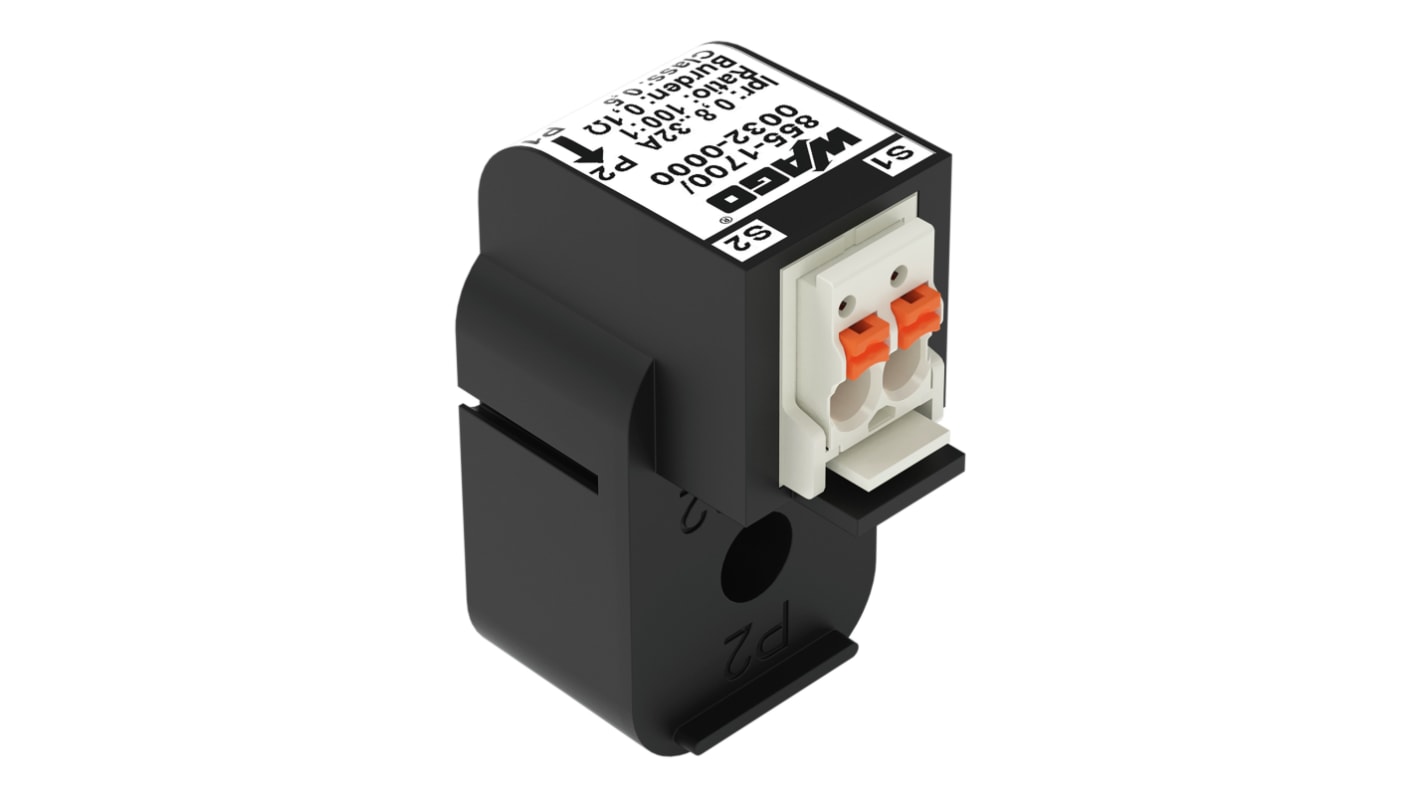

WAGO 855 Series Current Transformer 32 A 0.5 VA
- RS庫存編號:
- 279-2422
- 製造零件編號:
- 855-1700/032-000
- 製造商:
- WAGO
小計（1 件）*
TWD1,992.00
(不含稅)
TWD2,091.60
(含稅)
庫存資訊目前無法存取 - 請稍後再回來查看
單位 | 每單位 |
|---|---|
| 1 + | TWD1,992.00 |
* 參考價格
- RS庫存編號:
- 279-2422
- 製造零件編號:
- 855-1700/032-000
- 製造商:
- WAGO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | WAGO | |
| Product Type | Current Transformer | |
| Series | 855 | |
| Power Rating | 0.5VA | |
| Secondary Current | 320mA | |
| Terminal Type | Closed Current Transformer Installation On Round Cable | |
| Minimum Operating Temperature | -10°C | |
| Primary Current | 32A | |
| Maximum Operating Temperature | 55°C | |
| Width | 17mm | |
| Standards/Approvals | EN 61869-2, EN 61869-1, CE | |
| Weight | 11g | |
| Length | 34mm | |
| Depth | 23mm | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| 選取全部 | ||
|---|---|---|
品牌 WAGO | ||
Product Type Current Transformer | ||
Series 855 | ||
Power Rating 0.5VA | ||
Secondary Current 320mA | ||
Terminal Type Closed Current Transformer Installation On Round Cable | ||
Minimum Operating Temperature -10°C | ||
Primary Current 32A | ||
Maximum Operating Temperature 55°C | ||
Width 17mm | ||
Standards/Approvals EN 61869-2, EN 61869-1, CE | ||
Weight 11g | ||
Length 34mm | ||
Depth 23mm | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- NL
The WAGO plug-in current transformer features cage clamp connection technology for suitable connection. It is shockproof and it has high mechanical holding forces.
High current resistance
RoHS compliant
