可享批量折扣
小計（1 盒，共 351 件）*
TWD21,832.20
(不含稅)
TWD22,923.81
(含稅)
庫存資訊目前無法存取 - 請稍後再回來查看
單位 | 每單位 | 每盒* |
|---|---|---|
| 351 - 1404 | TWD62.20 | TWD21,832.20 |
| 1755 + | TWD56.00 | TWD19,656.00 |
* 參考價格
- RS庫存編號:
- 173-0041
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Current Transformer | |
| Primary DC Resistance | 0.6Ω | |
| Inductance | 5 mH | |
| Terminal Type | Wire | |
| Primary Current | 15A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 120°C | |
| Width | 17.2 mm | |
| Standards/Approvals | No | |
| Depth | 20.4mm | |
| Mount Type | PCB | |
| Maximum Operating Frequency | 200kHz | |
| Minimum Operating Frequency | 20kHz | |
| Bore Size | 5 mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Current Transformer | ||
Primary DC Resistance 0.6Ω | ||
Inductance 5 mH | ||
Terminal Type Wire | ||
Primary Current 15A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 120°C | ||
Width 17.2 mm | ||
Standards/Approvals No | ||
Depth 20.4mm | ||
Mount Type PCB | ||
Maximum Operating Frequency 200kHz | ||
Minimum Operating Frequency 20kHz | ||
Bore Size 5 mm | ||

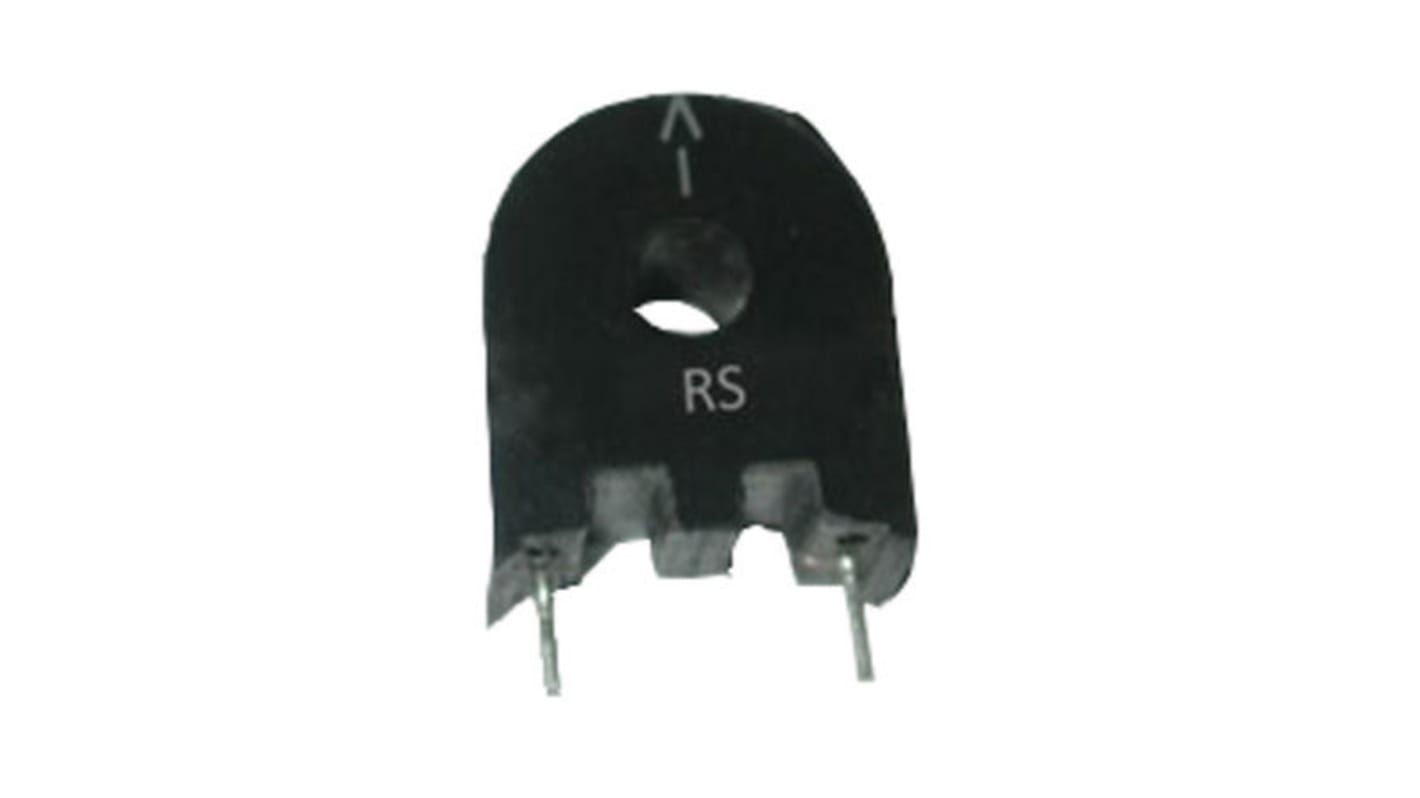

RS PRO PCB Mount Current Sense Transformer
A reliable and accurate current transformer designed to enable feedback between the output and pulse control circuitry enabling the control, monitoring or measurement of currents.;Built with a encapsulated design the current sensor transformer is fully protected and features 2 pins for easy PCB mounting. With a primary current rating of 15A and a frequency range of 20kHz to 200kHz the current sense transformer is suitable for a wide range of applications involving current control and measurement.;Suitable for use with lighting, switch controls, switch mode power supplies, motor current and sonar current applications.
Features and Benefits
Current sense transformer
PCB mount
Fully encapsulated
Frequency range of 20kHz to 200kHz
Primary current rating of 15 Amps
Primary to secondary isolated to 2500 VAC
Primary to secondary ratio of 1:50
Dimensions of 17.2 x 9.53 x 20.4 mm
Bore size of 5mm
