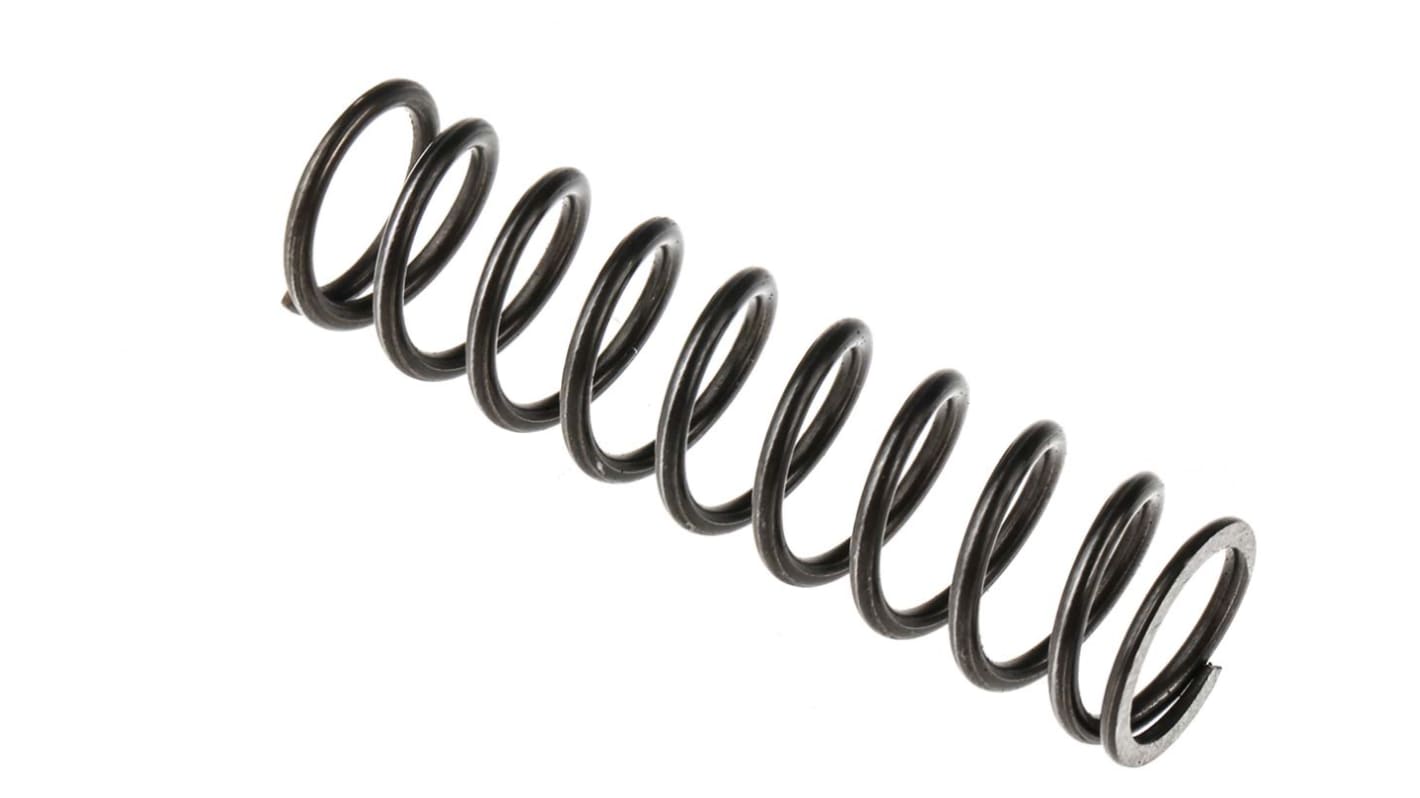

RS PRO Alloy Steel Compression Spring, 53.5mm x 14.1mm, 4.04N/mm
- RS庫存編號:
- 121-220
- 製造商:
- RS PRO
查看所有Compression Springs
310 "將在 2 工作日發貨 (本地庫存) "
1310 在6 工作日內發貨 (海外庫存)
單價(不含稅) /個 (每包:10個)
原價 TWD54.30
您付款
TWD43.40
(不含稅)
TWD45.57
(含稅)
單位 | Per unit | Per Pack* |
10 - 40 | TWD43.40 | TWD434.00 |
50 - 90 | TWD42.40 | TWD424.00 |
100 - 390 | TWD41.40 | TWD414.00 |
400 - 1990 | TWD40.40 | TWD404.00 |
2000 + | TWD33.20 | TWD332.00 |
* 參考價格 |
- RS庫存編號:
- 121-220
- 製造商:
- RS PRO
- COO (Country of Origin):
- GB
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Music Wire Compression Springs
A range of compression springs from our RS PRO offer which come in various sizes and lengths and with closed and ground and closed not ground end types. Compression springs are very popular as they can store a large amount of energy in a small space making them ideal for a great range of uses.
These RS PRO compression springs also referred to as coil springs have varying degrees of stiffness which is also known as spring rate.
Coiled springs are designed so they can push back to the springs original height when they are compressed. These springs are used to keep components from meeting.
RS PRO have a great range of compression springs with wire diameters from 0.2 to 2.2 mm and spring rates from 0.06 N/mm to 22.56 N/mm.
These RS PRO compression springs also referred to as coil springs have varying degrees of stiffness which is also known as spring rate.
Coiled springs are designed so they can push back to the springs original height when they are compressed. These springs are used to keep components from meeting.
RS PRO have a great range of compression springs with wire diameters from 0.2 to 2.2 mm and spring rates from 0.06 N/mm to 22.56 N/mm.
Features and Benefits:
Wire diameter ends up to 0.8mm are squared and unground
Wire diameter ends 1.00mm and over are squared and ground
Manufactured with a right hand helix
Wire diameter ends 1.00mm and over are squared and ground
Manufactured with a right hand helix
Typical Applications:
Compression springs are a very popular spring and can be used in a number of different industries. This type of spring can be used in:
Ball point pens
Vehicles
Mobile phones
Valves
Electrical switches
Ball point pens
Vehicles
Mobile phones
Valves
Electrical switches
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Note
The load at minimum working length is the load required to compress the spring to that length. All dimensions and forces to conform to DIN 2095 (grade 2).
規格
屬性 | 值 |
Outside Diameter | 14.1mm |
Wire Diameter | 1.6mm |
Free Length | 53.5mm |
Minimum Working Length | 20.1mm |
Load at Minimum Working Length | 135.33N |
Material | Alloy Steel |
Spring Rate | 4.04N/mm |
Ends | Closed (Square)/Ground |
