KEMET 10 mH 200 mA Common Mode Choke 4 Ω 250V ac
- RS庫存編號:
- 863-3835
- 製造零件編號:
- SU9VF-02100
- 製造商:
- KEMET

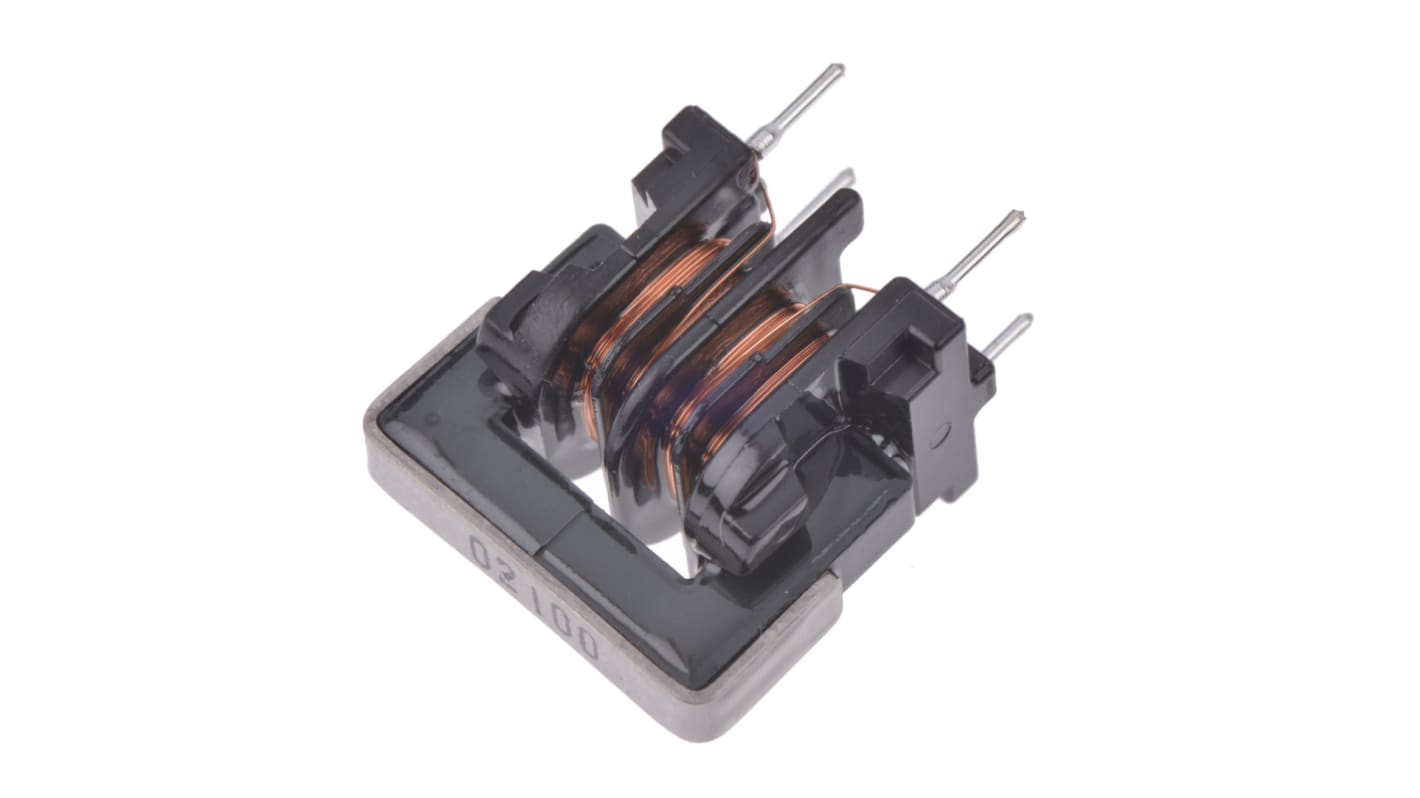

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 863-3835
- 製造零件編號:
- SU9VF-02100
- 製造商:
- KEMET
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | KEMET | |
| Inductance | 10mH | |
| Product Type | Common Mode Choke | |
| Series | SU-9VF | |
| Maximum DC Current | 200mA | |
| Packaging | Tray | |
| Test Frequency | 1kHz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 80°C | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 250V ac | |
| Standards/Approvals | RoHS | |
| Length | 17mm | |
| Termination Style | Solder Pad | |
| Height | 17mm | |
| Depth | 11mm | |
| Maximum DC Resistance | 4Ω | |
| 選取全部 | ||
|---|---|---|
品牌 KEMET | ||
Inductance 10mH | ||
Product Type Common Mode Choke | ||
Series SU-9VF | ||
Maximum DC Current 200mA | ||
Packaging Tray | ||
Test Frequency 1kHz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 80°C | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 250V ac | ||
Standards/Approvals RoHS | ||
Length 17mm | ||
Termination Style Solder Pad | ||
Height 17mm | ||
Depth 11mm | ||
Maximum DC Resistance 4Ω | ||
Kemet SU9VF/9HF Series Common Mode Chokes
Kemet SU Coils, SU9VF/9HF AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated current up to 0.7A
DC resistances as low as 0.44 Ω
Inductances up to 10 mH
