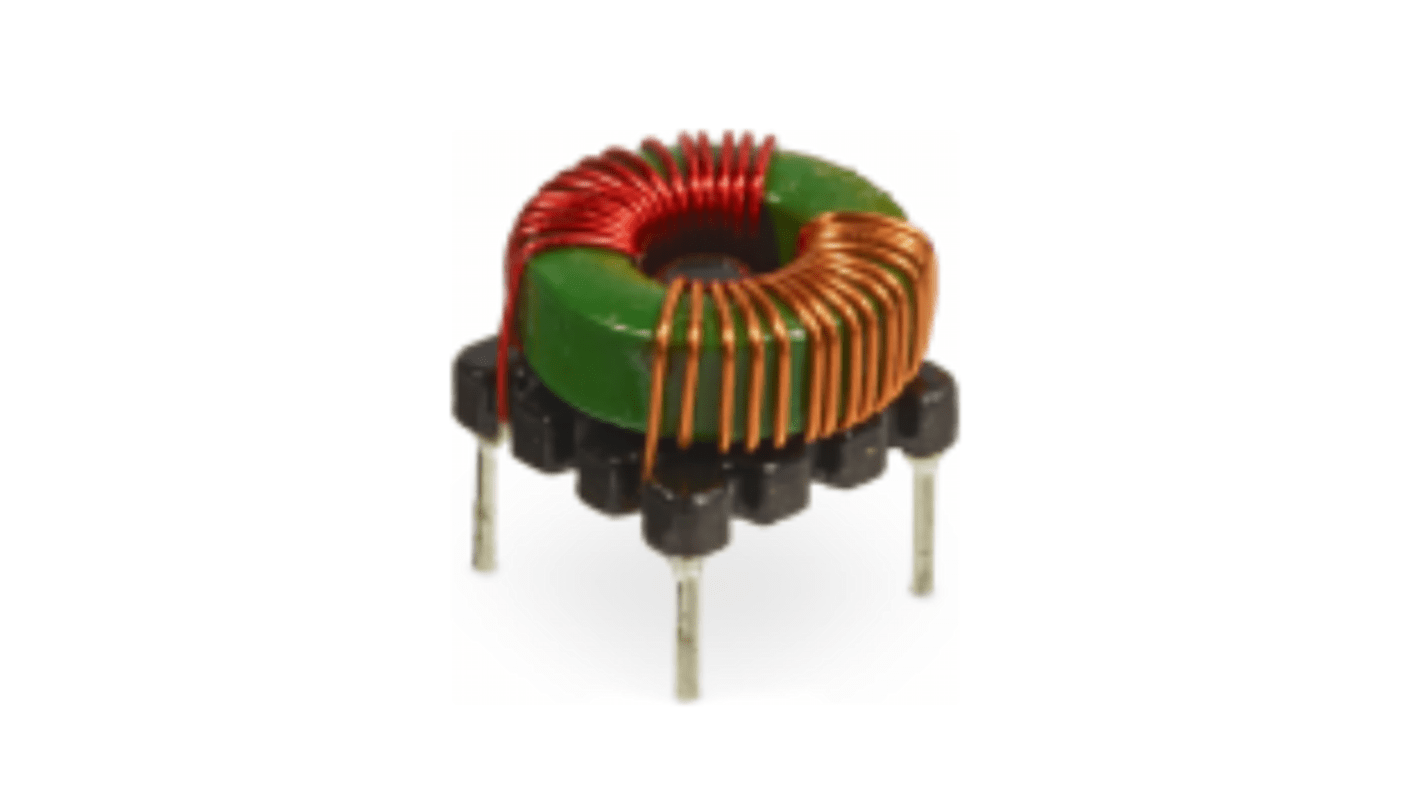

TRACOPOWER 145 μH 5.2 A Common Mode Choke 20 mΩ 500V dc
- RS庫存編號:
- 249-6692
- 製造零件編號:
- TCK-051
- 製造商:
- TRACOPOWER
小計（27 件, 每管27個）*
TWD3,698.00
(不含稅)
TWD3,882.90
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 1 件從 2026年10月05日 起發貨
- 加上 3 件從 2026年10月15日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
管 | 每管 | 每單位* |
|---|---|---|
| 1 + | TWD3,698.00 | TWD136.963 |
* 參考價格
- RS庫存編號:
- 249-6692
- 製造零件編號:
- TCK-051
- 製造商:
- TRACOPOWER
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TRACOPOWER | |
| Inductance | 145μH | |
| Product Type | Common Mode Choke | |
| Series | TCK | |
| Maximum DC Current | 5.2A | |
| Impedance | 20mΩ | |
| Test Frequency | 100kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Automotive Standard | No | |
| Choke Voltage | 500V dc | |
| Inductance Tolerance | ±35 % | |
| Standards/Approvals | No | |
| Maximum DC Resistance | 20mΩ | |
| Length | 11.5mm | |
| Height | 11.3mm | |
| 選取全部 | ||
|---|---|---|
品牌 TRACOPOWER | ||
Inductance 145μH | ||
Product Type Common Mode Choke | ||
Series TCK | ||
Maximum DC Current 5.2A | ||
Impedance 20mΩ | ||
Test Frequency 100kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Automotive Standard No | ||
Choke Voltage 500V dc | ||
Inductance Tolerance ±35 % | ||
Standards/Approvals No | ||
Maximum DC Resistance 20mΩ | ||
Length 11.5mm | ||
Height 11.3mm | ||
豁免
- COO (Country of Origin):
- TW
The TRACOPOWER TCK-051 is a common mode choke for use with Traco isolated DC-DC converters.
Inductance (each winding) 145 μH ±35% (at 100 kHz / 100 mV)
Impedance (DCR) 20 mOhm max
Rated current 5.2 A max
Rated voltage 500 VDC max (between windings)
Operating temperature -40°C to +105°C
