Souriau Sunbank by Eaton, UTGSize 12 Straight Circular Connector Backshell Strain Relief
- RS庫存編號:
- 220-7045
- Distrelec 貨號:
- 144-63-014
- 製造零件編號:
- UTG12AC
- 製造商:
- Souriau Sunbank by Eaton
可享批量折扣
小計（1 件）*
TWD214.00
(不含稅)
TWD224.70
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 1,318 件從 2026年2月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 14 | TWD214.00 |
| 15 - 49 | TWD186.00 |
| 50 - 99 | TWD181.00 |
| 100 - 249 | TWD176.00 |
| 250 + | TWD172.00 |
* 參考價格
- RS庫存編號:
- 220-7045
- Distrelec 貨號:
- 144-63-014
- 製造零件編號:
- UTG12AC
- 製造商:
- Souriau Sunbank by Eaton
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Souriau Sunbank by Eaton | |
| Product Type | Circular Connector Backshell | |
| Shell Size | 12 | |
| Orientation | Straight | |
| Gender | Female | |
| Housing Material | Plastic | |
| Colour | Black | |
| Length | 40mm | |
| Strain Relief | Yes | |
| Series | UTG | |
| Standards/Approvals | No | |
| 選取全部 | ||
|---|---|---|
品牌 Souriau Sunbank by Eaton | ||
Product Type Circular Connector Backshell | ||
Shell Size 12 | ||
Orientation Straight | ||
Gender Female | ||
Housing Material Plastic | ||
Colour Black | ||
Length 40mm | ||
Strain Relief Yes | ||
Series UTG | ||
Standards/Approvals No | ||
Souriau Connector Backshell

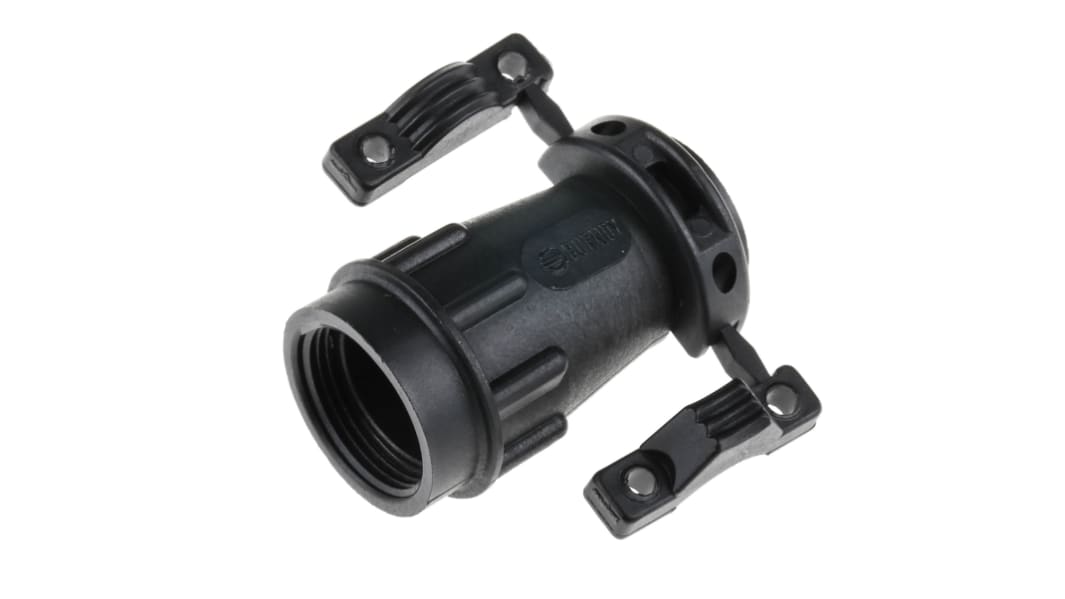

The Souriau UTG series connector backshell has shell size of 12. This is a plastic standard connector cable clamp with strain relief. It offers protection with screw cable clamping and a neoprene sealing gland insert which is pre-split in decreasing circular gradients. The length of the cable clamp is 40mm.
Sealok - Plastic
Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. Ideal for industrial application. These connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. It is available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. It is available in standard shell sizes. Two styles of backshell are also offered.
Features and Benefits
500 mating cycles
Operating temperature ranges between 40°C and 105°C
Resistance to shock and vibration
Clamping range between 3mm and 12.8mm
Applications
Commercial applications
Military
