- RS庫存編號:
- 399-4829
- 製造零件編號:
- 18492
- 製造商:
- LAG
N

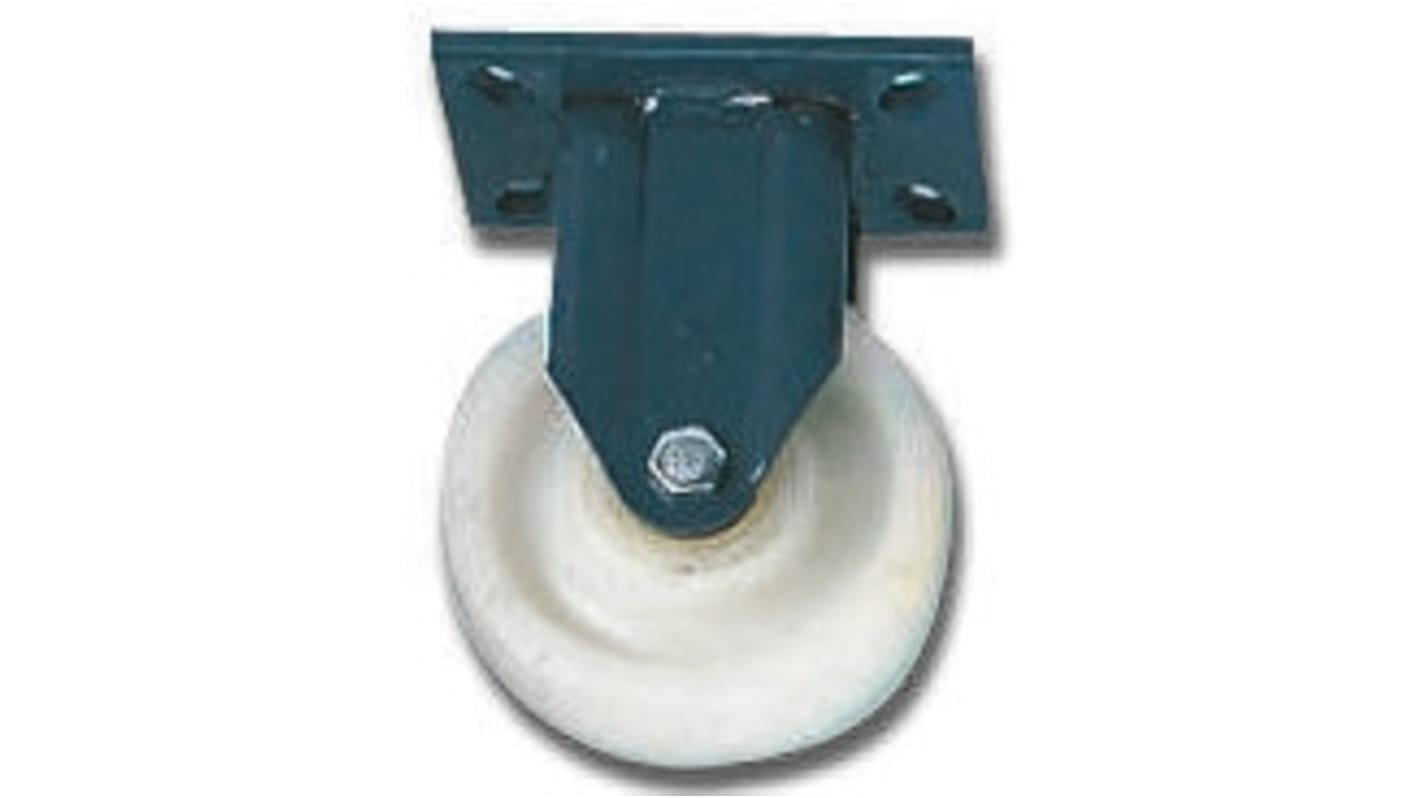

此圖片僅供參考,請參閲產品詳細資訊及規格
查看所有Castor Wheels
4 現貨庫存,可於6工作日發貨。
單價(不含稅) 個
TWD2,061.00
(不含稅)
TWD2,164.05
(含稅)
單位 | Per unit |
1 - 5 | TWD2,061.00 |
6 - 11 | TWD1,959.00 |
12 + | TWD1,936.00 |
- RS庫存編號:
- 399-4829
- 製造零件編號:
- 18492
- 製造商:
- LAG
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊
Nylon Polyamide Wheel, Extra Heavy Duty, Series E70
Heavy gauge pressed steel bracket and top plate
Easy running under very heavy load capacity
Swivel type have a taper roller bearing and single thrust bearings with groove nipple and hard seal
Wheel series P
Easy running under very heavy load capacity
Swivel type have a taper roller bearing and single thrust bearings with groove nipple and hard seal
Wheel series P
Hard Tread - Polyamide / Nylon Wheel
Hard tread wheels are the easiest to push and offer the easiest movement and mobility. Solid Nylon is a floor-friendly alternative to cast iron, which is unaffected by water and has a load capacity approaching that of cast iron. Solid Nylon wheels are the most popular choice as they will not damage solid compacted floors such as cement or tile etc and have good load carrying capacity. Nylon wheels are used widely in food processing areas.
規格
屬性 | 值 |
---|---|
Wheel Diameter | 200mm |
Load Capacity | 1000kg |
Overall Height | 251mm |
Rotation | Fixed |
Wheel Width | 50mm |
Fixing Plate Dimensions | 135 x 110mm |
Tyre Material | Polyamide |
Includes Brake | No |
Fixing Centres | 105 x 80mm |
Weight Class | Heavy Duty |
Number of Fixing Holes | 4 |
Hub Material | Polyamide |
Hub Bearing Type | Ball Bearing |
Fixing Hole Size | 12mm |
