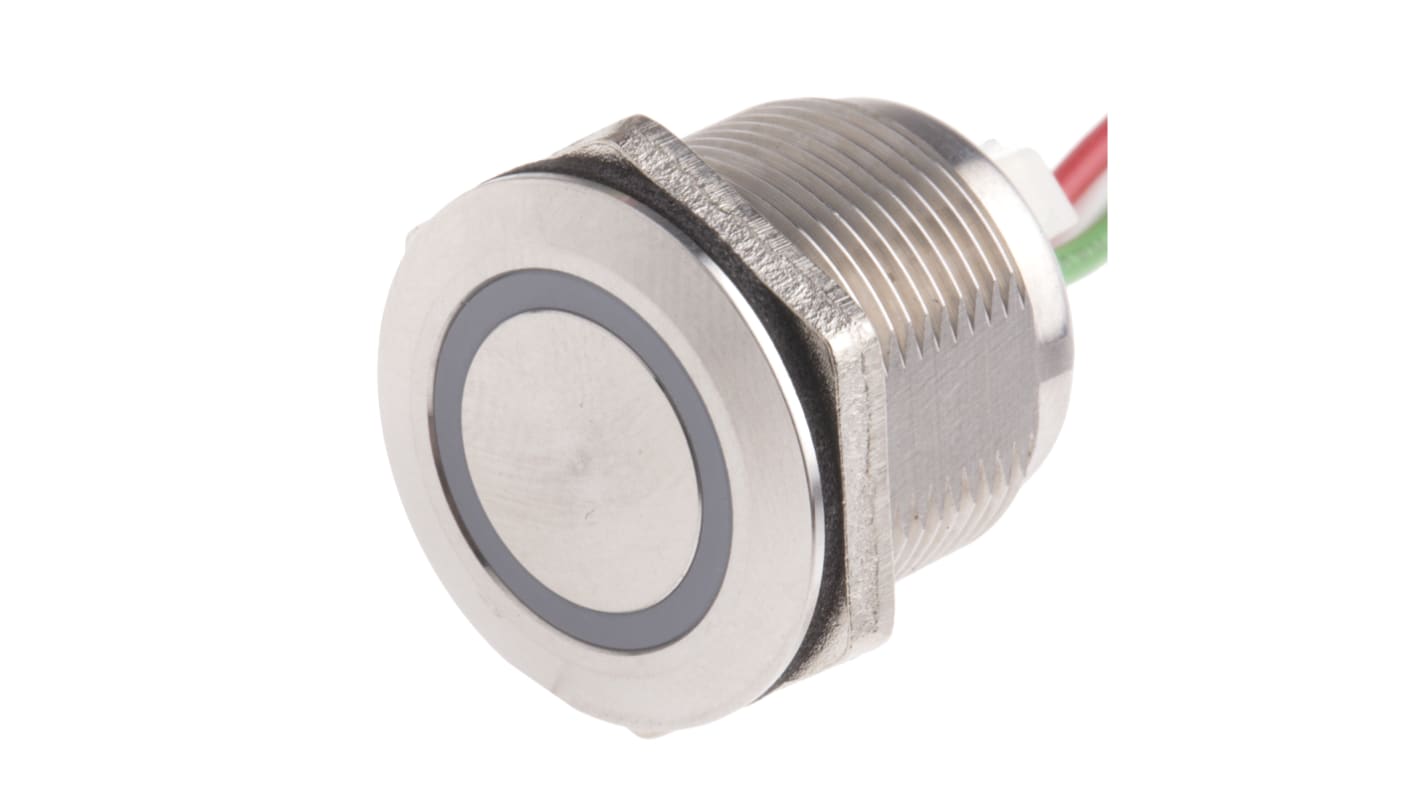

RS PRO Capacitive switch Momentary NO Illuminated, Blue, IP68 Brass
- RS庫存編號:
- 823-2750P
- 製造商:
- RS PRO
此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
- RS庫存編號:
- 823-2750P
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Switch Operation | Momentary | |
| Product Type | Capacitive switch | |
| Switch Type | Capacitive | |
| Switch Function | NO | |
| LED Colour | Blue | |
| Housing Material | Polycarbonate | |
| Illuminated | Yes | |
| Maximum Input Voltage | 30V dc | |
| Housing Colour | Metallic | |
| Minimum Input Voltage | 5V dc | |
| Actuator Colour | Metallic | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Brass | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Depth | 20mm | |
| Height | 20mm | |
| Width | 20mm | |
| Current Rating | 1.5A | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Switch Operation Momentary | ||
Product Type Capacitive switch | ||
Switch Type Capacitive | ||
Switch Function NO | ||
LED Colour Blue | ||
Housing Material Polycarbonate | ||
Illuminated Yes | ||
Maximum Input Voltage 30V dc | ||
Housing Colour Metallic | ||
Minimum Input Voltage 5V dc | ||
Actuator Colour Metallic | ||
IP Rating IP68 | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Depth 20mm | ||
Height 20mm | ||
Width 20mm | ||
Current Rating 1.5A | ||
- COO (Country of Origin):
- TW
RS PRO Capacitive Switches – 19 mm
Raise your switch game with these RS PRO capacitive switches. They have several advantages over traditional mechanical switches offering reliable and durable operation plus they are more resistant to environmental factors such as moisture and dirt, making them ideal for use in harsh environments. During application, they detect even the slightest touch, perfect for food and medical industry as a gloved hand will activate the switch. Our capacitive switches are available in various colours and illumination options simple browse, and filter to reach your switch of choice.
Features and Benefits
Specification
Applications
