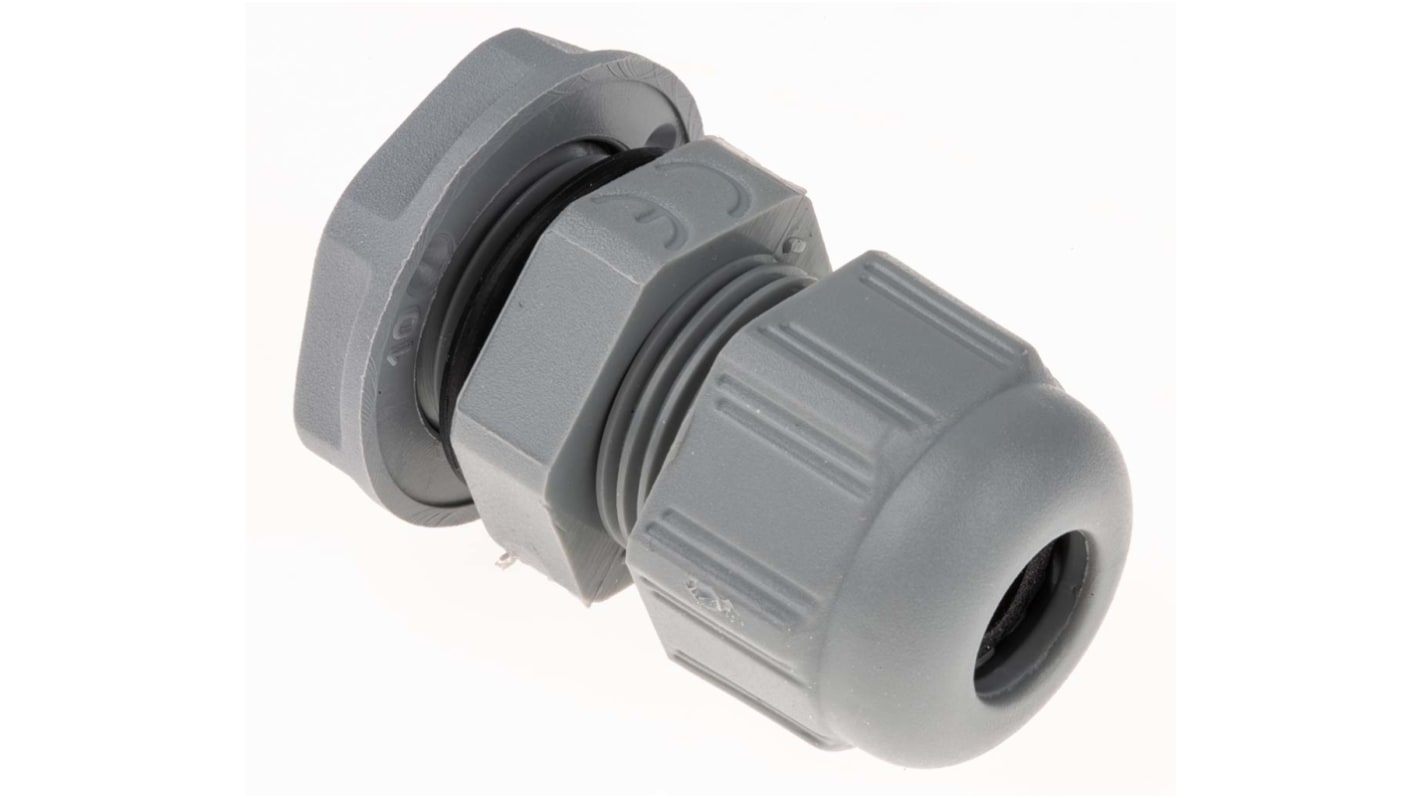

    Legrand Grey Polyamide Cable Gland, PG9 Thread, 4mm Min, 8mm Max, IP68

    RS庫存編號:
    521-059
    製造零件編號:
    0 980 21
    製造商:
    Legrand
    Legrand
    查看所有Cable Glands
    1 在6 工作日內發貨 (海外庫存)
    36 在6 工作日內發貨 (海外庫存)
    Add to Basket
    Box(es)

    已增加

    單價(不含稅) 毎盒:25 個

    原價 TWD2,411.00

    您付款

    TWD2,170.00

    (不含稅)

    TWD2,278.50

    (含稅)

    Box(es)Per BoxPer unit*
    1 - 4TWD2,170.00TWD86.80
    5 - 9TWD2,083.00TWD83.32
    10 +TWD1,997.00TWD79.88
    * 參考價格
    RS庫存編號:
    521-059
    製造零件編號:
    0 980 21
    製造商:
    Legrand

    不適用

    COO (Country of Origin):
    FR

    產品概覽和技術數據資料表


    法例與合規

    不適用

    COO (Country of Origin):
    FR

    產品詳細資訊

    Legrand Cable Gland


    The Legrand grey cable gland has a thread size of PG 9 and maximum clamping capacity of 8mm. This gland anti-vibration mechanically tightened cable gland comes with a neoprene O-ring seal. The cable gland has locking section with flexible blades that exert strong pressure on the cable providing excellent tensile strength. It has a housing made of halogen-free polyamide material.

    Features and Benefits


    Supplied with surface seal and locking nut mounted
    Operating temperature ranges between -20°C and 80°C
    Self-extinguishing
    Weather proof

    Certifications


    IP68 rated
    VDE - 40023632 approved
    OC / CB - 585402E/A2
    OC / CB - 585402C/A2
    NF - 618861D
    UL 94-V2 approved


    規格

    屬性
    Thread SizePG9
    Maximum Cable Diameter8mm
    Minimum Cable Diameter4mm
    MaterialPolyamide
    ColourGrey
    IP RatingIP68
    Locknut IncludedYes
    Fire BehaviourSelf-extinguishing
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature+80°C
    Standards MetUL 94 V-2
    Operating Temperature Range-20 → +80 °C
