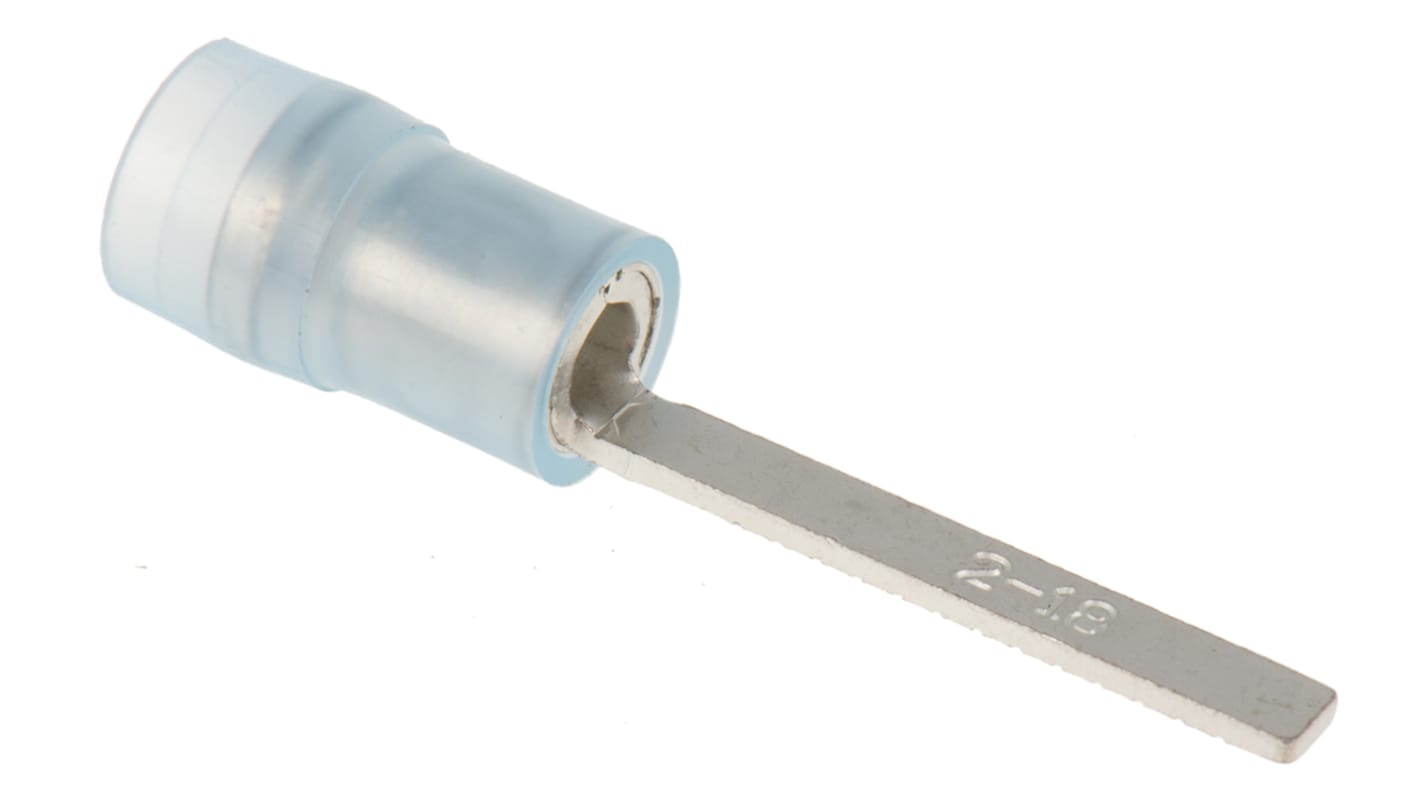

RS PRO Insulated Crimp Blade Terminal 18 mm Blade Length, 16 AWG to 14 AWG, Blue
- RS庫存編號:
- 267-4502
- 製造商:
- RS PRO
可享批量折扣
查看批量定價選項小計（100 件, 每袋100個）*
TWD600.00
(不含稅)
TWD630.00
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 9,800 件從 2026年10月05日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 100 - 900 | TWD6.00 | TWD600.00 |
| 1000 - 2400 | TWD5.90 | TWD590.00 |
| 2500 - 4900 | TWD5.70 | TWD570.00 |
| 5000 - 24900 | TWD5.60 | TWD560.00 |
| 25000 + | TWD4.60 | TWD460.00 |
* 參考價格
- RS庫存編號:
- 267-4502
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Crimp Blade Terminal | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Minimum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Overall Length | 28.8mm | |
| Maximum Wire Size AWG | 14AWG | |
| Blade Length | 18mm | |
| Blade Width | 2.2mm | |
| Blade Thickness | 0.8mm | |
| Inside Diameter | 5.2mm | |
| Hooked | No | |
| Colour | Blue | |
| Standards/Approvals | No | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Crimp Blade Terminal | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Minimum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Overall Length 28.8mm | ||
Maximum Wire Size AWG 14AWG | ||
Blade Length 18mm | ||
Blade Width 2.2mm | ||
Blade Thickness 0.8mm | ||
Inside Diameter 5.2mm | ||
Hooked No | ||
Colour Blue | ||
Standards/Approvals No | ||
Contact Plating Tin | ||
Contact Material Copper | ||
- COO (Country of Origin):
- TW
Small Pack Size
Per Unit, RS stock no: 267-4502
Large Pack Size
RS stock no: 270-7463
RS PRO Insulated Double Crimp Blade Terminals
RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.
Features & Benefits
Hook Blade Colour Code
Note
Size quoted is blade length
Approvals
UL Listed; UL Listed for Canada
Note
Size quoted is blade length.
Approvals
UL Listed; UL Listed for Canada
